External Audio Source Connection -R199-, Inside Instrument Panel

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Removal

-- Switch off ignition, switch off all electrical consumers and remove ignition key.

-- Pry the connector mount -2- out of the switch unit -3- using the 3409.

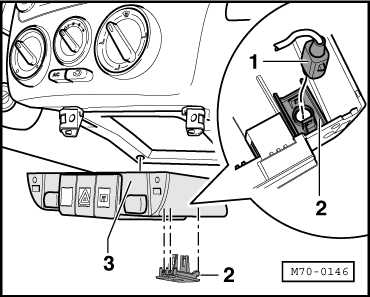

Fig 1: Prying Off Audio Input Jack From Bracket

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry the external audio source connection -1- out of the connector mount -2-.

If it is not possible to remove the socket mount -2-, then remove the switch unit first -3-. Refer to Removal and Installation .

Installation

Installation is performed in the reverse order of removal.
