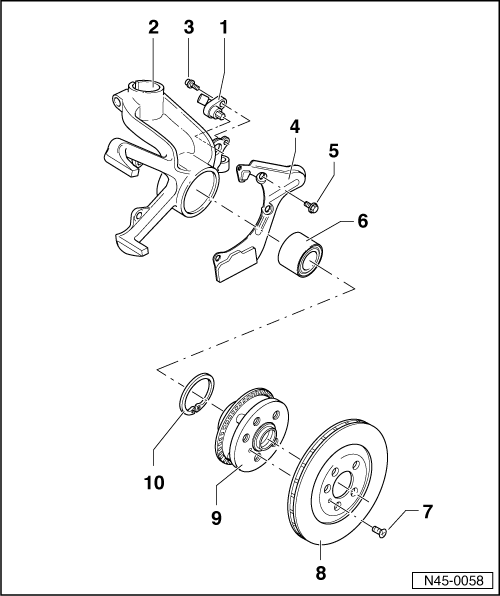

Front Axle Abs Component Overview
NOTE:
Removing and installing parts of the ABS system is the same for brake calipers FS III and FN3.
- Right front ABS wheel speed sensor -G45- /left front ABS wheel speed sensor -G47-
- Before inserting sensor, clean inner surface of hole and coat with securing grease G 000 650
- Wheel bearing housing
- Socket head bolt, 8 Nm
- Cover plate
- Hex bolt, 10 Nm
- Wheel bearing
- Always replace after removal
- Removing and installing Removal and Installation
- Phillips-head screw
- Brake Rotor
- Wheel hub with rotor
- Removing and installing Removal and Installation
- Locking Ring
