Side Window Assembly Overview

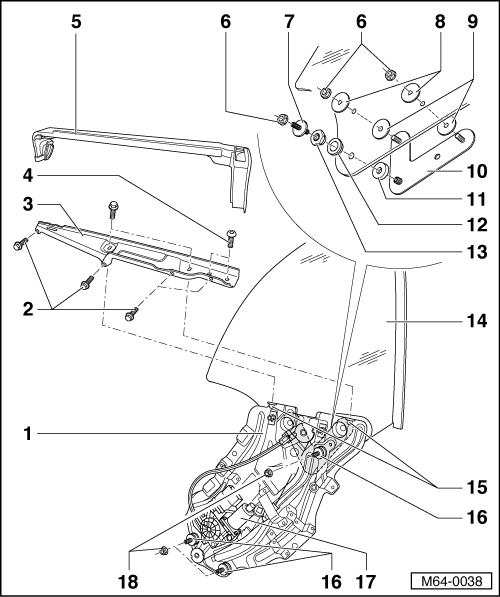

Fig 1: Identifying Side Windows, Assembly Overview
GWWM64-0038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Carrier plate with window regulator motor
  2. Hex head bolt
    • 10 Nm
  3. Door window retaining plate
  4. Torx bolt
    • 10 Nm
  5. Outer window shaft seal
    • Installed on the flange
  6. Combination nut
  7. Adjuster
  8. Washer
  9. Spacer plate
  10. Bracket for side window
  11. Spacer plate
  12. Spacer plate
  13. Nut
  14. Side window
  15. Clamping nut
  16. Adjuster for side inclination
  17. Window regulator motor
  18. Combination nut
    • 20 Nm
