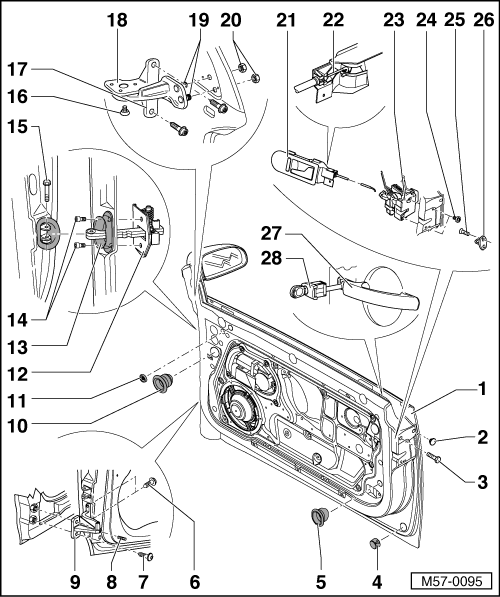

Front Door Assembly Overview, Convertible
NOTE:
Always replace door hinge bolts (except -6- and -16-) and pin -19- after loosening.
- Door
- Removing and Installing, refer to FRONT DOOR, CONVERTIBLE
- Cover
- Bolt
- 20 Nm
- Insert with locking fluid D 185 400 A2
- Buffer
- Grommet
- Bolt
- 20 Nm + 1 /4 additional turn (90 °)
- Always replace bolts after loosening them
- Bolt
- 20 Nm + 1 /4 additional turn (90 °)
- Always replace bolts after loosening them
- Threaded pin
- 13 Nm
- Door hinge
- The hinge has two sections.
- Grommet
- Grommet
- Door arrester
- Cover
- Bolt
- 10 Nm
- Bolts
- 4.5 Nm
- Bolt
- 20 Nm + 1 /4 additional turn (90 °)
- Always replace bolts after loosening them
- Loosen with special tools 3320 and 3220/2 and tighten
- Bolt
- 27 Nm
- Door hinge
- The hinge has two sections.
- Bolts
- Always replace pins after loosening
- Nut
- 20 Nm + 1 /4 additional turn (90 °)
- Always replace door hinge pins after loosening
- Interior door mechanism
- Release cable
- Door lock
- Removing and Installing, refer to DOOR LOCK, CONVERTIBLE
- Bolt
- 20 Nm
- Insert with locking fluid D 185 400 A2
- Bolt
- End panel
- Door handle with backing plate
- Removing and Installing, refer to DOOR HANDLE
- Door lock cylinder
