Engine Code

Engines are identified by a 3-letter code stamped on the engine. For engine code locations, see Fig 1-Fig 4 . Engine codes are also located on the vehicle data plate.

NOTE: Engine number for 1.8L turbo can be found on mating flange between engine and transmission. Additionally there is a sticker on cylinder head (valve) cover with engine code and serial number.

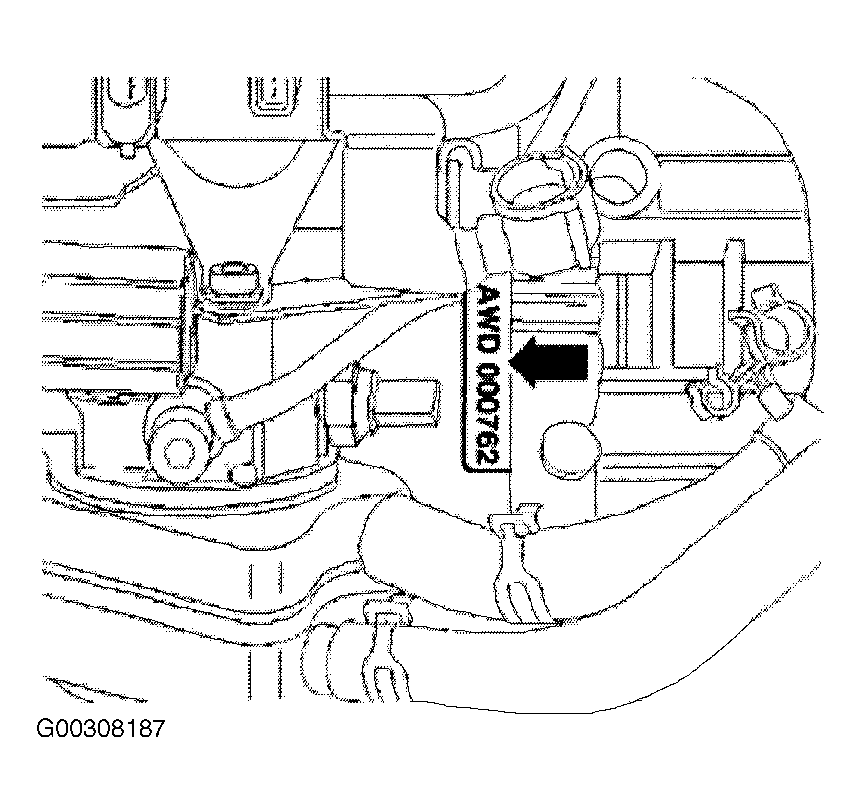

Fig 1: Locating Engine Identification Code (1.8L - AWD Shown, AWP & AWV Similar)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Engine code for 1.9L TDI is located between diesel injection pump and exhaust manifold, on engine block. Additionally there is a sticker on the timing belt guard containing engine code and serial number. Engine code is also included on vehicle data plate.

Fig 2: Locating Engine Identification Code (1.9L TDI - ALH)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

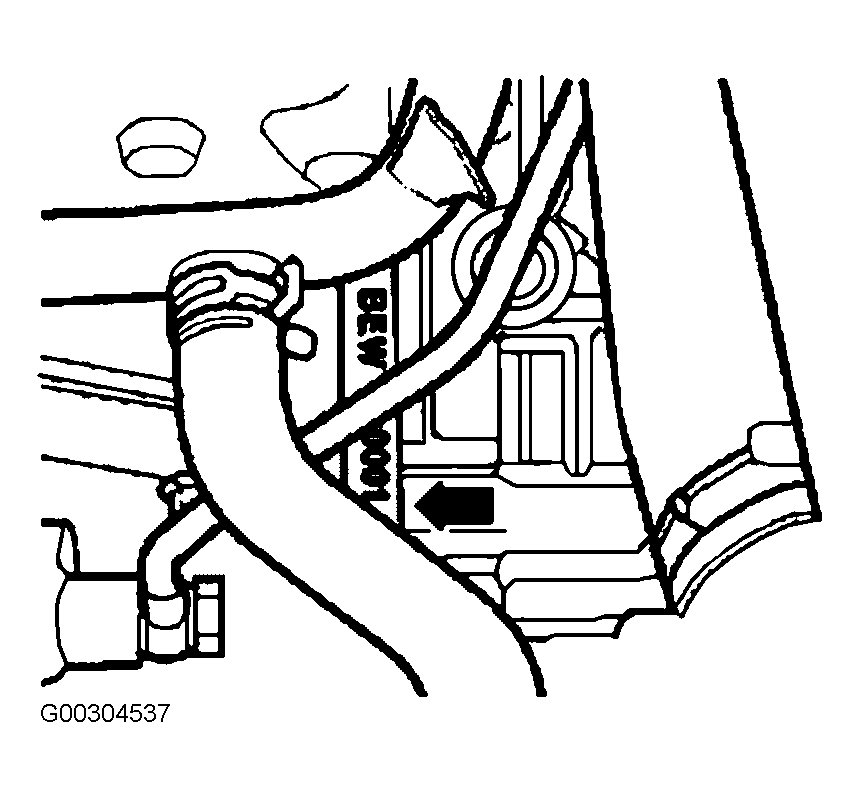

Fig 3: Locating Engine Identification Code (1.9L TDI - BEW)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: Engine code and serial number for 2.0L is located can be found on flange between engine/transmission. Additionally there is a sticker on the timing belt guard containing engine code and serial number. Engine code is also included on vehicle data plate.

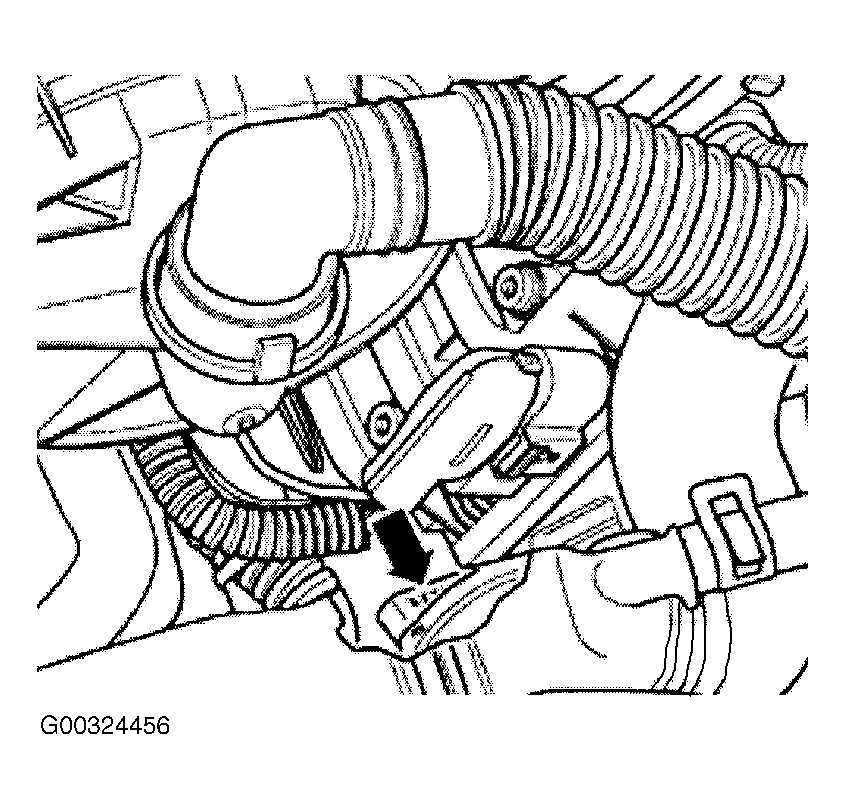

Fig 4: Locating Engine Identification Code (2.0L - BEV & BGD)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
