Electronic Power Control (EPC)

Electronic Power Control (EPC)
Engine codes AVH, AZG, BDC, BEV, BGD

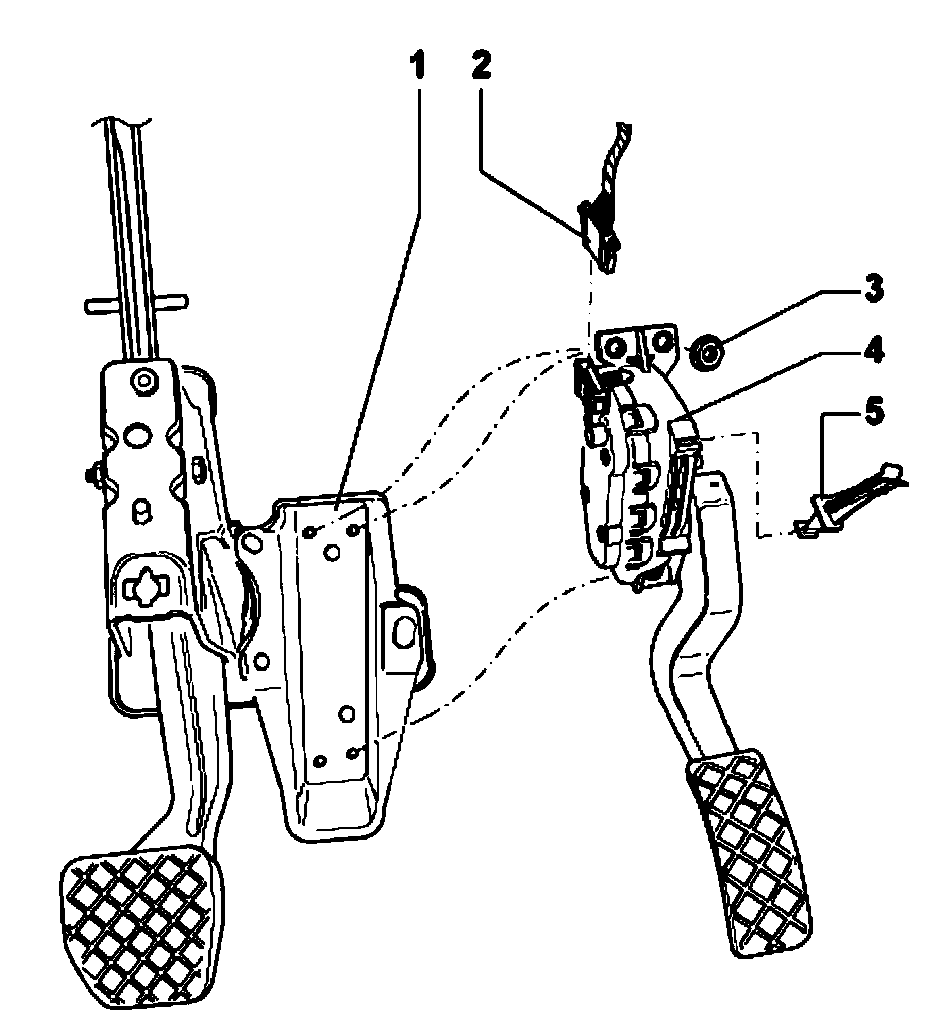

1. Mounting
2. Connector
^ Black, 6-pin
3. 10 Nm
4. Throttle Position (TP) sensor -G79- and Sender -2- for accelerator pedal position -G185-
^ On replacement, for models with automatic transmission, an adaptation must be performed
^ When removing remove instrument panel/pedal cluster cover
5. Retainer
^ For footwell cover
^ Clipped onto accelerator pedal
