Body Control Module

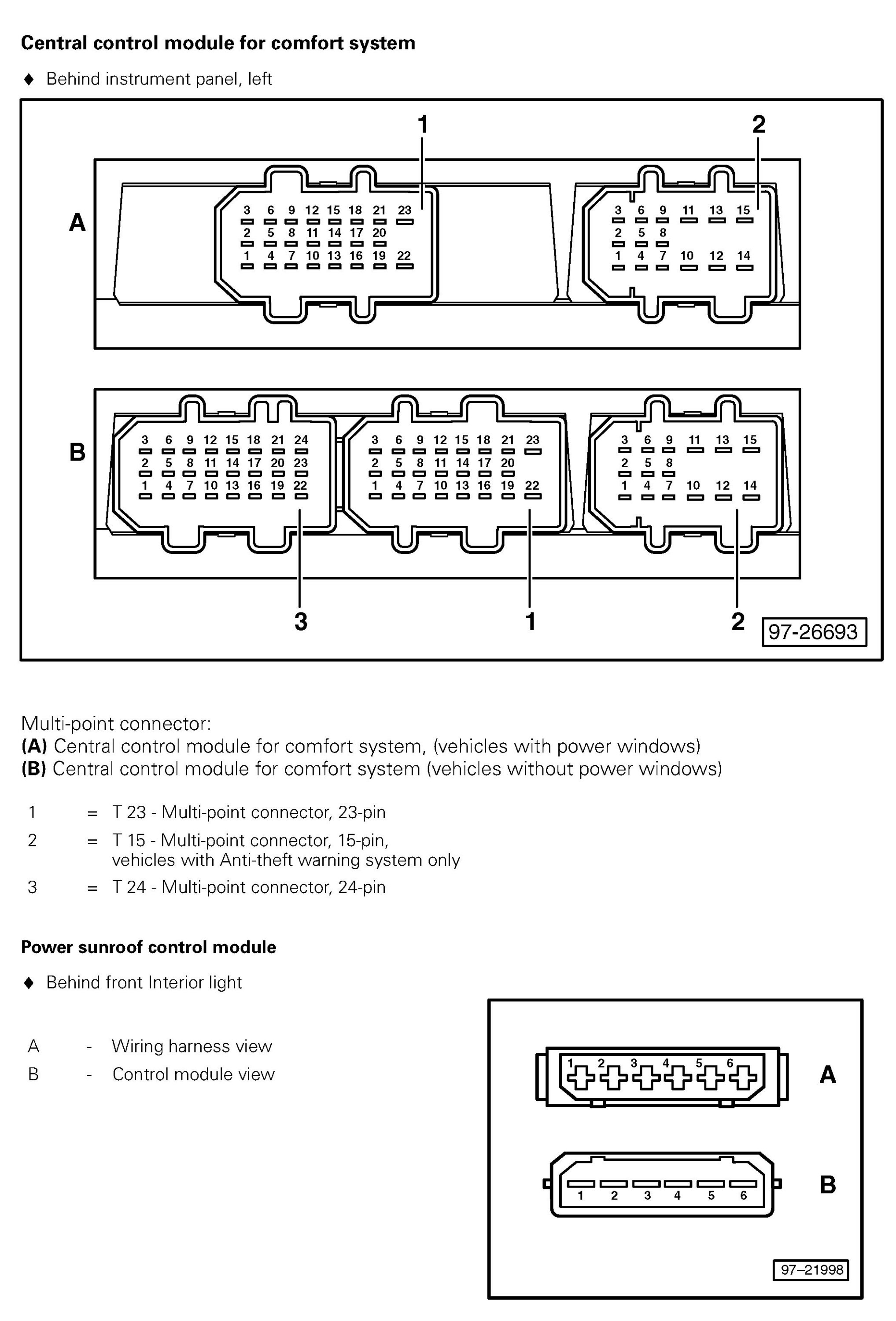

Central Control Module For Comfort System; Power Sunroof Control Module:
Control Modules - Connector Pin-out
