Engine, disassembling and assembling: Notes
Balance shafts, disassembling and assembling, disassembling and assembling → Balance shaft, disassembling and assembling
Components of crankcase ventilation system, disassembling and assembling → Crankcase ventilation system components, disassembling and assembling
Removing and installing ribbed belt → Ribbed belt, removing and installing
Toothed belt drive for balance shafts, removing, installing and adjusting → Toothed belt drive for balancing shafts, removing, installing, and adjusting
- The engine must not be set down on the oil pan otherwise the liquid gasket between the upper and lower oil pan will be damaged. Use Frame T10116 to hold engine
- Secure engine in Engine and Transmission Holder VAS 6095 when working on engine.

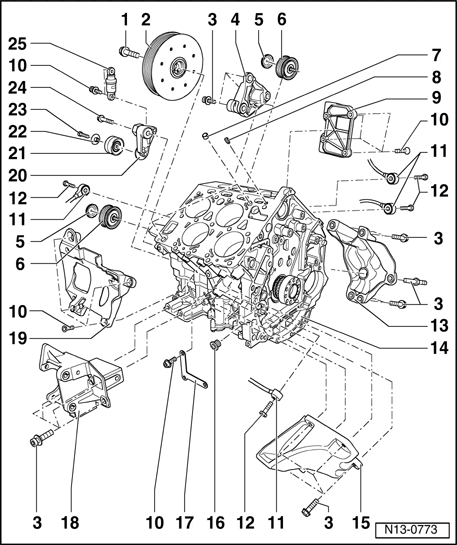

1 - 100 Nm plus an additional 1 / 4 turn (90 ° )
- Always replace
- Use Counter-Holder Tool T10069 to loosen and tighten To loosen and tighten securing bolt, hold vibration damper with Counter-Holder Tool T10069
- Fasten with Torque Wrench V.A.G 1601
2 - Vibration damper
- Removing and installing ribbed belt → Ribbed belt, removing and installing
3 - 45 Nm
4 - Torque bracket
- Front engine mount → Front engine mount
5 - Cover cap
6 - Idler roller, 30 Nm
7 - Dowel Sleeve
- Note installed position → Cylinder head (cylinder banks 1 and 2), removing and installing
8 - Oil non-return valve, 6 Nm
- Note installation position
- Clean if badly soiled
9 - Bracket
- For generator
10 - 25 Nm
11 - Knock Sensors
12 - 20 Nm
- Tightening torque influences the function of the Knock Sensor
13 - Right engine bracket
- Torque specifications for the engine mounts Torque specifications for left and right engine holder
14 - Aluminum cylinder block
- Sealing flange and dual-mass flywheel/drive plate, disassembling and assembling → Sealing flange and dual-mass flywheel/drive plate, disassembling and assembling
15 - Left engine bracket
- Torque specifications for the engine mounts Torque specifications for left and right engine holder
16 - Sealing plug, 30 Nm
17 - Retainer
- For wiring harness
18 - Bracket
- For power steering pump
19 - Bracket
- For air conditioner compressor
20 - Tensioning element
- For ribbed belt
- Removing and installing ribbed belt → Ribbed belt, removing and installing
21 - Tensioning roller
22 - Washer
23 - 20 Nm
24 - 30 Nm plus an additional 1 / 4 turn (90 ° )
25 - Tensioning element
