Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module (1.8L) | On left front of engine compartment. See Figure. |
| ABS Control Module (2.8L) | On left front of engine compartment. |
| ABS Control Module (4.0L) | On left front of engine compartment. |

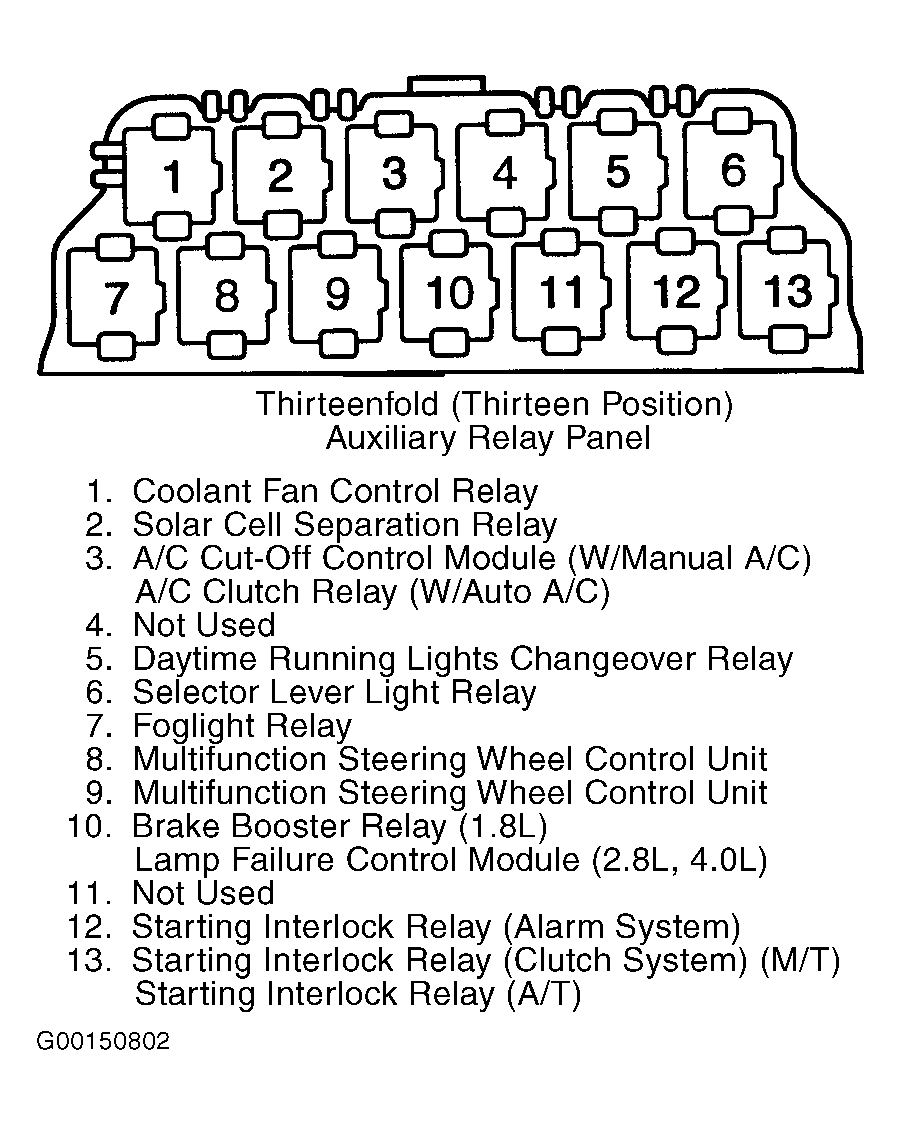

| A/C Cut-Off Control Module (W/Manual A/C) | On thirteenfold (thirteen position) auxiliary relay panel. See Figure. |
| Air Bag Control Module | Mounted on floor in front of center console, near ventilation ducts. See Figure. |
| Antenna Selection Control Module | Under center of rear speaker shelf. |
| Climatronic Control Module | In center console, below radio. |
| Comfort System Central Control Module | Mounted on floorpan in protective box, under driver's seat & carpet. See Figure. |
| Coolant Fan Control Module (1.8L) | On left front framerail, near vacuum reservoir. |
| Coolant Fan Control Module (2.8L) | On left front framerail, near vacuum reservoir. |
| Coolant Fan Control Module (4.0L) | Between right & left cooling fans. |
| Door Control Module (Driver's Side) | Part of power window assembly, in driver's door. See Figure. |
| Door Control Module (Left Rear) | Part of power window motor assembly, in left rear door. |
| Door Control Module (Passenger's Side) | Part of power window motor assembly, in passenger's front door. |
| Door Control Module (Right Rear) | Part of power window motor assembly, in right rear door. |
| Fresh Air Blower Control Module | Integral to fresh air blower, under right side of dash. |
| Fuel Pump Control Module | In luggage compartment, under spare tire. |
| Lamp Failure Control Module (2.8L) | On thirteenfold (thirteen position) auxiliary relay panel. See Figure. |
| Lamp Failure Control Module (4.0L) | On thirteenfold (thirteen position) auxiliary relay panel. See Figure. |

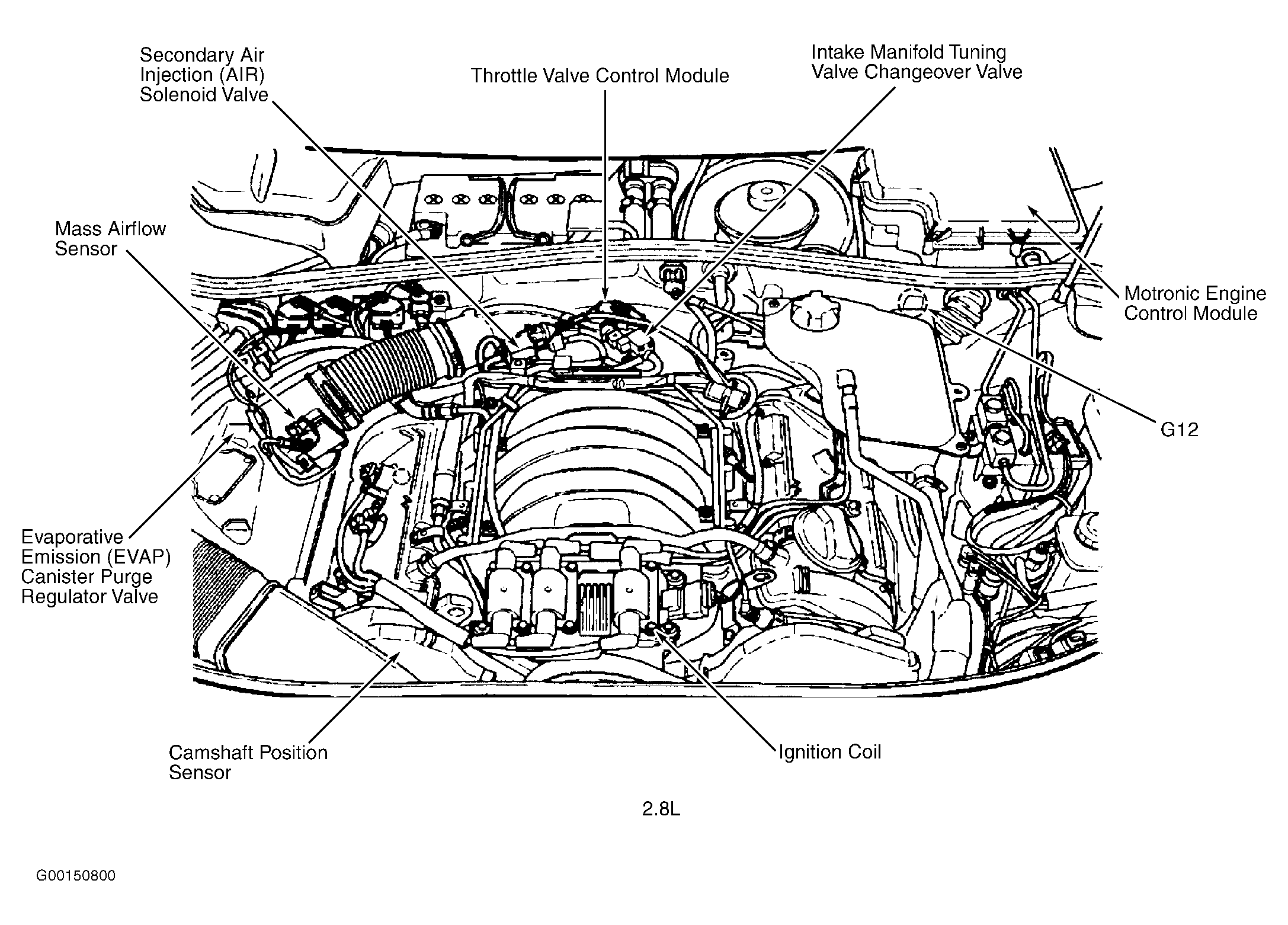

| Motronic Engine Control Module (ECM) (1.8L) | In protective box, in left rear corner of engine compartment. See Figure. |
| Motronic Engine Control Module (2.8L) | In protective box, in left rear corner of engine compartment. See Figure. |
| Motronic Engine Control Module (4.0L) | In protective box, in left rear corner of engine compartment. |
| Multifunction Steering Wheel Control Unit (2) | On thirteenfold (thirteen position) auxiliary relay panel. See Figure. |
| Throttle Valve Control Module (1.8L) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.8L) | On throttle body, on rear of intake manifold. See Figure. |
| Throttle Valve Control Module (4.0L) | On throttle body, on rear of intake manifold. |
| Transmission Control Module | On passenger's side floor cavity. |
