Fastener Tightening Specifications

Components

Bolt Size

Hydraulic Line to Transmission

Transmission Oil Fill Plug ⁽¹⁾

⁽¹⁾	Always replace

Transmission to Engine Bolt Tightening Specifications

Fig 1: Identifying Transmission Bolts (4-Cyl. Engine)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Items A and B + dowel sleeves

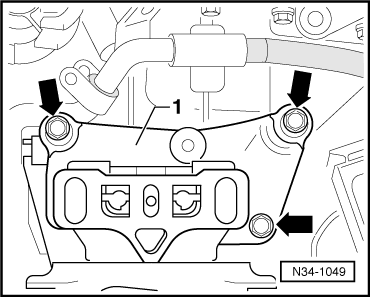

Transmission Mount Bracket -1- to Transmission Bolt Tightening Specification

Fig 2: Transmission Left Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace bolts -arrows-

Bolts -arrows- : 50 Nm + 90° (1/4 turn)

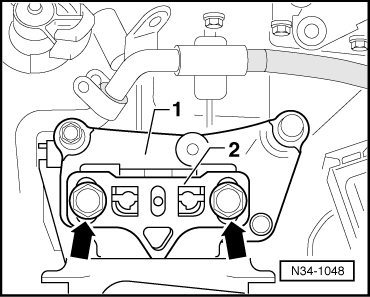

Transmission Mount to Transmission Mount Bracket Bolt Tightening Specification

Fig 3: Left Assembly Mounting Hex Bolts & Left Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolts -arrows- : 100 Nm

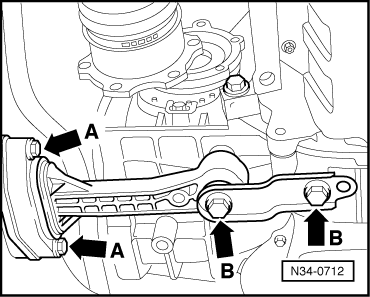

Pendulum Support Bolt Tightening Specification

Fig 4: Identifying Pendulum Support & Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace bolts

Bolts -A- : 20 Nm + 90° (1/4 turn)

Bolts -B- : 40 Nm + 90° (1/4 turn)
