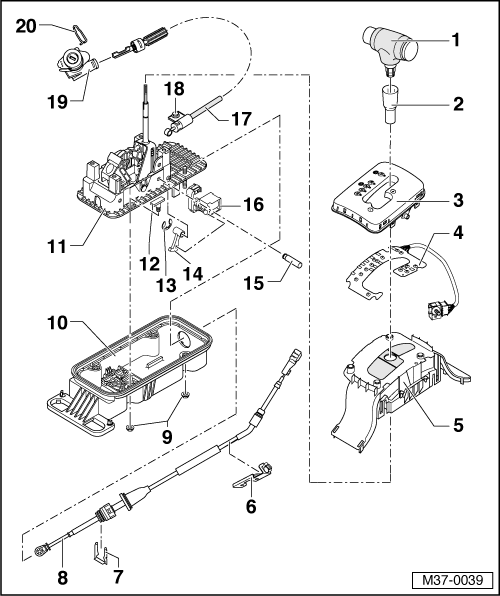

Selector Mechanism
NOTE:
Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2.
- Selector lever handle
- Removing and installing SELECTOR LEVER HANDLE
- Sleeve
- Engages in selector lever handle
- Locks removal of selector lever handle
- Cover
- With circuit board and frame
- Assembly overview SELECTOR MECHANISM COVER ASSEMBLY OVERVIEW
- Removing and installing SELECTOR MECHANISM COVER AND CIRCUIT BOARD
- Printed circuit board
- With integrated Tiptronic Switch - F189-
- Can be tested in "Guided Fault Finding" using Vehicle Diagnosis, Testing and Information system VAS 5051
- Removing and installing SELECTOR MECHANISM COVER AND CIRCUIT BOARD
- Frame
- With cover strips
- Assembly overview SELECTOR MECHANISM FRAME ASSEMBLY OVERVIEW
- Disassembling and assembling SELECTOR MECHANISM FRAME
- Bracket
- With clip for selector lever cable
- Locking plate
- For selector lever cable to selector mechanism housing
- Always replace
- Selector lever cable
- Do not bend or kink
- If protective sleeve is damaged, the selector lever cable must be replaced
- Checking and adjusting SELECTOR LEVER CABLE, CHECKING AND ADJUSTING
- Removing and installing SELECTOR LEVER CABLE
- Do not grease cable eyelet and ball socket
- Self-locking nut, 10 Nm
- For cover at selector mechanism housing
- 4x
- Always replace
- Cover
- For selector mechanism housing
- With bonded seal
- Selector mechanism housing
- Removing and installing SELECTOR MECHANISM
- Bolt
- Locking washer
- Pawl
- For shift lock solenoid
- Engages in cable lever of selector mechanism housing
- Pivot pin
- For pawl SELECTOR MECHANISM
- Shift Lock Solenoid -N110-
- Can be replaced with selector mechanism installed
- Removing and installing SHIFT LOCK SOLENOID
- Can be tested in "Guided Fault Finding" using Vehicle Diagnosis, Testing and Information system VAS 5051
- Locking cable
- For ignition key removal lock
- Must not be kinked
- Removing and installing LOCKING CABLE
- Adjusting LOCKING CABLE, ADJUSTING
- Ignition key removal lock, checking function IGNITION KEY REMOVAL LOCK, CHECKING FUNCTION .
- Bolt
- For locking cable on selector mechanism
- Tightening torque 10 Nm
- Steering lock
- Clip
- Installation position: Install clip from above. Angled ends of clip point toward steering lock.
