Service Interval Display: Notes

Function:

The Service Reminder Indicator electronics include:

A time counter
Two odometers

The electronics evaluate the contents of the counters, so that the consumer is either:

After a specific time span has run out.
After reaching a specific distance.

is requested to contact the dealership.

Via Service Reminder Indicator (SRI), that a service is required (whichever is due first).

Only the total distance driven and the daily distance driven is displayed in the speedometer -2- between services.

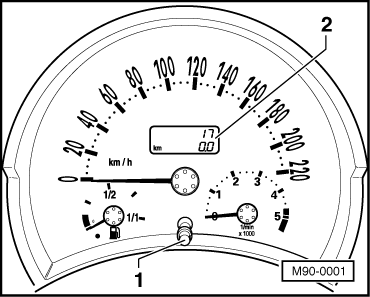

Fig 1: Identifying Adjustment Button For Odometer And Clock At Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

When a Service comes due, the type of service will blink in the speedometer after the ignition is turned on -2-. For the Service Tables, refer to SERVICE TABLE .

NOTE:

By pressing the reset button -1-, the display can be switched back to driven "daily distance."

The display switches back to the "daily distance driven" after 1 minute after the engine is started.
