Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | Left rear of engine compartment. |
| ABS Hydraulic Control Unit | On left side of engine compartment, beside vacuum brake booster. |
| Airbag Control Module | On center floor tunnel, below heater core housing. |
| Comfort System Central Control Module | Below left side of dash, left of steering column. |
| Convertible Top Control Module | On right side of luggage compartment. |
| Coolant Fan Control Control Module | On lower left front of engine compartment, to left of radiator. |
| Diesel Direct Fuel Injection Engine Control Module | Below left side of dash panel cover. |
| Door Control Module (Driver Side) | In driver's door, integral to window motor. |
| Door Control Module (Passenger Side) | In passenger's door, integral to window motor. |

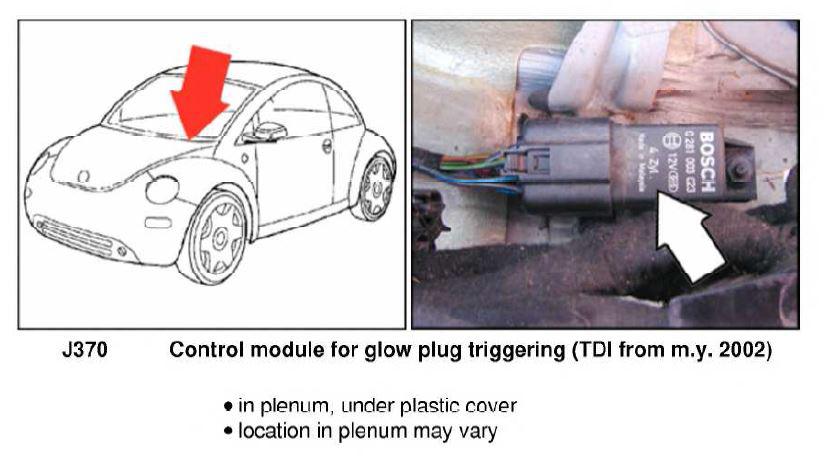

| Glow Plug triggering Control Module (1.9L) | In plenum, under plastic cover. See Figure. |

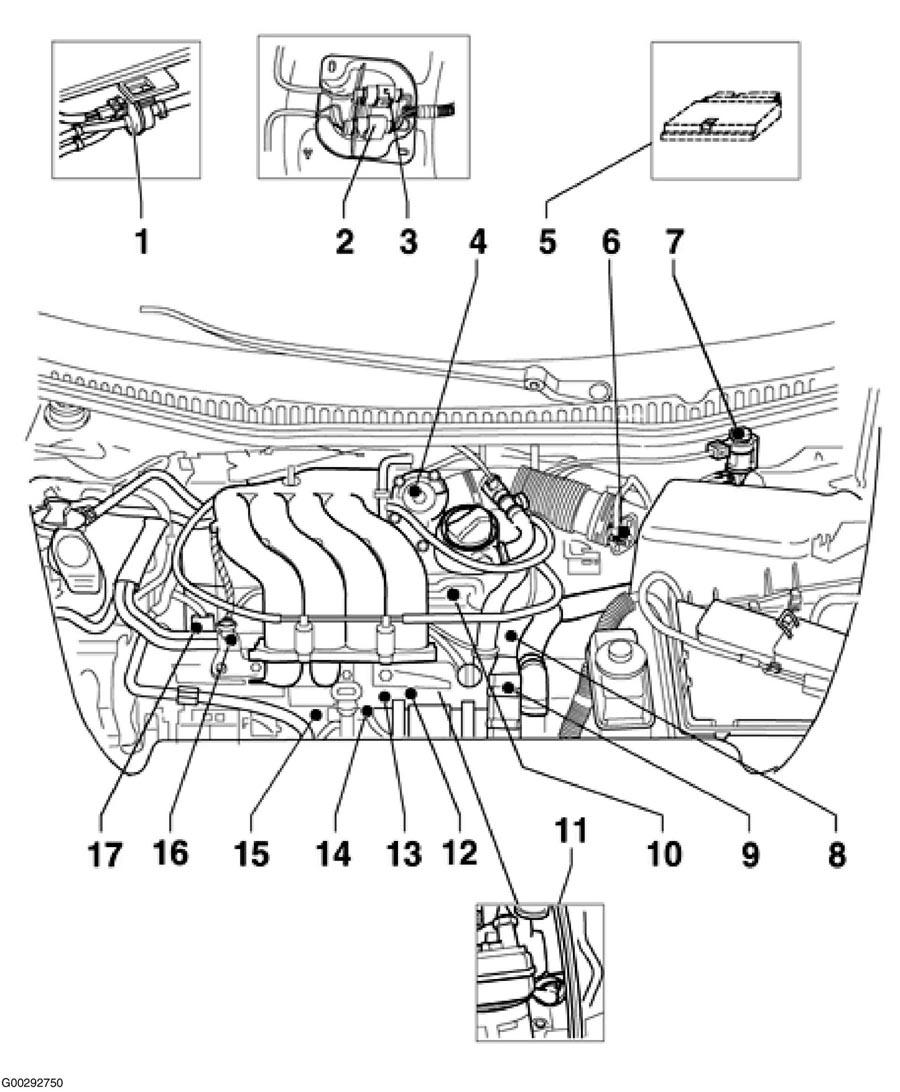

| Motronic Engine Control Module (1.8L) (11) | Below left side of dash panel cover. See Figure. |

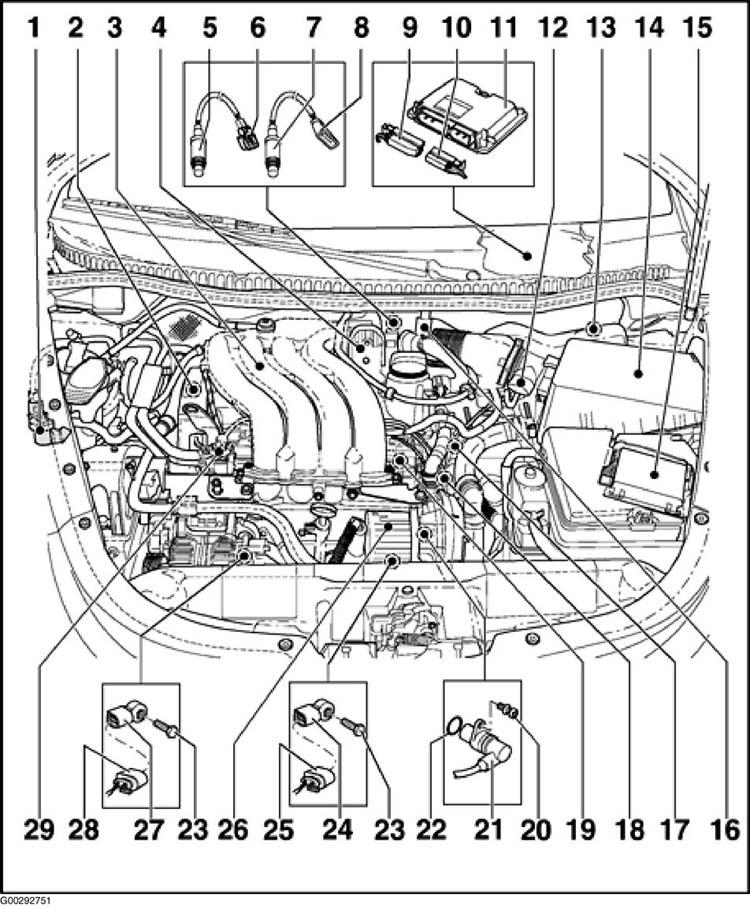

| Motronic Engine Control Module (2.0L AEG) | Below left side of dash cover. |

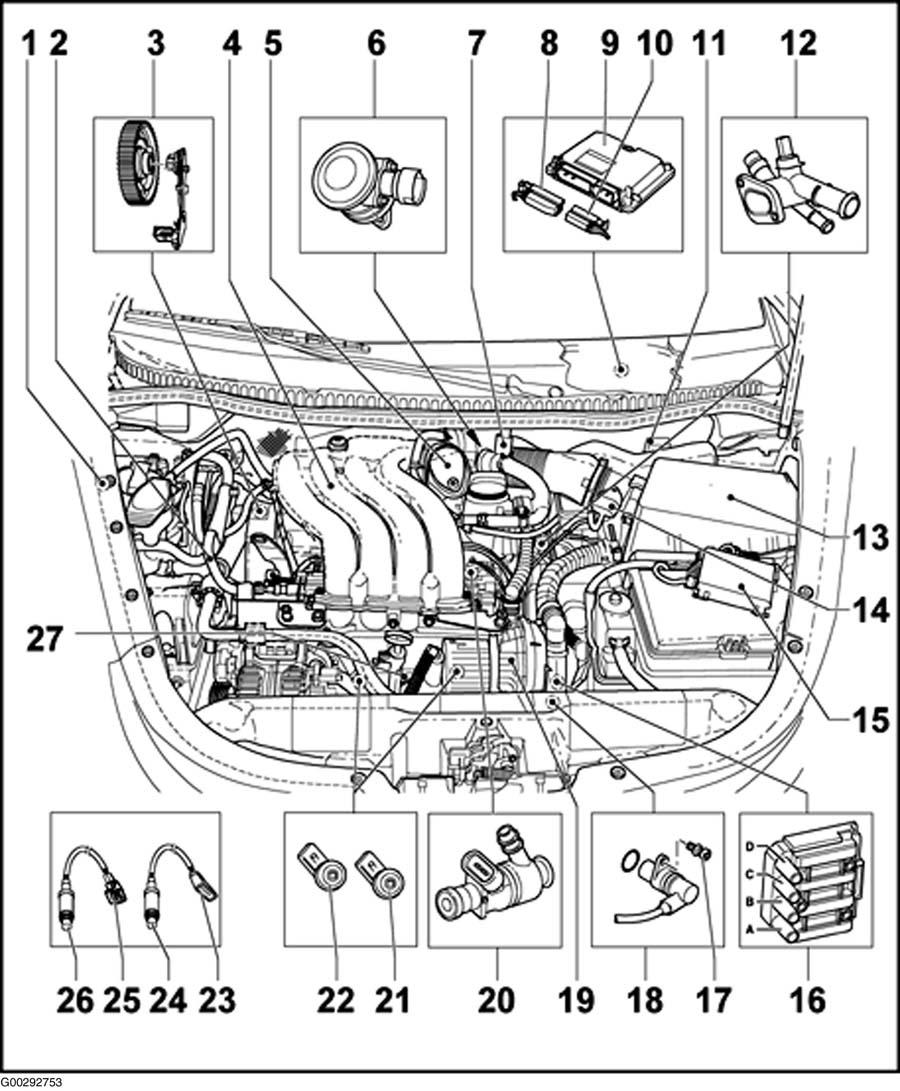

| Motronic Engine Control Module (2.0L AVH & AZG) (11) | Below left side of dash cover. See Figure. |

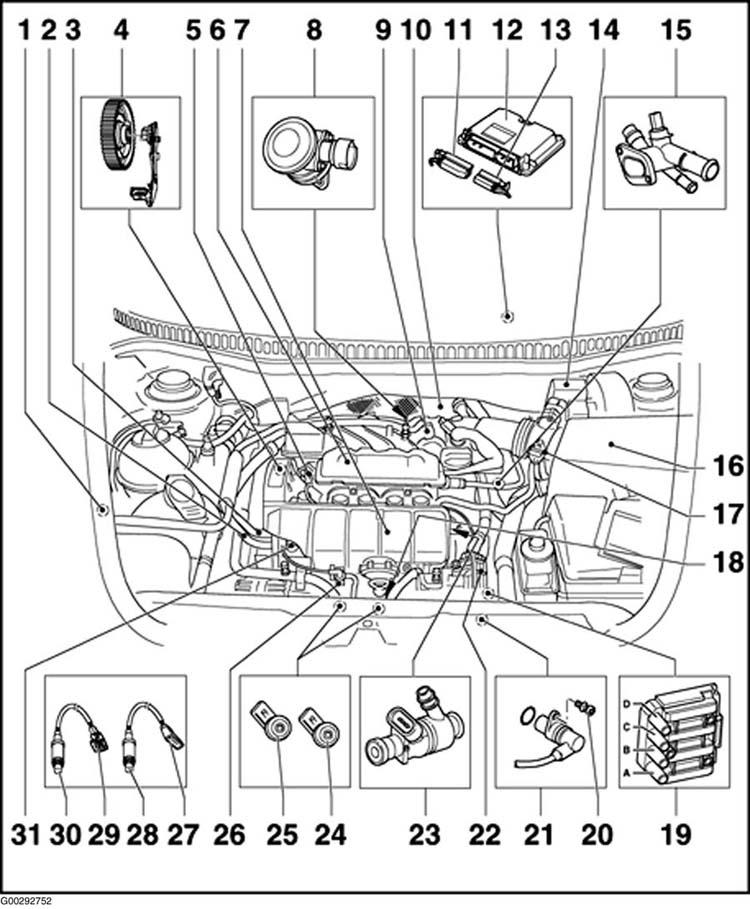

| Motronic Engine Control Module (2.0L BDC & BGD) (12) | Below left side of dash cover. See Figure. |

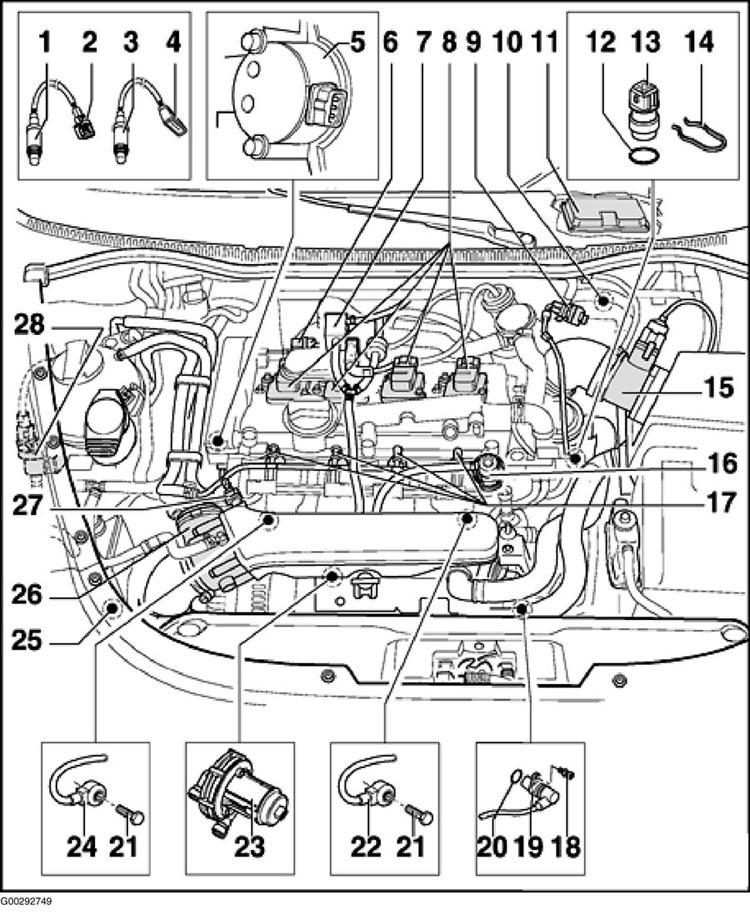

| Motronic Engine Control Module (2.0L BEV) (9) | Below left side of dash cover. See Figure. |
| Rear Spoiler Control Module | On right side of rear lid. |
| Throttle Valve Control Module (1.8L) (26) | On throttle body, on left side of engine. See Figure. |
| Throttle Valve Control Module (2.0L AEG) (4) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.0L AVH & AZG) (4) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.0L BDC & BGD) (9) | On throttle body. See Figure. |
| Throttle Valve Control Module (2.0L BEV) (5) | On throttle body. See Figure. |
| Transmission Control Module | Below right side of dash panel cover. |
