Timing Plate, Variable Valve Timing

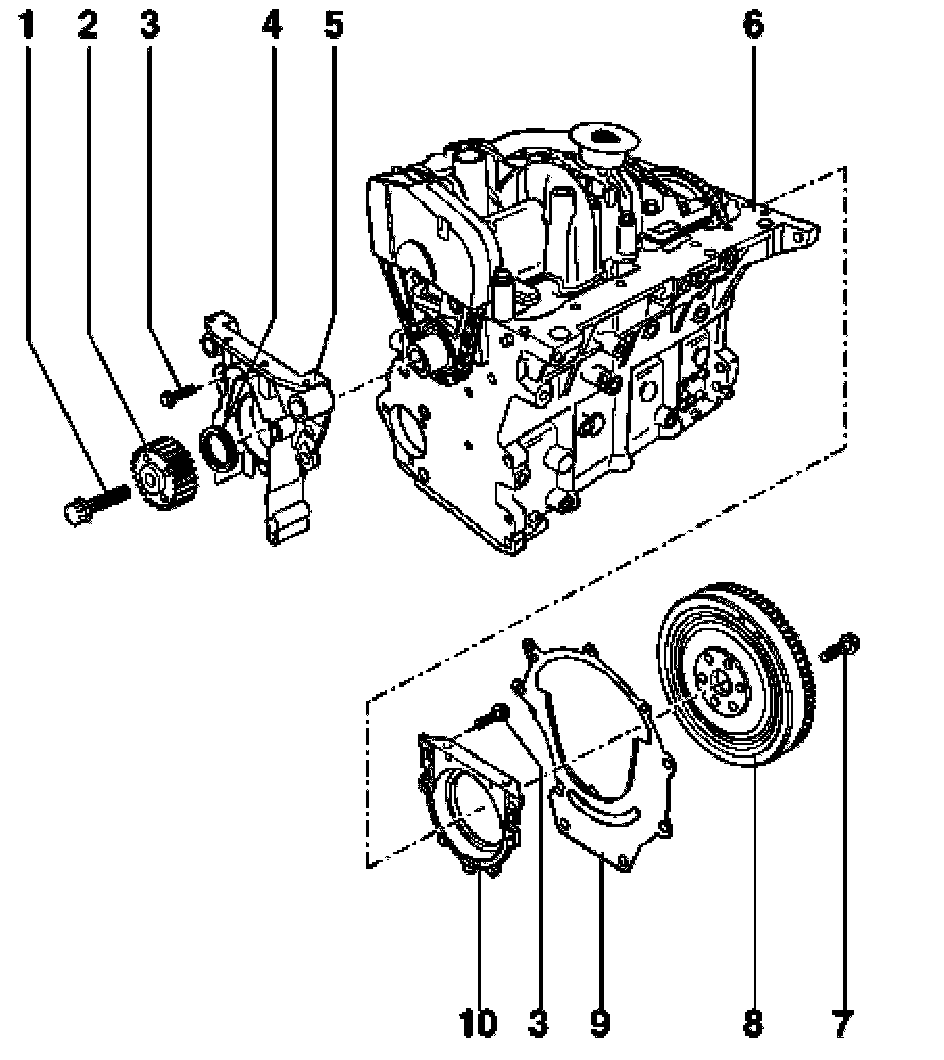

Sealing flanges





1- 90 Nm 1/4 turn (90°) further
^ Replace
^ Threads and shoulder must be free of oil and grease
^ Use counter support tool 3415 to loosen and tighten
2- Crankshaft toothed belt sprocket
3- 15 Nm
4- Seal
5- Sealing flange
6- Cylinder block
7- 60 Nm 1/4 turn (90°) further
