Engine Control Module: Locations

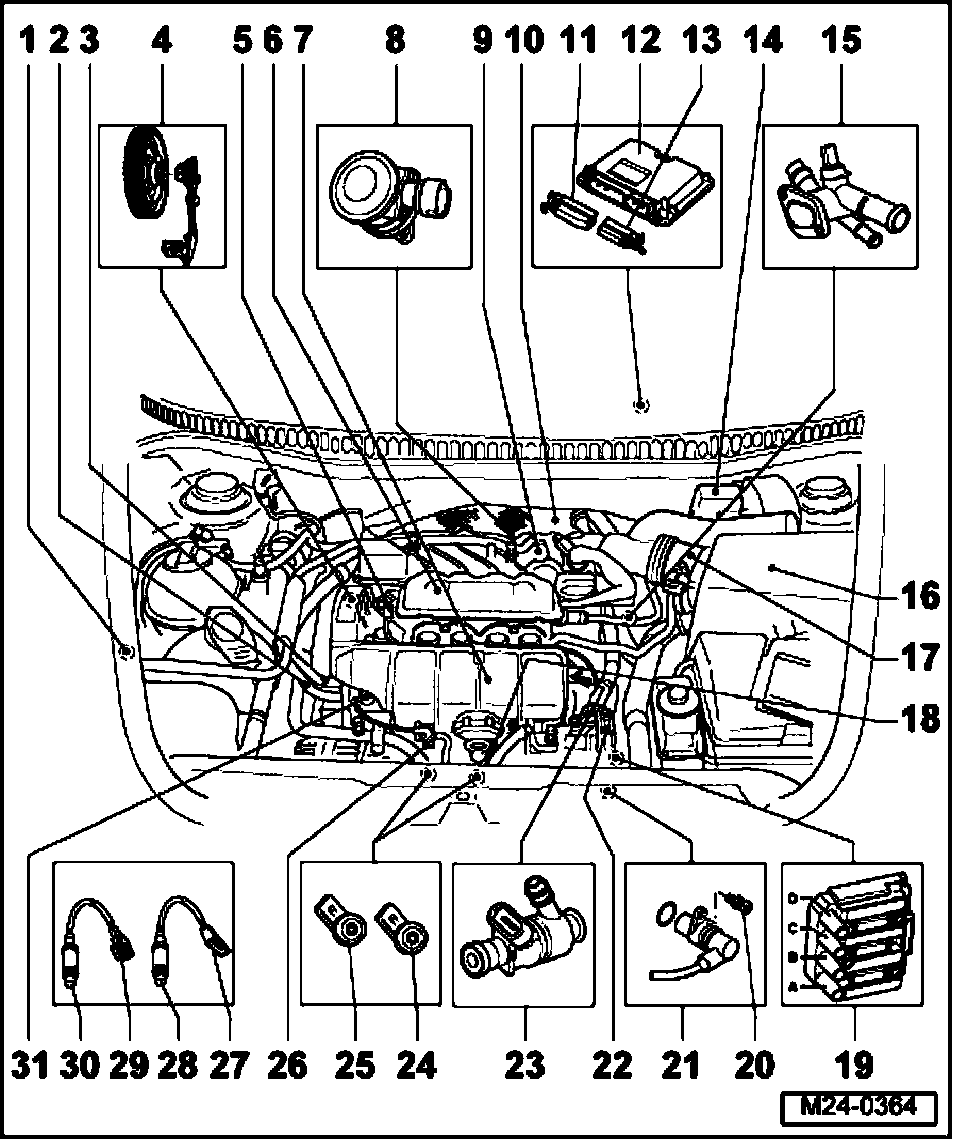

Overview Of Component Locations (Vehicles With Engine Code BDC)







12 Engine Control Module (ECM)*
- Component location: below inner plenum chamber cover, left, in passenger compartment
- Check voltage supply for Engine Control Module (ECM)
13 Connector, 40-pin
- Switch ignition off before disconnecting or connecting connector
- disengage to pull off.
14 Protective housing for relay
Component location of:
- Motronic Engine Control Module (ECM) Power Supply Relay -J271-
