Transmission Position Sensor/Switch: Adjustments

6 Speed Automatic 09G

Multi-function TR switch -F125-, adjusting
- Move selector lever to position "N".

Note: Do not kink selector lever cable.

Adjustment requirements
- Selector lever cable is disconnected at selector shaft lever.
- Selector shaft positioned at "N".
- Multi-function TR switch -F125- securing bolts are loosened.
- Selector shaft lever is removed.

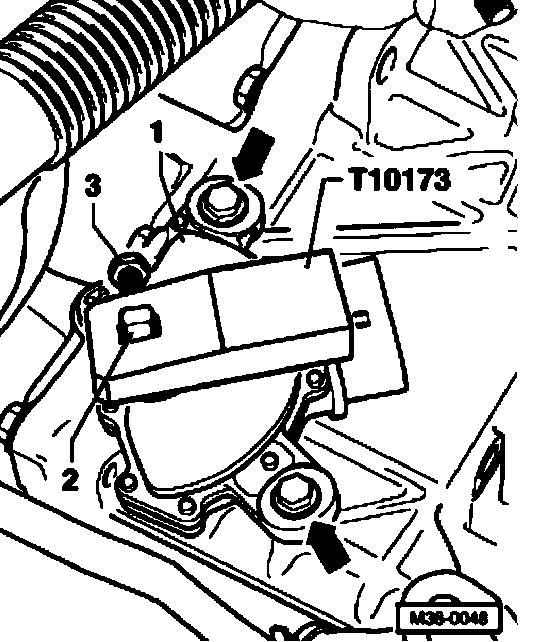

- Fit setting gauge onto selector shaft -2- and turn multi-function switch -1- until gauge engages into lug on multi-function switch connector.
- Secure setting gauge on selector shaft -2- with bolt -3-.
- Tighten bolts (arrows) to 6 Nm.
- Remove setting gauge.
The remainder of the installation is in reverse order.
