Throttle Position Sensor: Service and Repair

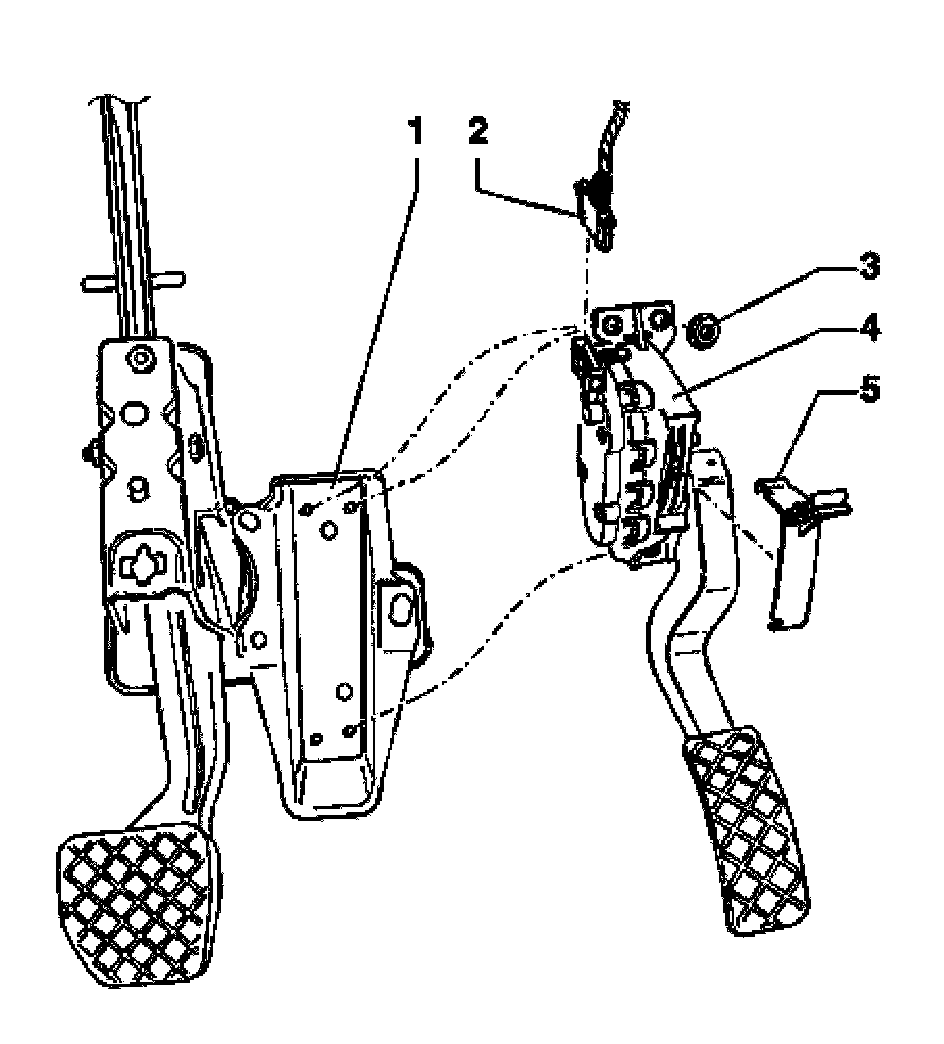

Accelerator mechanism, servicing
1- Mounting
2- Connector
^ Black, 6-pin
3- 10 Nm
4- Throttle Position (TP) sensor -G79-
^ On replacement, on models with automatic transmission, an adaptation must be performed, Refer to Engine Control Module, Service and Repair
^ When removing remove pedal cluster cover
5- Retainer
^ For footwell cover
^ Clipped onto accelerator pedal
