Selectable Diagnostic Modes Under Address Word 33 - OBD



Selectable diagnostic modes under address word 33 - OBD

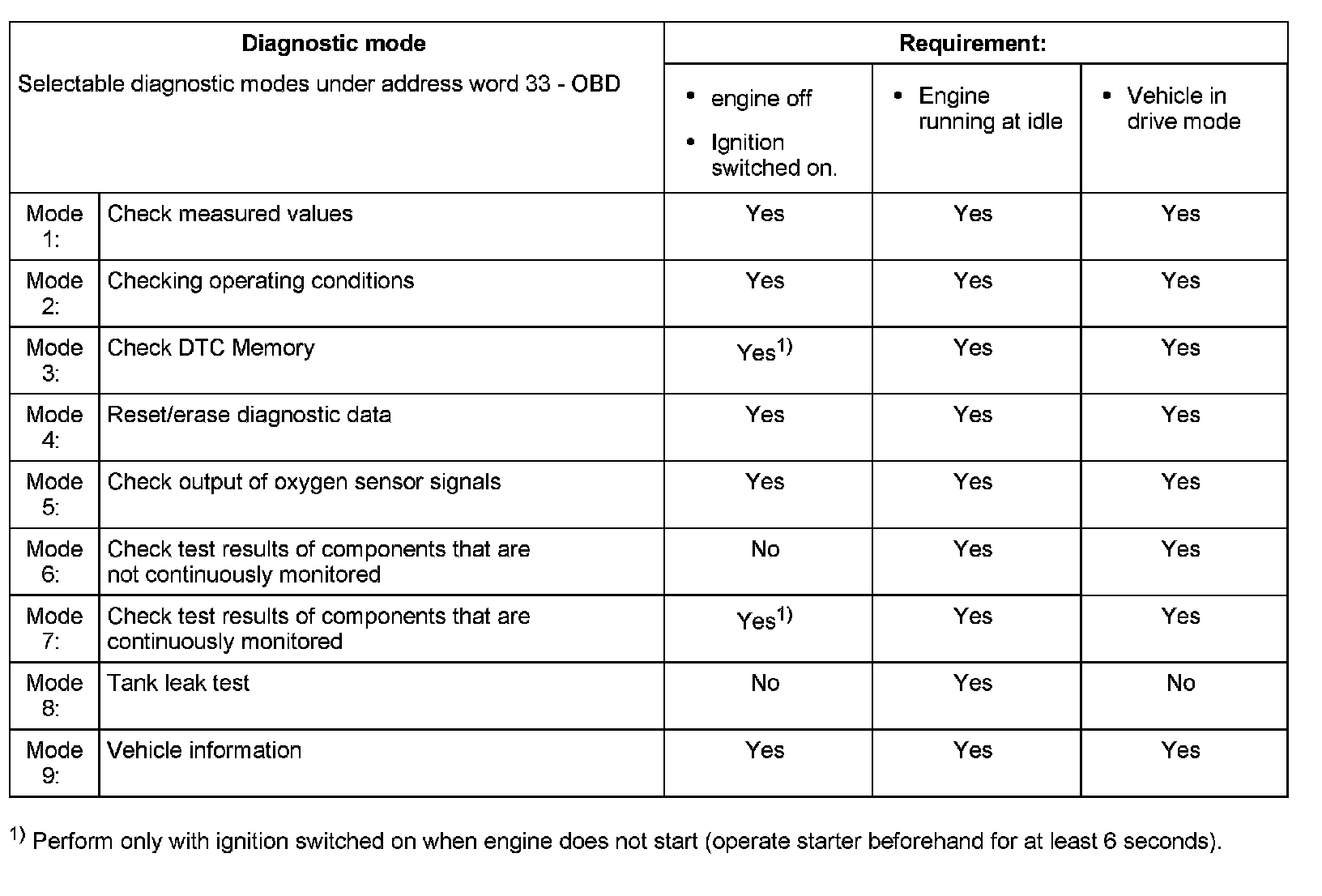

NOTE: The conditions required for selecting the desired diagnostic mode are listed in the following table:
