Accelerator Pedal Position Sensor: Service and Repair

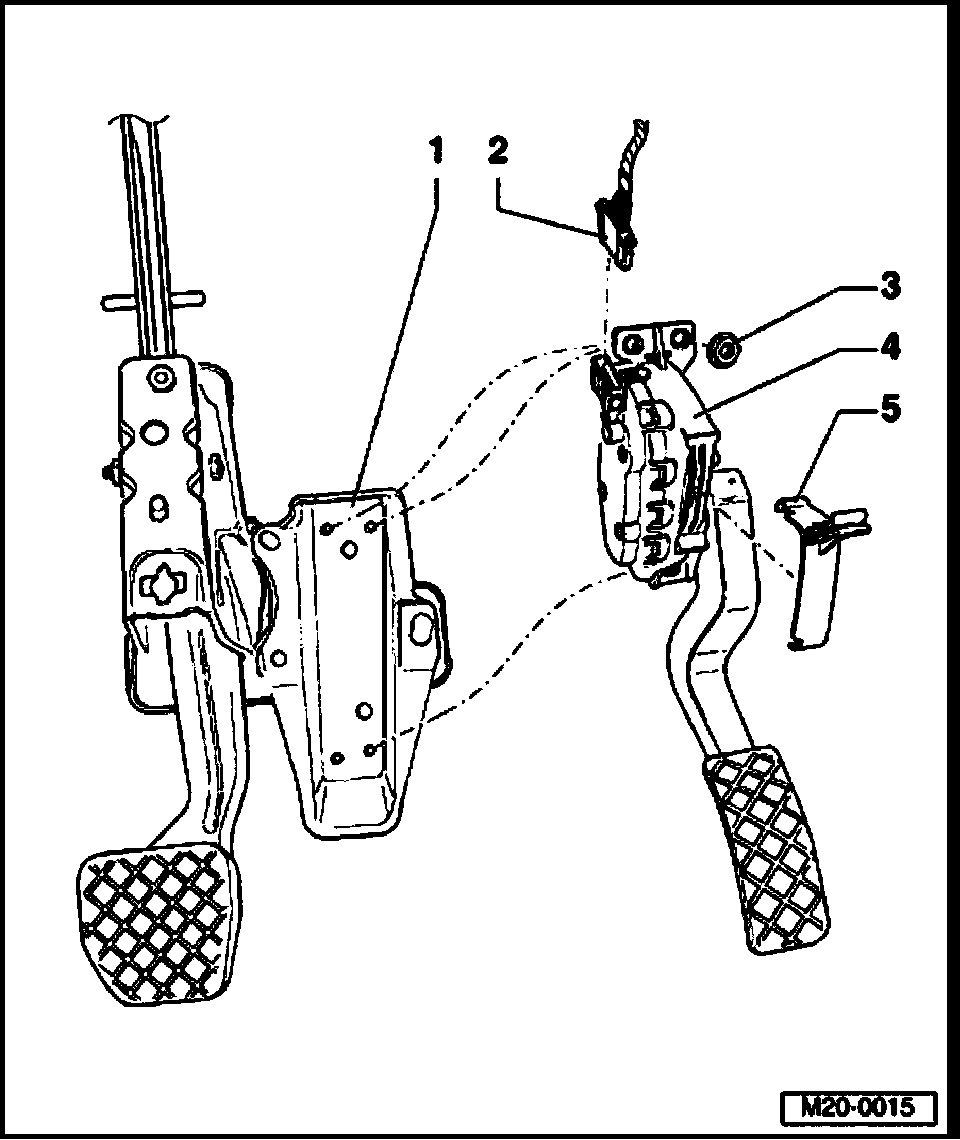

Servicing Parts Of The Electronic Engine Power Regulation (E-gas)







NOTE: Components marked with * are tested via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.

1 Mounting bracket
2 Connector
- Black, 6-pin
- Terminals are gold-plated
3 10 Nm
4 Throttle Position (TP) sensor -G79-*
- Not adjustable.
- Throttle Position (TP) sensor communicates the driver's intentions to the Engine Control Module (ECM)
5 Bracket
- for footwell cover
- clipped in at Throttle Position (TP) Sensor
