Windshield, Assembly Overview

Windshield, Assembly Overview

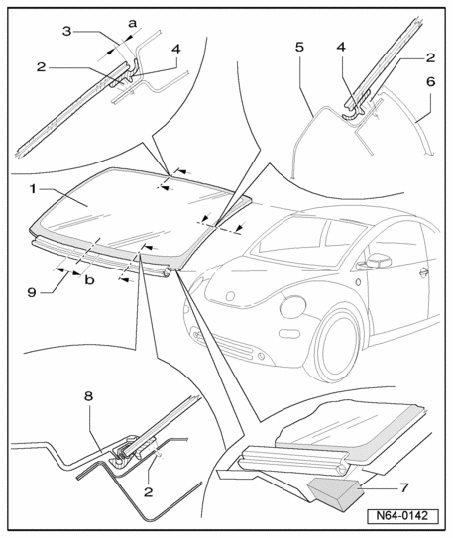

1 - Windshield
- Removing windshield
- Installing windshield
- Removing and installing rain sensor

2 - PUR adhesive sealant
- Bead cross section: Width = 7 mm, height = 11 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time

3 - Dimension - a - = 4 mm
4 - Sealing lip (component part of pre-coating)
5 - A-pillar
6 - A-pillar trim
7 - Window adjuster
- 443 845 631 A

8 - Outer plenum chamber cover
9 - PUR adhesive sealant joint
- Central within area of dimension - b - = 130 to 170 mm
