List of Selectable Display Group Numbers

















NOTE:
- If the printer is switched ON, the current display is printed out.
- If the specified values are reached in all the display fields:
Press -> button.

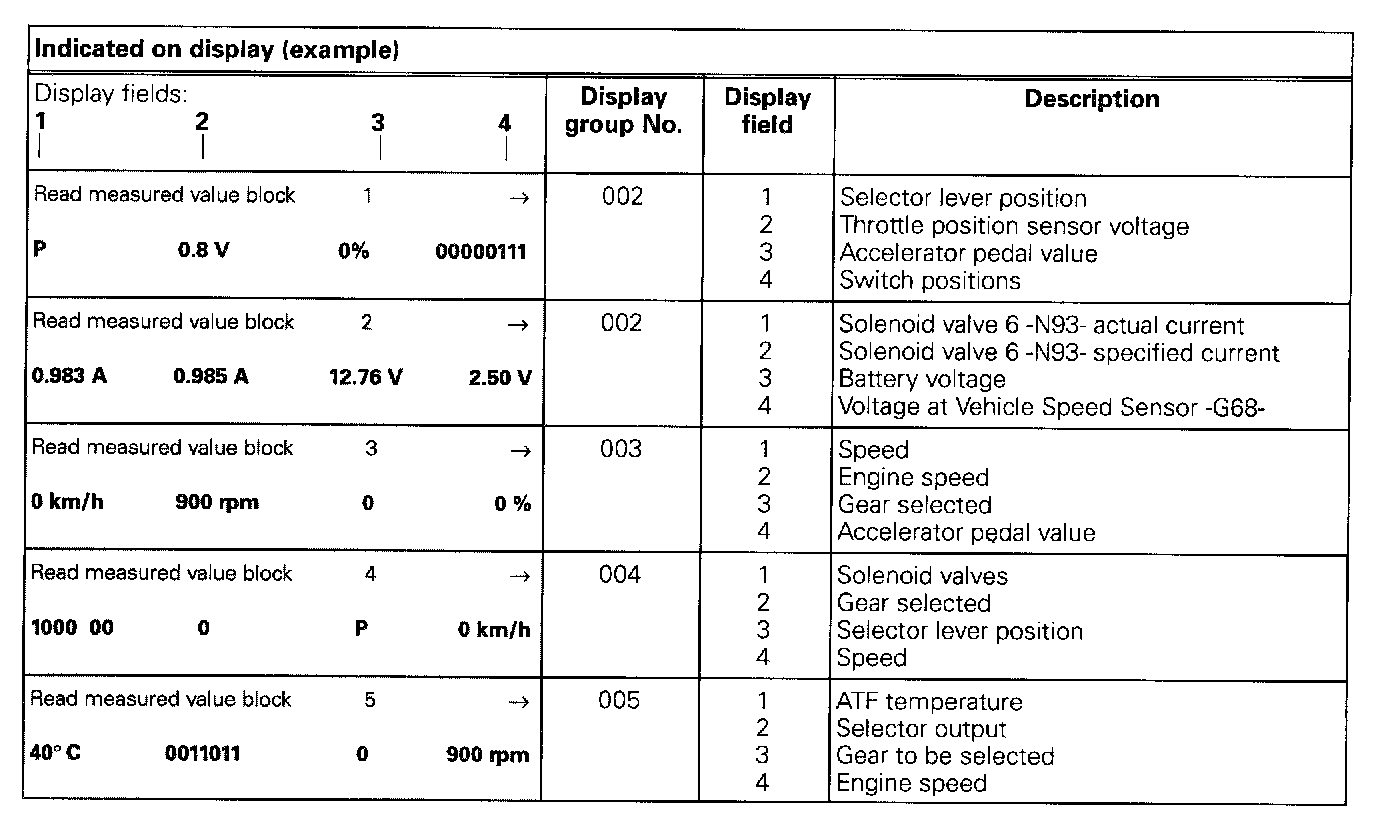

Indicated on display


Rapid data transfer HELP
Select function XX
