Display Groups 002 and 003

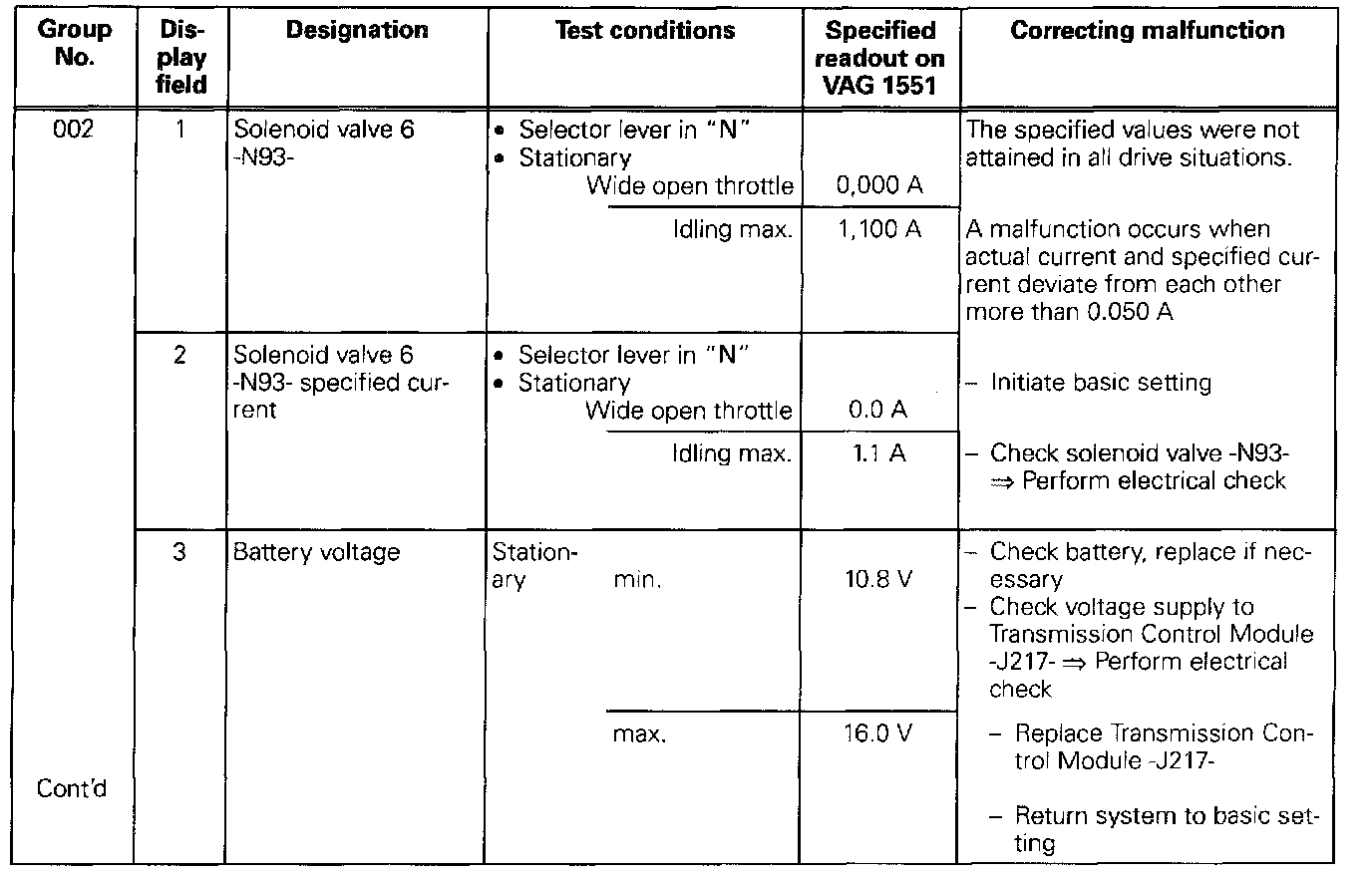

Group 002, Display Fields 1 to 3






Group 002, Display Field 4
Group 003, Display Fields 1 and 2

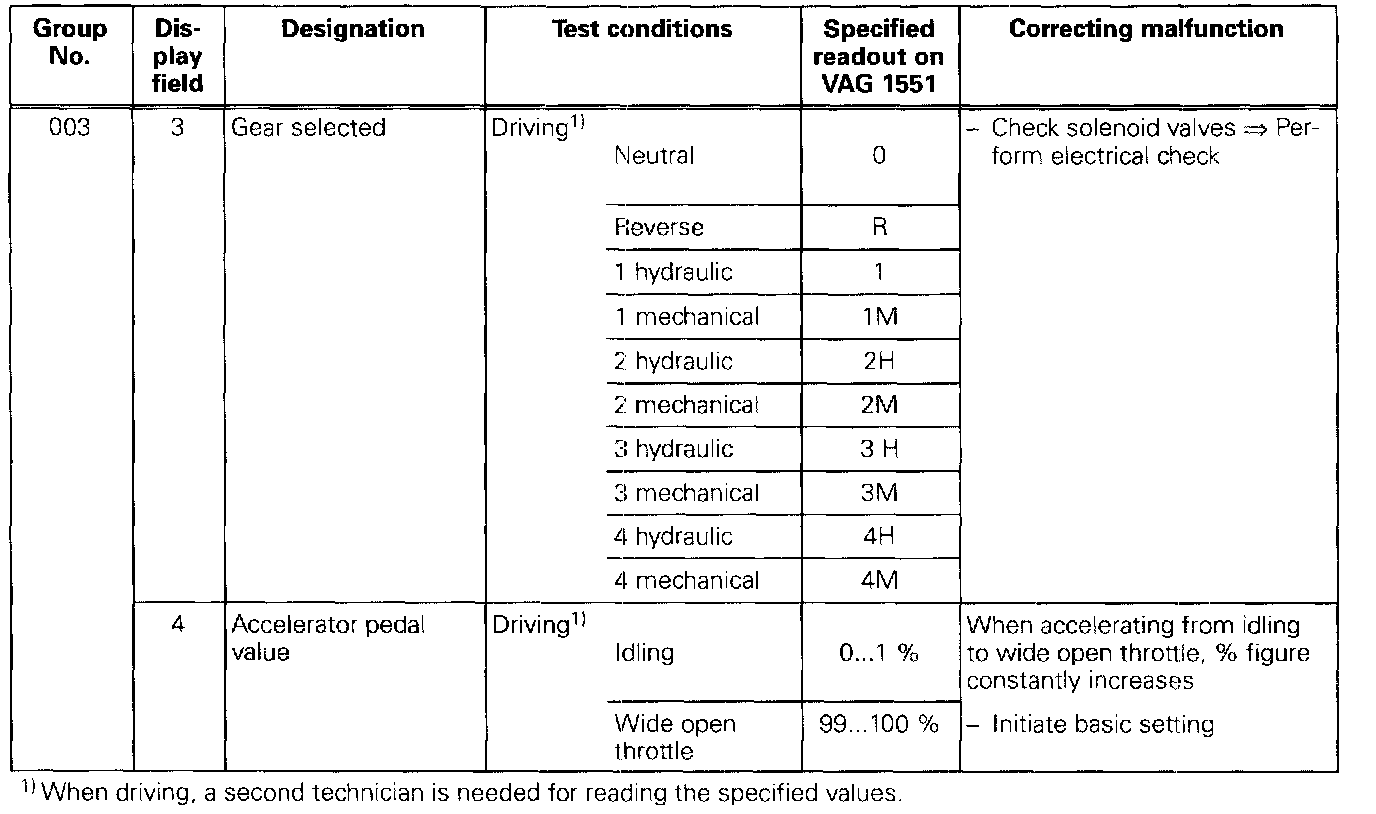

Group 003, Display Fields 3 and 4
