Display Groups 30-49, 99, 107 (Oxygen Sensor Control)
Measured value blocks, display groups 30 to 49, 99, 107 -Oxygen sensor control-, evaluating

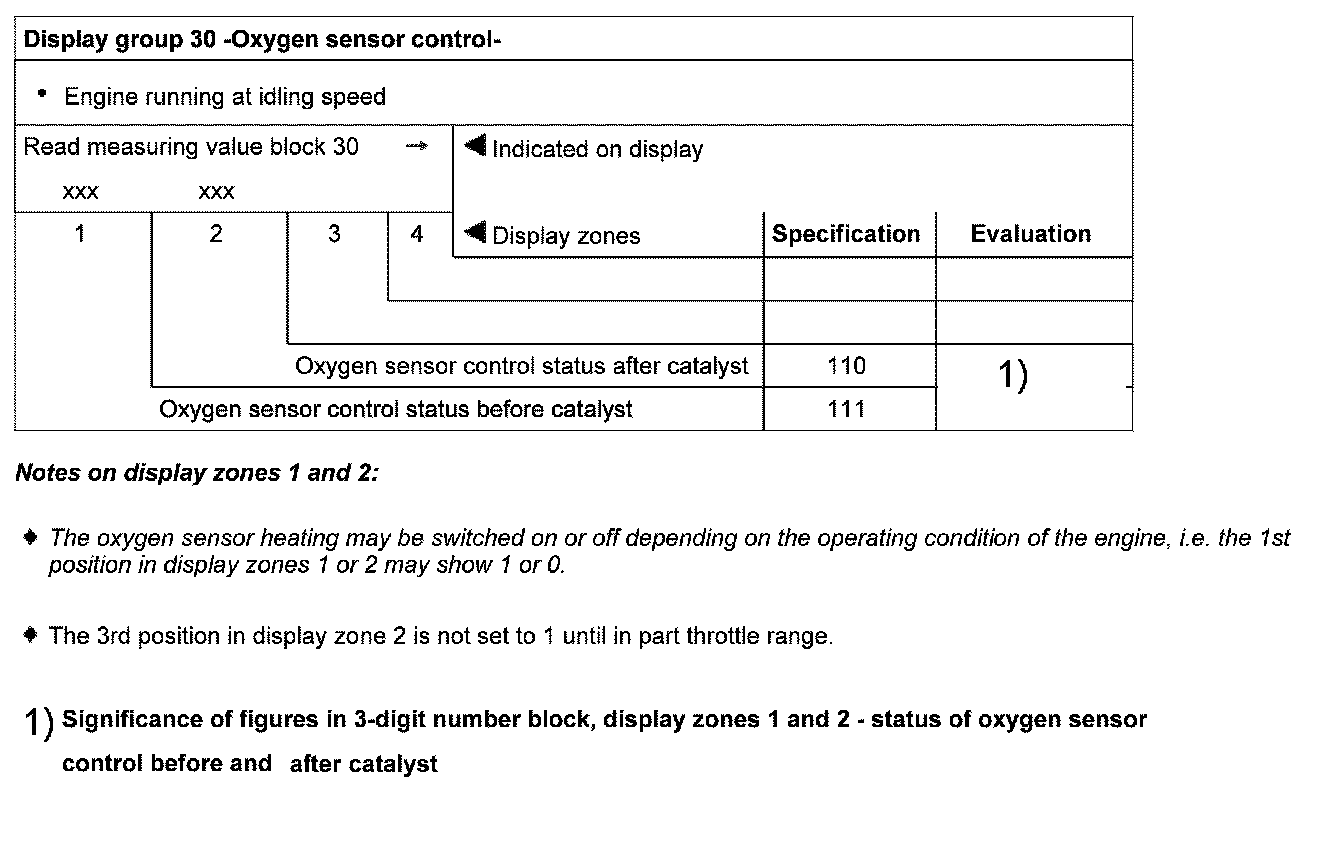

Display Group 30:
Significance of figures in 3-digit number block, display zones 1 and 2 - status of oxygen sensor control before and after catalyst

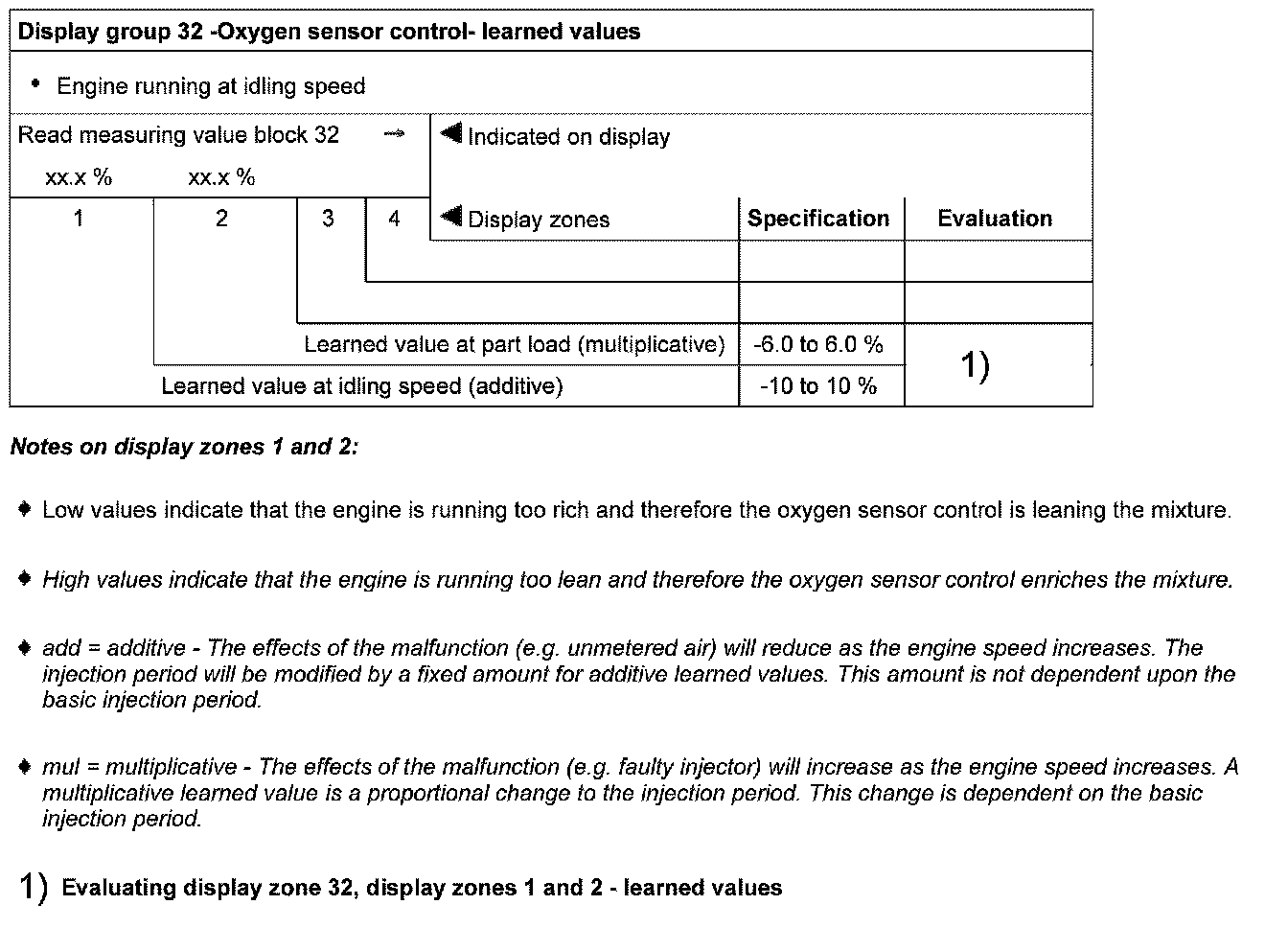

Display Group 32:
Evaluating display zone 32, display zones 1 and 2 - learned values

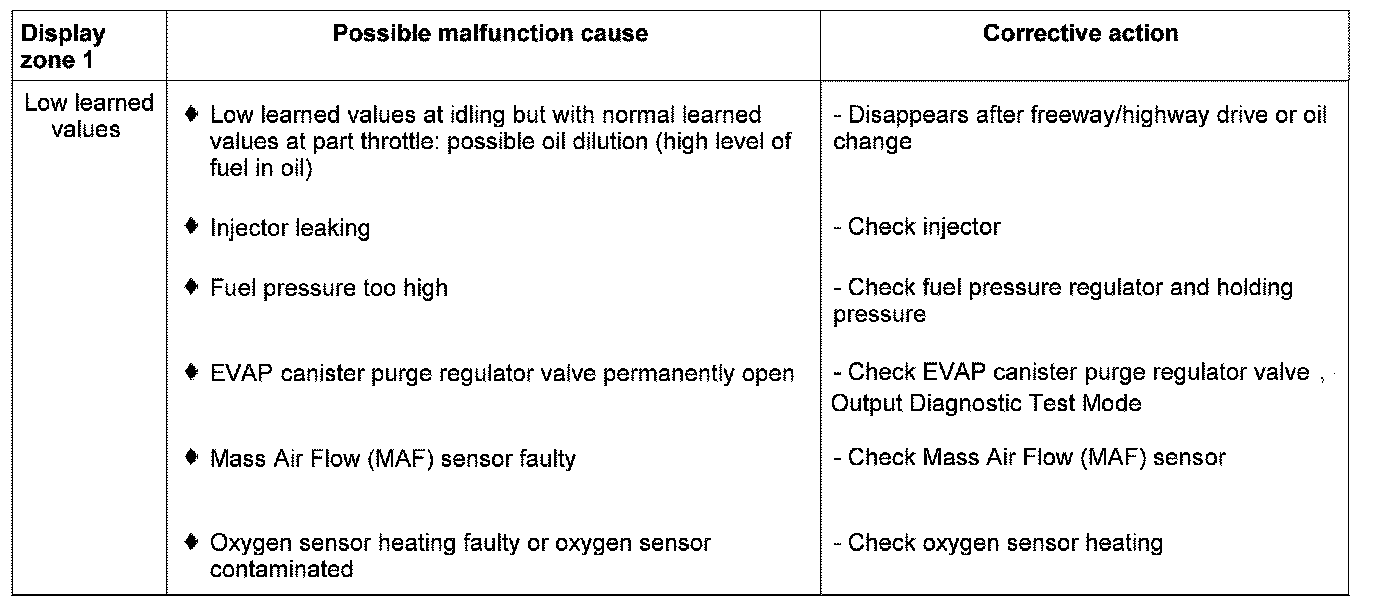

Display Zone 1:

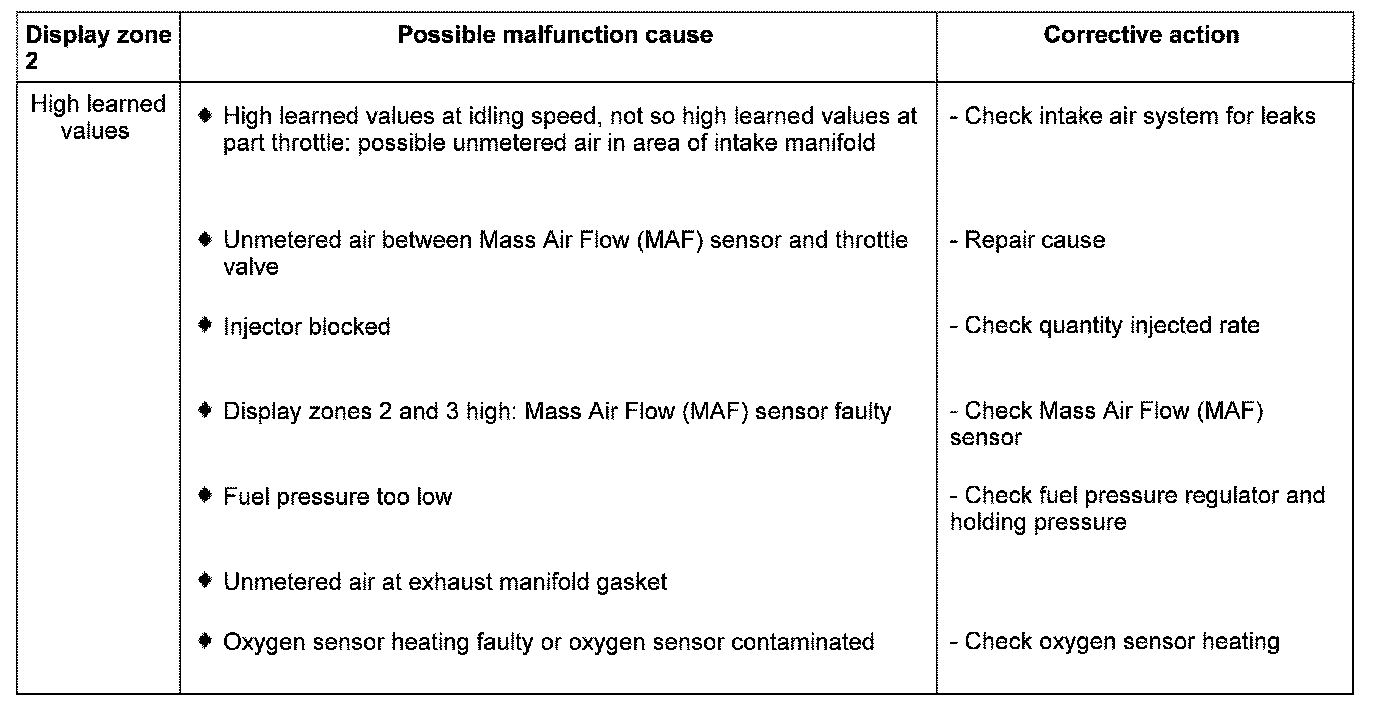

Display Zone 2:

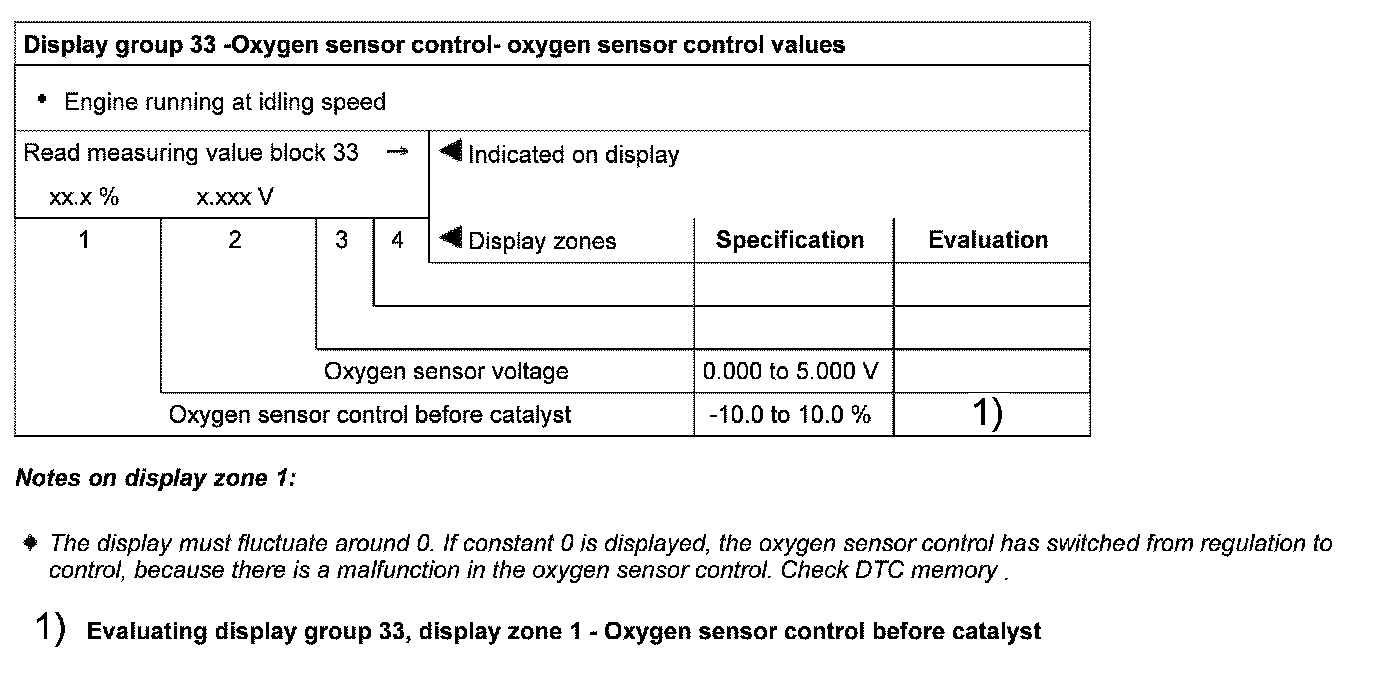

Display Group 33:
Evaluating display group 33, display zone 1 - Oxygen sensor control before catalyst
Display Zone 1:

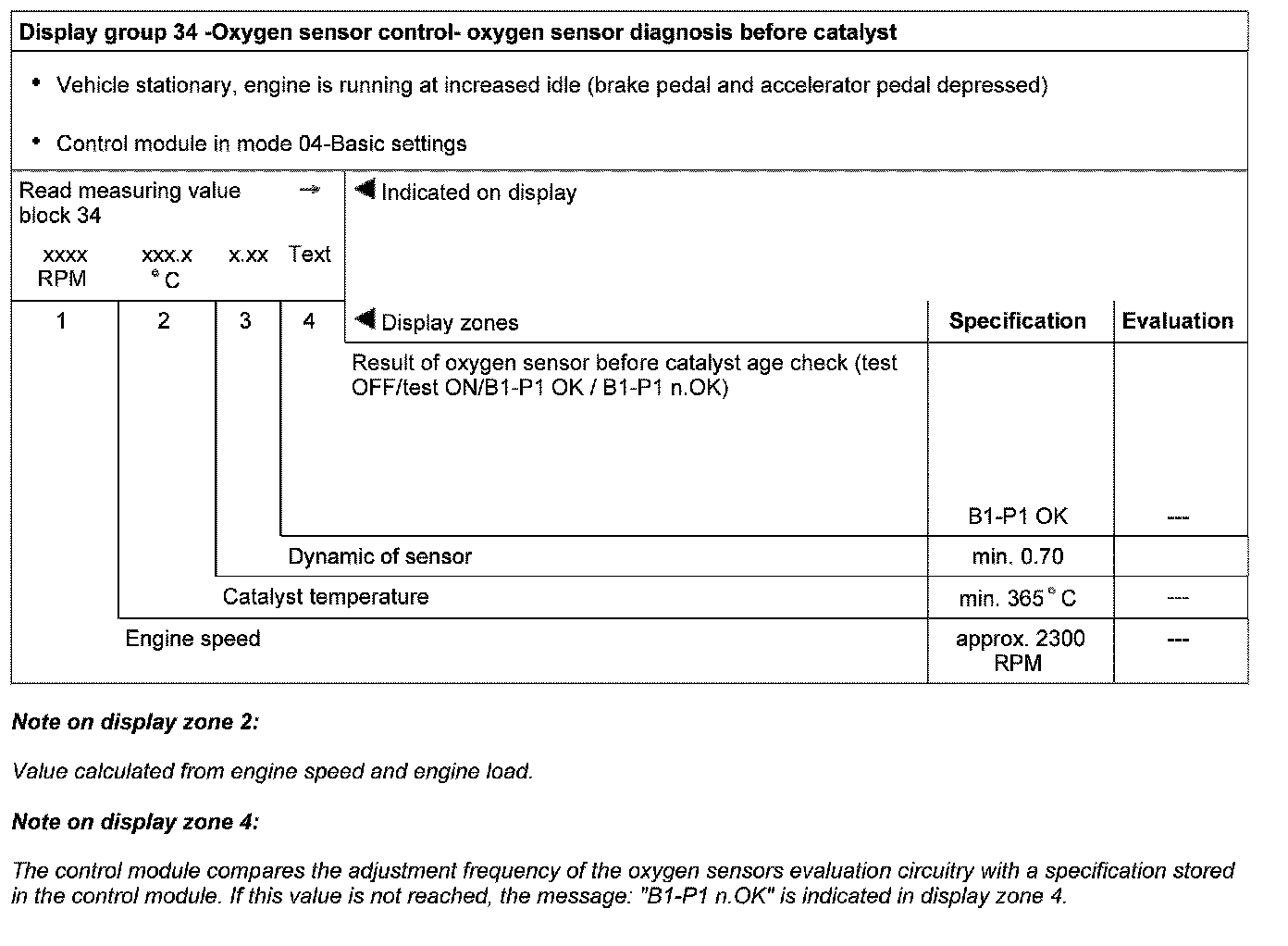

Display Group 34:

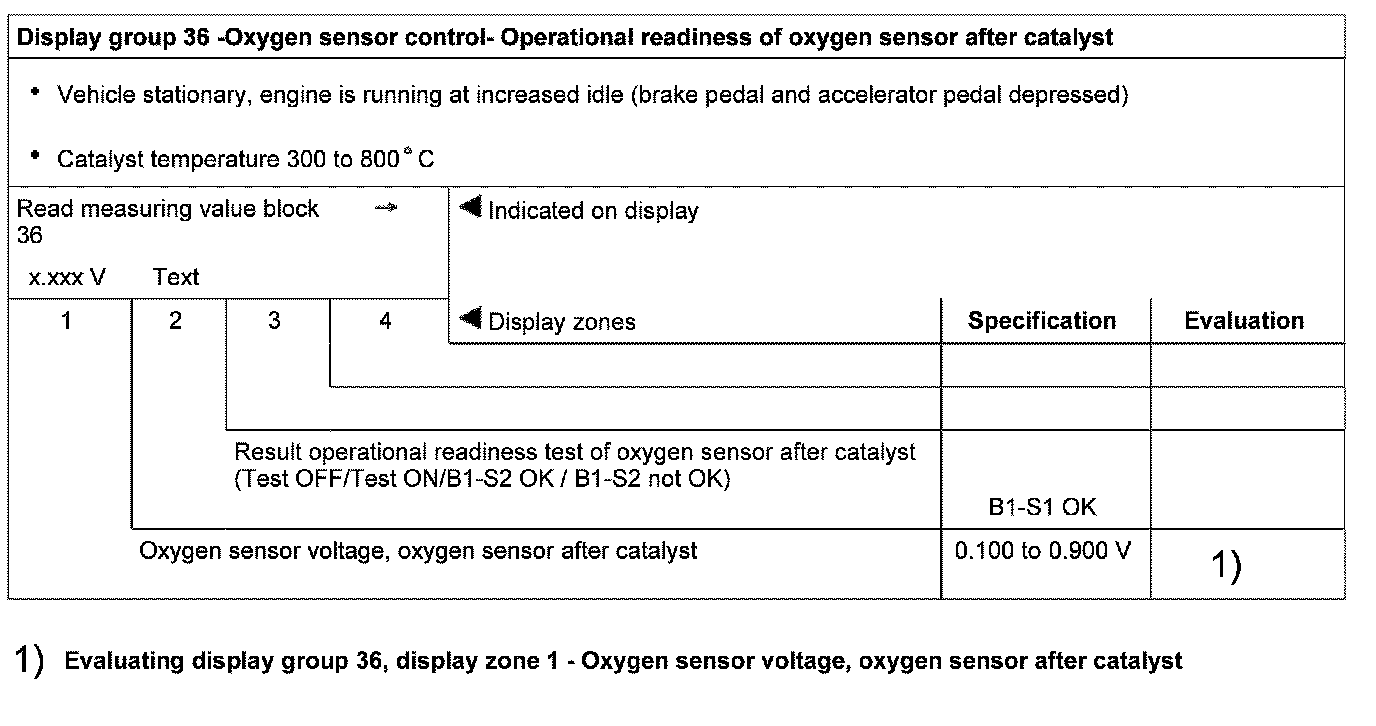

Display Group 36:
Evaluating display group 36, display zone 1 - Oxygen sensor voltage, oxygen sensor after catalyst
Display Zone 1:

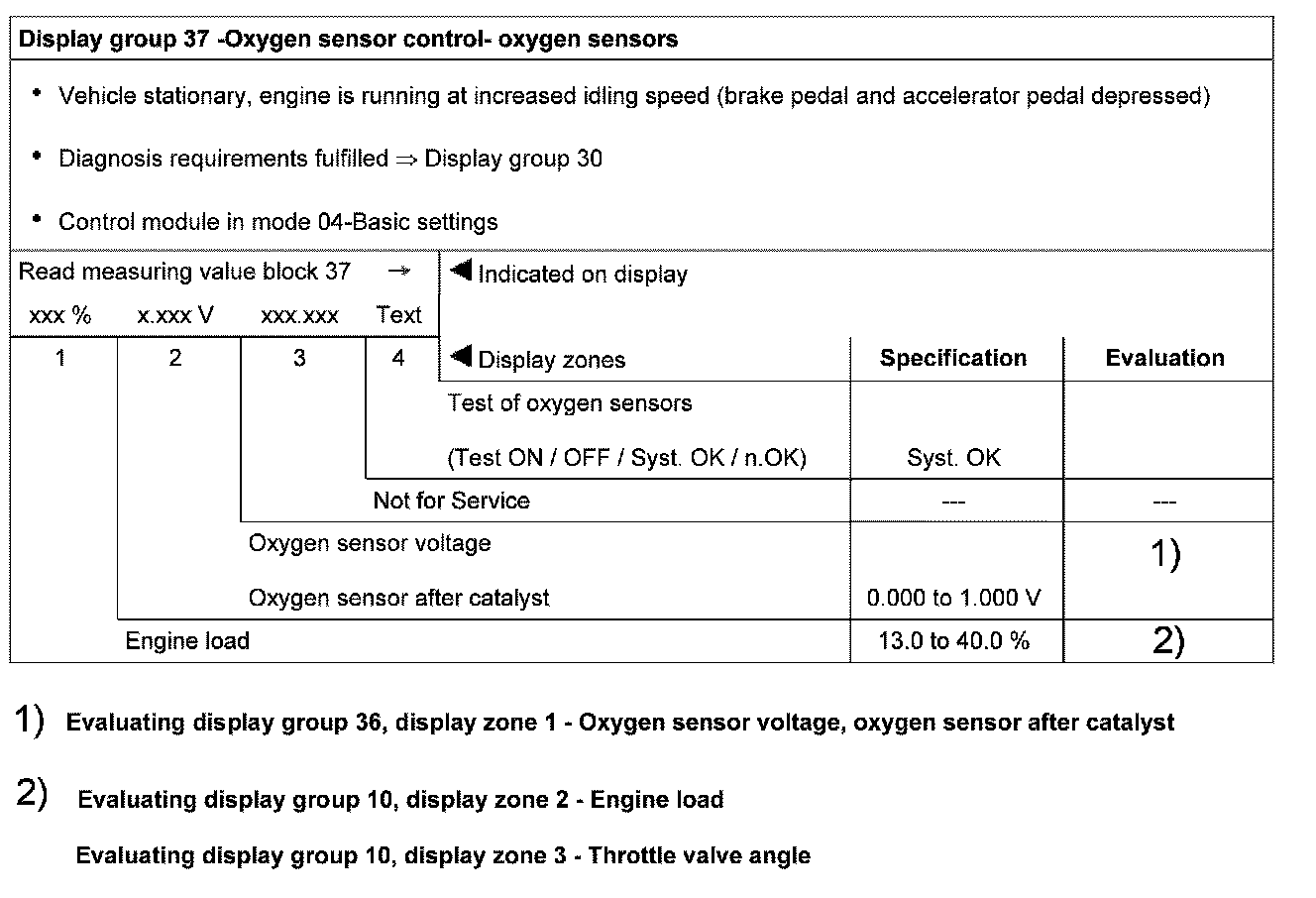

Display Group 37:

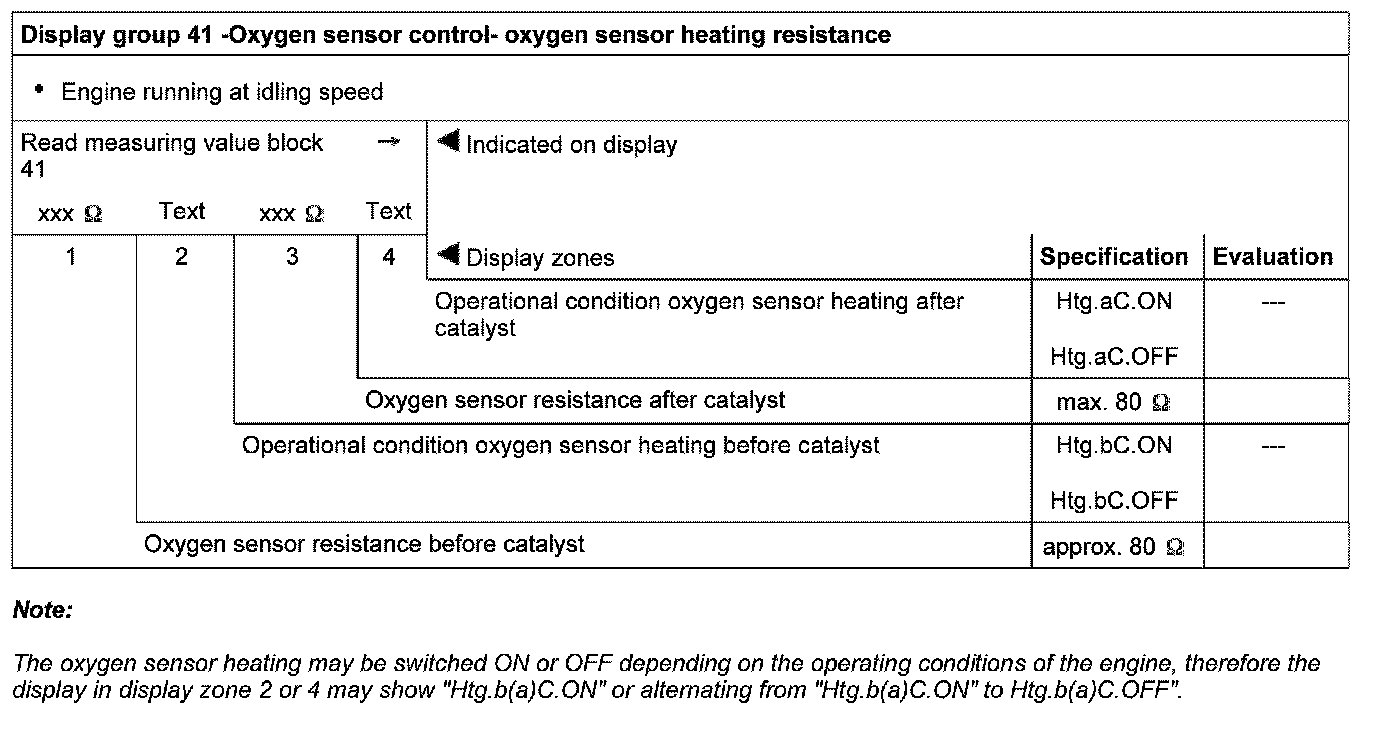

Display Group 41:
Display Group 43:
Display Group 46:

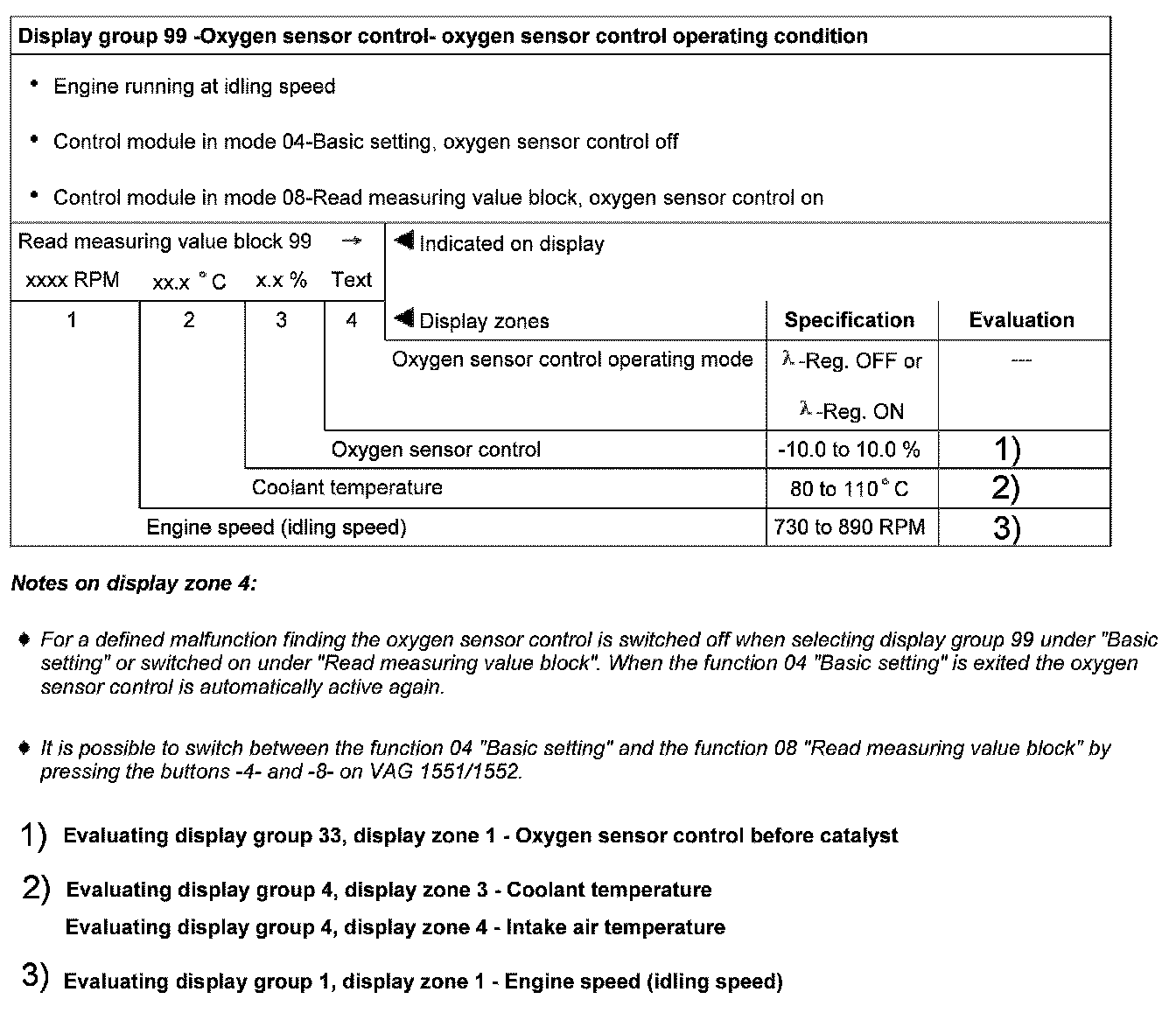

Display Group 99:
Display Group 107:
