Lock Carrier, Service Position

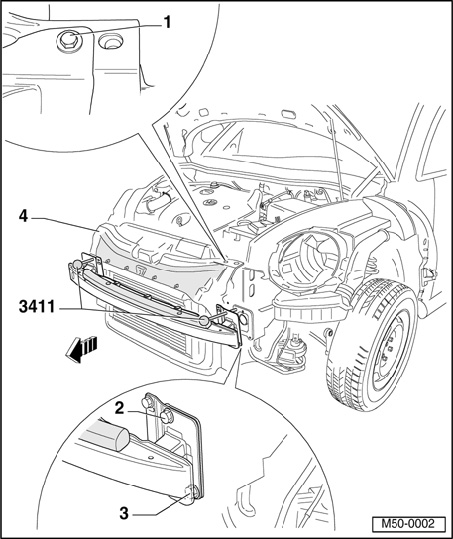

Lock carrier, service position

- Remove front part.







- Disengage hood release cable at lock.
- Remove one bolt each - 2 - from longmembers and bolt in Support Tool 3411 at right and left longmembers for this.
- Remove bolts - 1 - and - 3 - at left and right and pull lock carrier toward front in area of Support Tool 3411.
