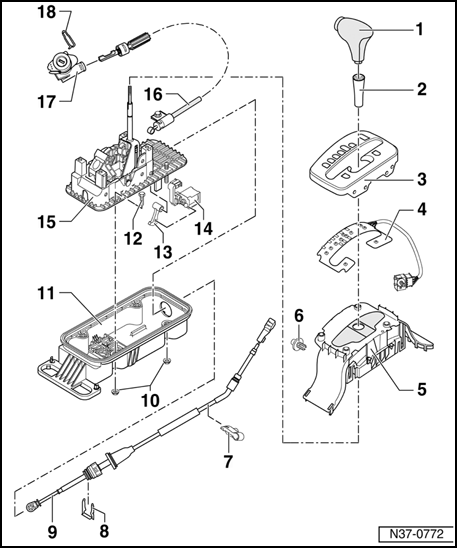

Shift Mechanism, Disassembling And Assembling

Lubricate bearing positions and sliding surfaces with polycarbamide grease G 052 142 A2   .

1 - Selector lever handle

• Removing and installing

2 - Sleeve

• Engages in selector lever handle.
• Prevents selector lever handle from being pulled off

3 - Cover

• With symbol inlay

4 - Printed circuit board

• Can be checked in "Guided Fault Finding".

5 - Frame

• With sliding cover

6 - Cable clip

7 - Retainer

• For selector lever cable.
• Pushed into front heat shield for tunnel

8 - Locking plate

• Secures selector lever cable to mounting bracket
• Always replace

9 - Selector lever cable

• Do not bend or kink.
• If protective sleeve is damaged, selector lever cable must be replaced
• Checking and adjusting, refer to Selector lever cable, checking and adjusting  .
• Removing and installing, refer to Selector lever cable, removing and installing

• Do not grease cable eye and ball socket

10 - Flange nut

• 10 Nm
• Secures cover to mounting bracket
• Qty. 4
• Self-locking

• Always replace

11 - Cover

• For mounting bracket
• With bonded seal

12 - Hex bolt

13 - Locking pawl

• For selector lever lock
• Engages in cable lever for mounting bracket

14 - Shift Lock Solenoid N110

• Can be changed with selector mechanism installed.
• Removing and installing, refer to Shift Lock Solenoid N110 , removing and installing
• Can be checked in "Guided Fault Finding".

15 - Mounting bracket

• Removing and installing, refer to Selector mechanism, removing and installing

16 - Locking cable

• For ignition key removal lock.
• Must not be kinked.
• Removing and installing, refer to Locking cable, removing and installing
• Adjusting, refer to Locking cable, adjusting

• Checking operation of ignition key withdrawal lock, refer to Ignition key withdrawal lock, checking operation

17 - Steering lock

18 - Clip

• Location: Push on clip from above. The angled ends of clip face steering lock
