Front Fender Assembly Overview

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2010 Volkswagen New Beetle, 2009 Volkswagen New Beetle, 2008 Volkswagen New Beetle, 2007 Volkswagen New Beetle, and 2006 Volkswagen New Beetle. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Overview describes removal and installation of front bumper for vehicles through 06.05. The removal and installation is, except for minor differences, based on vehicles from 07.05.

The fender is a component of the front section and is removed collectively with the front section. Refer to FRONT SECTION ASSEMBLY OVERVIEW .

Observe tightening sequence of bolts -2-, -4-, -7- to ensure surface alignment and joint.

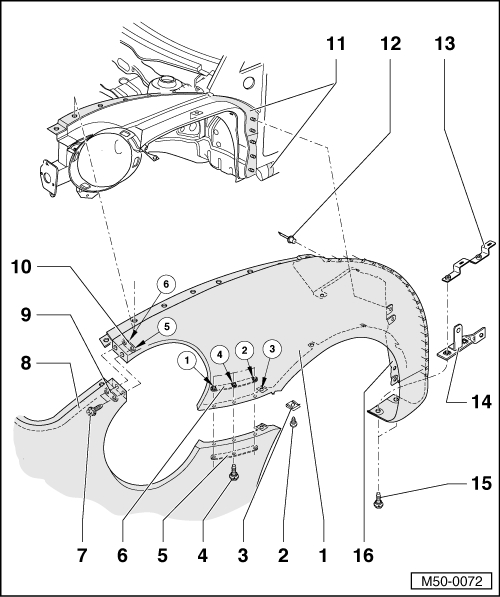

Fig 1: Identifying Front Fender, Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Fender
- Removing:
  -- Remove the front headlamp. Refer to Removal and Installation .

  -- Remove the front section, refer to FRONT SECTION ASSEMBLY OVERVIEW .

  -- Remove the screws, refer to -item - and -item -.
- Installing:
  -- Apply the anti-friction film to the contact area before attaching the front section and check the condition of the previous anti-friction film, refer to -item -.
Bolt
- Insert with locking fluid D 185 400 A2
- Note the tightening sequence
Clips
Bolt
- Insert with locking fluid D 185 400 A2
- Quantity: 3
- 6 Nm
- Note the tightening sequence
Backing
Backing
- With welding nut
Bolt
- Insert the locking fluid D 185 400 A2
- Quantity: 2
- 6 Nm
- Note the tightening sequence
Front bumper cover
Backing
- With openings
Backing
- With welding nut
Anti-friction film
- Check the status, replace if necessary
Pop rivet
- 19 pieces
Bracket
- Convertible
- Bolted to the exterior sill panel strip
Bracket
- Bolted to the exterior sill panel strip
Bolt
- Quantity: 2
- 6 Nm
End plate
- Riveted into the fender
