Variable Valve Timing Actuator: Service and Repair

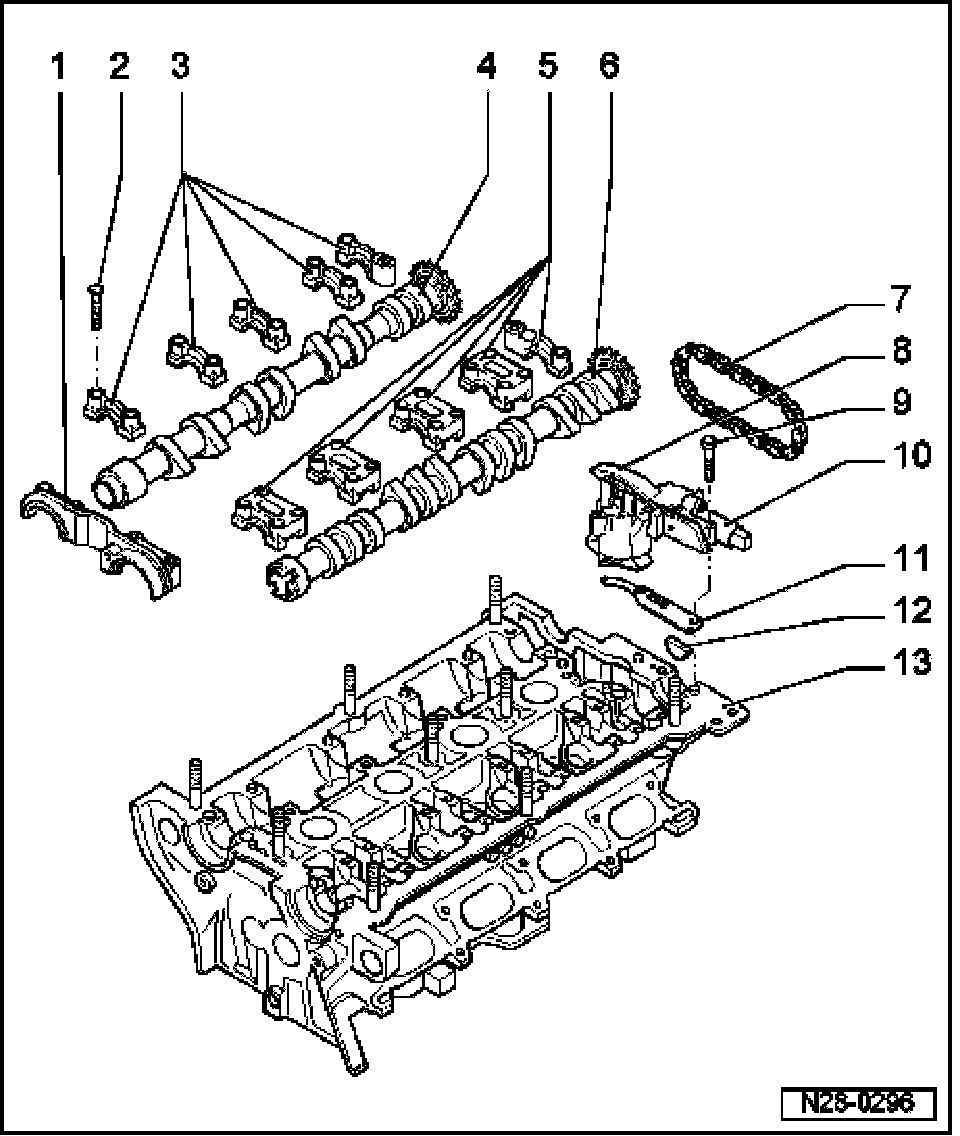

Camshaft (vehicles With Engine Code AWP, AWW) Adjustment, Servicing







1. Double bearing cap
2. 10 Nm
3. Exhaust camshaft bearing cap
4. Exhaust camshaft
5. Intake camshaft bearing cap
6. Intake camshaft
7. Drive chain
- Mark direction of travel (installation position) before removing
8. Camshaft adjuster
- Check valves for camshaft adjustment.
9. 10 Nm
10. Valve -1- for camshaft adjustment -N205-*
- Only together with camshaft adjuster item 8, replacing
11. Seal
- Rubber/metal seal
12. Seal
13. Cylinder head
