Display Groups 90 to 97 (Performance Increase)




Measuring Value Blocks, Evaluating Display Groups 90 To 97 (Performance Increase)

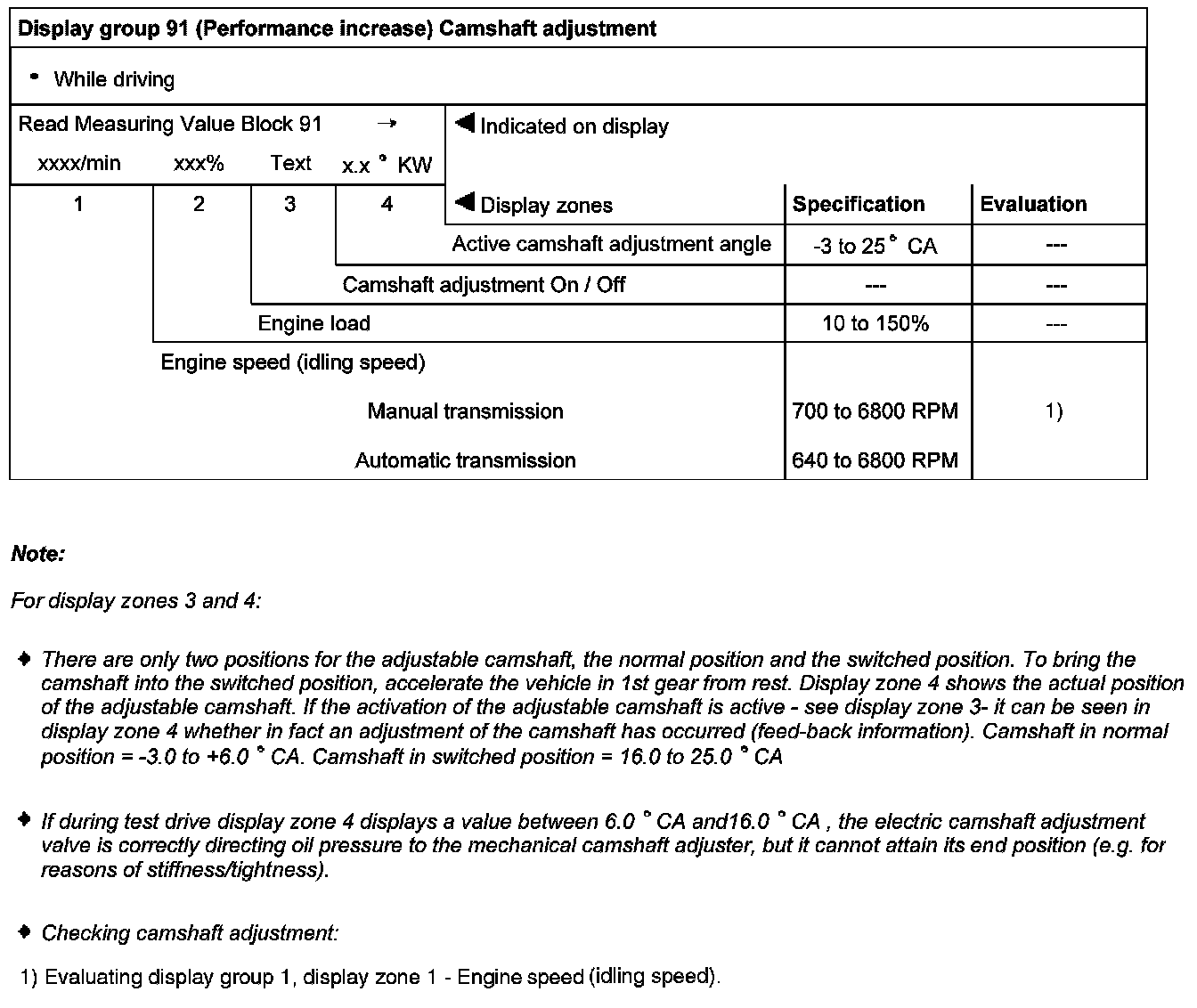

Display group 91 (Performance increase) Camshaft adjustment


Display Group 91:






Display group 94 (Performance increase) Camshaft adjustment


Display Group 94:
