Ignition Key Withdrawal Lock, Checking Operation

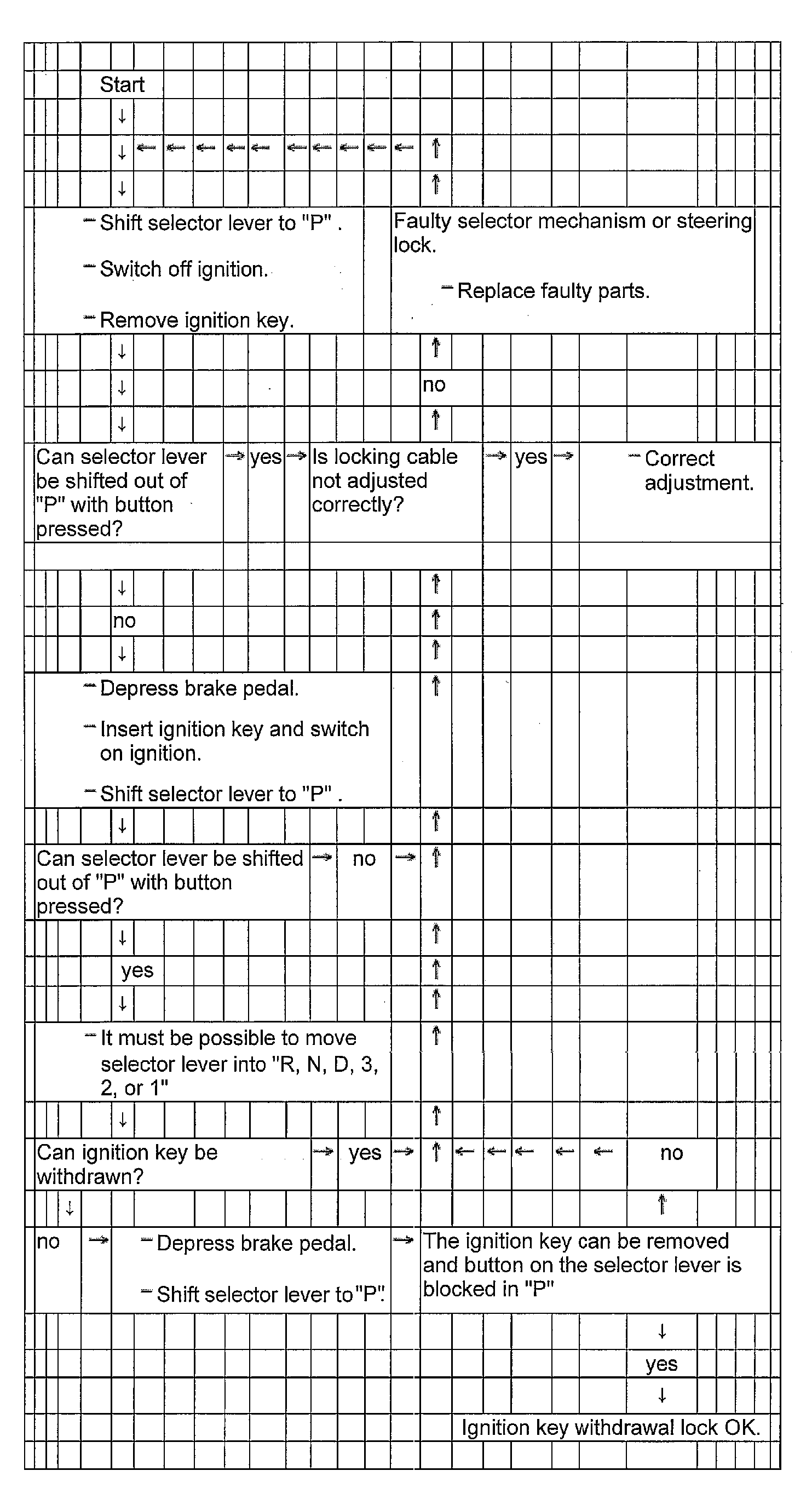

Fig 1: Ignition Key Withdrawal Lock, Checking Operation
G00451815Courtesy of VOLKSWAGEN UNITED STATES, INC.
