Display Groups 10-29 (Ignition)
Measured value blocks, display groups 10...29 - Ignition, evaluating

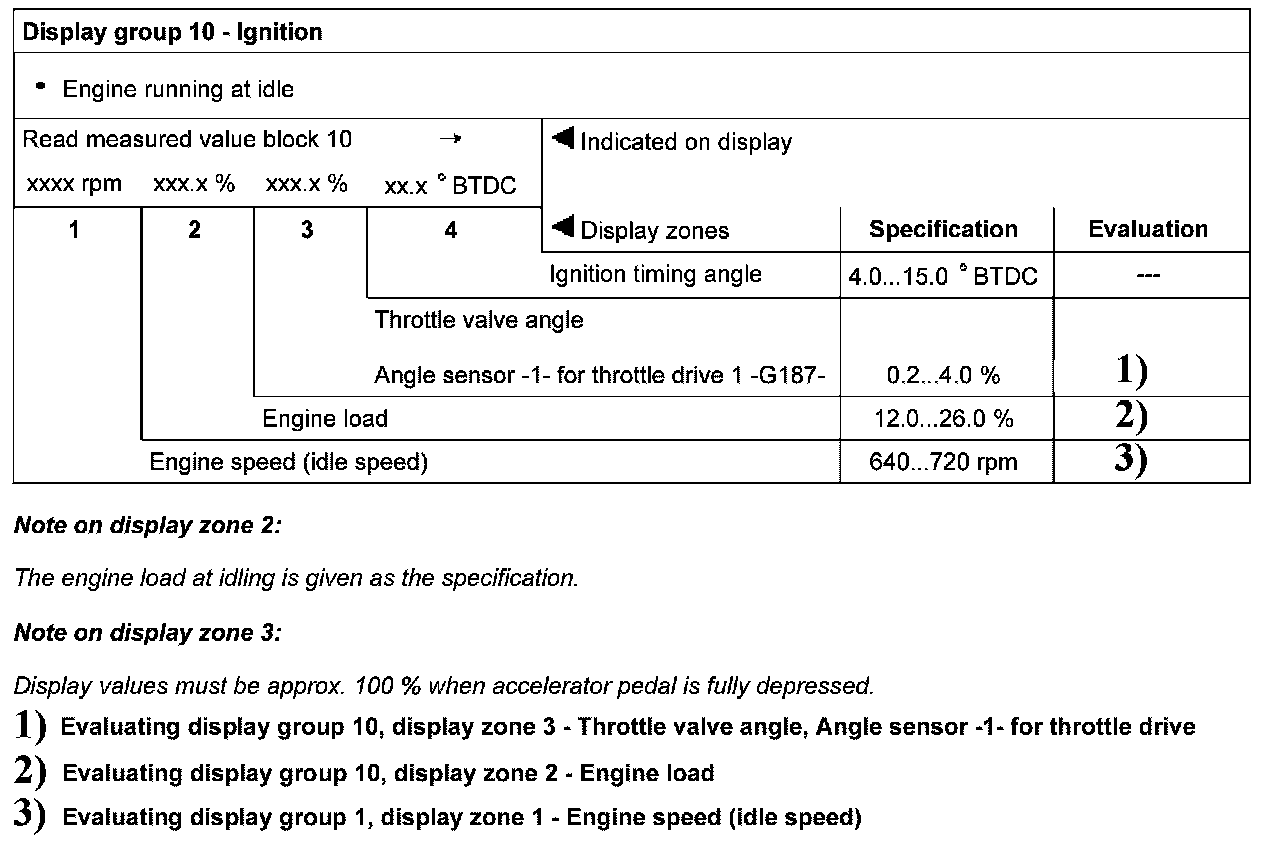

Evaluating display group 10, display zone 2 - Engine load
Evaluating display group 10, display zone 3 - Throttle valve angle, Angle sensor -1- for throttle drive
Display group 14 - Ignition - Misfire detection
Evaluating display group 14, display zone 3 - Total number of misfires
Display group 15 - Ignition - Misfire detection cyl. 1 to cyl. 3
Display group 16 - Ignition - Misfire detection cyl. 4 to cyl. 6
Evaluating display group 15, display zones 1 to 3 or display group 16, display zones 1 to 3 - Ignition misfires cyl. 1 to cyl. 6

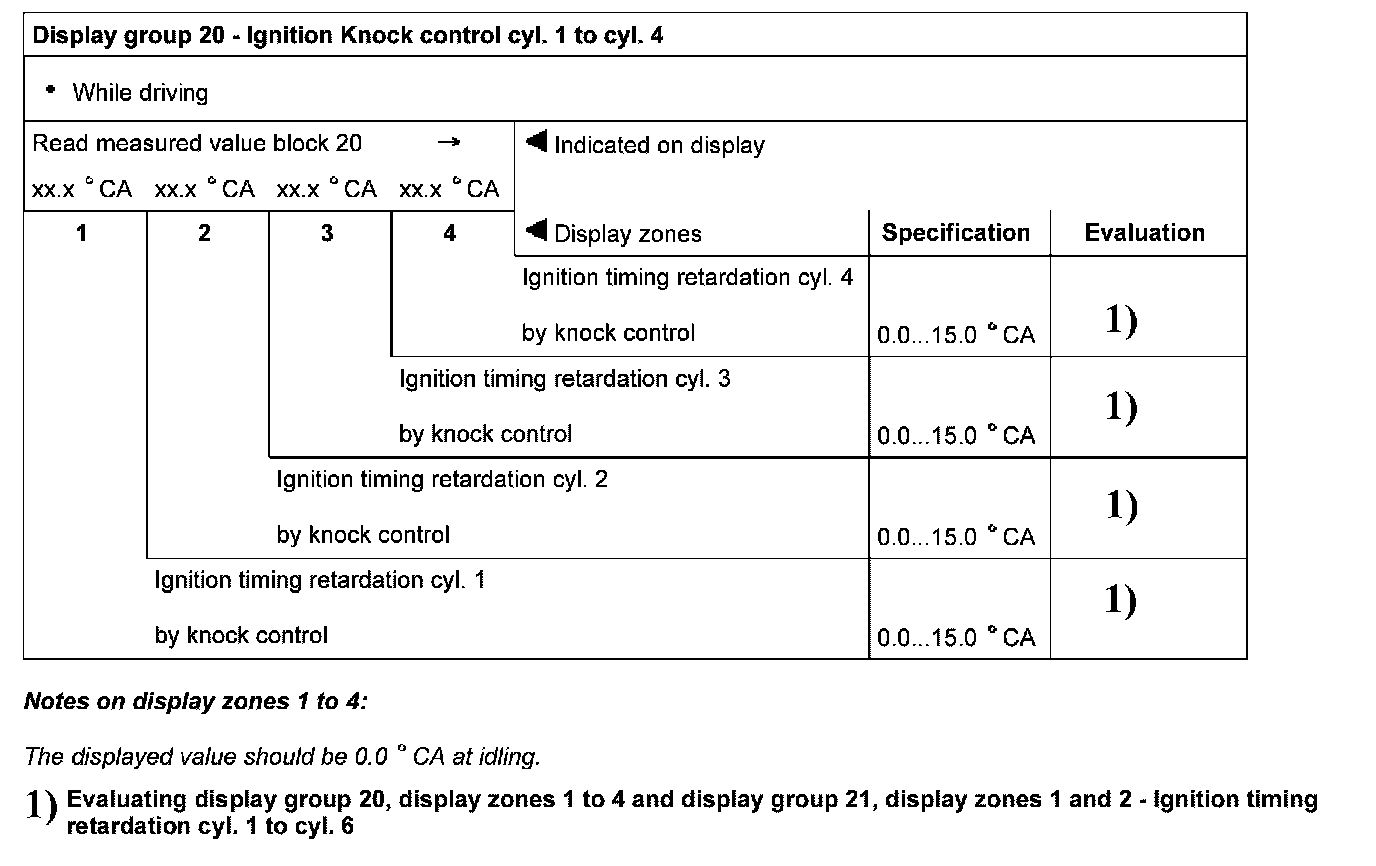

Display group 20 - Ignition - Knock control cyl. 1 to cyl .4
Display group 21 - Ignition - Knock control cyl. 5 to cyl .6
Evaluating display group 20, display zones 1 to 4 and display group 21, display zones 1 and 2 - Ignition timing retardation cyl. 1 to cyl. 6
Display group 22 - Ignition - Knock control cyl. 1 and cyl .2
Display group 23 - Ignition - Knock control cyl. 3 and cyl .4
Display group 24 - Ignition - Knock control cyl. 5 and cyl .6
Evaluating display groups 22 to 24, display zones 3 and 4 - Ignition timing retardation cyl. 1 to 6
Display group 28 - Ignition - Knock control
