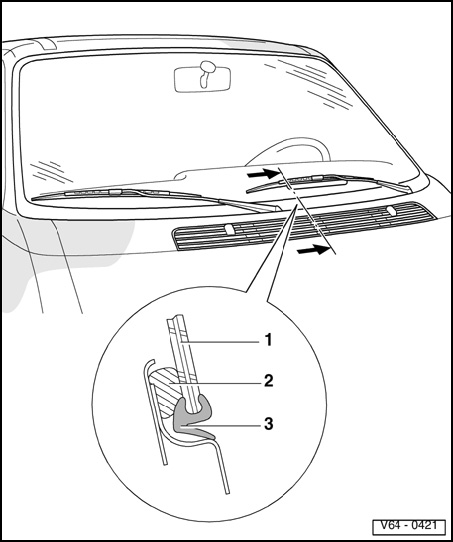

Windshield, Assembly Overview

Windshield, Assembly Overview







1 - Windshield
- Re-sealing

2 - PUR adhesive sealant
- Bead cross section Width = 8 mm (1/3 in.) Height = 13 mm (1/2 in.)
- Curing time

3 - Window molding
- One-piece destroyed during removal
- Mount first before applying adhesive bead
