Lock Cylinder, Removing and Installing

Lock Cylinder, Removing And Installing

Removing

- Removing steering/ignition lock housing

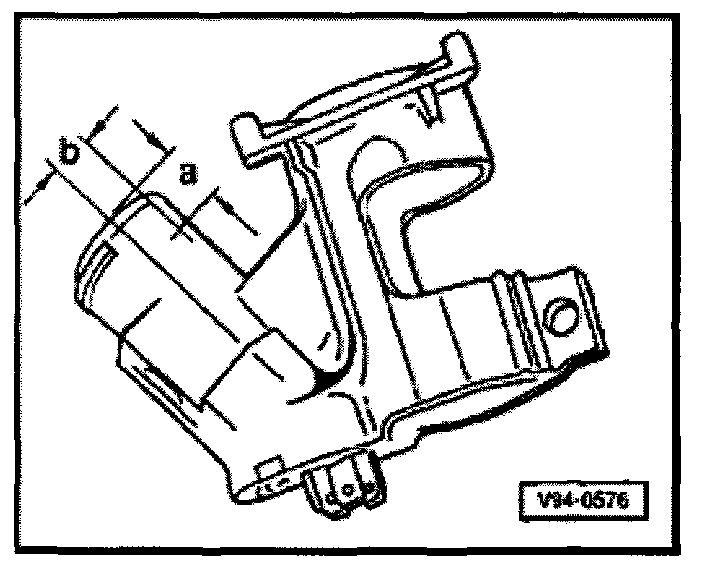

- Mark steering lock housing for drilling

a = 12 mm
b = 10 mm

- Drill steering lock housing with 3 mm drill until lock cylinder spring is evident (hole depth approx. 3 mm).
- Using opposite end of drill compress lock spring and pull out lock cylinder.

Installing







CAUTION!
The original steering/ignition lock housing must not be reinstalled


- Push lock cylinder onto steering lock housing.
- By slightly turning key in lock cylinder it can be pushed onto the stop.
