Electrical And Electronic Components, Locations (With CAN Bus)


CAUTION!
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows.

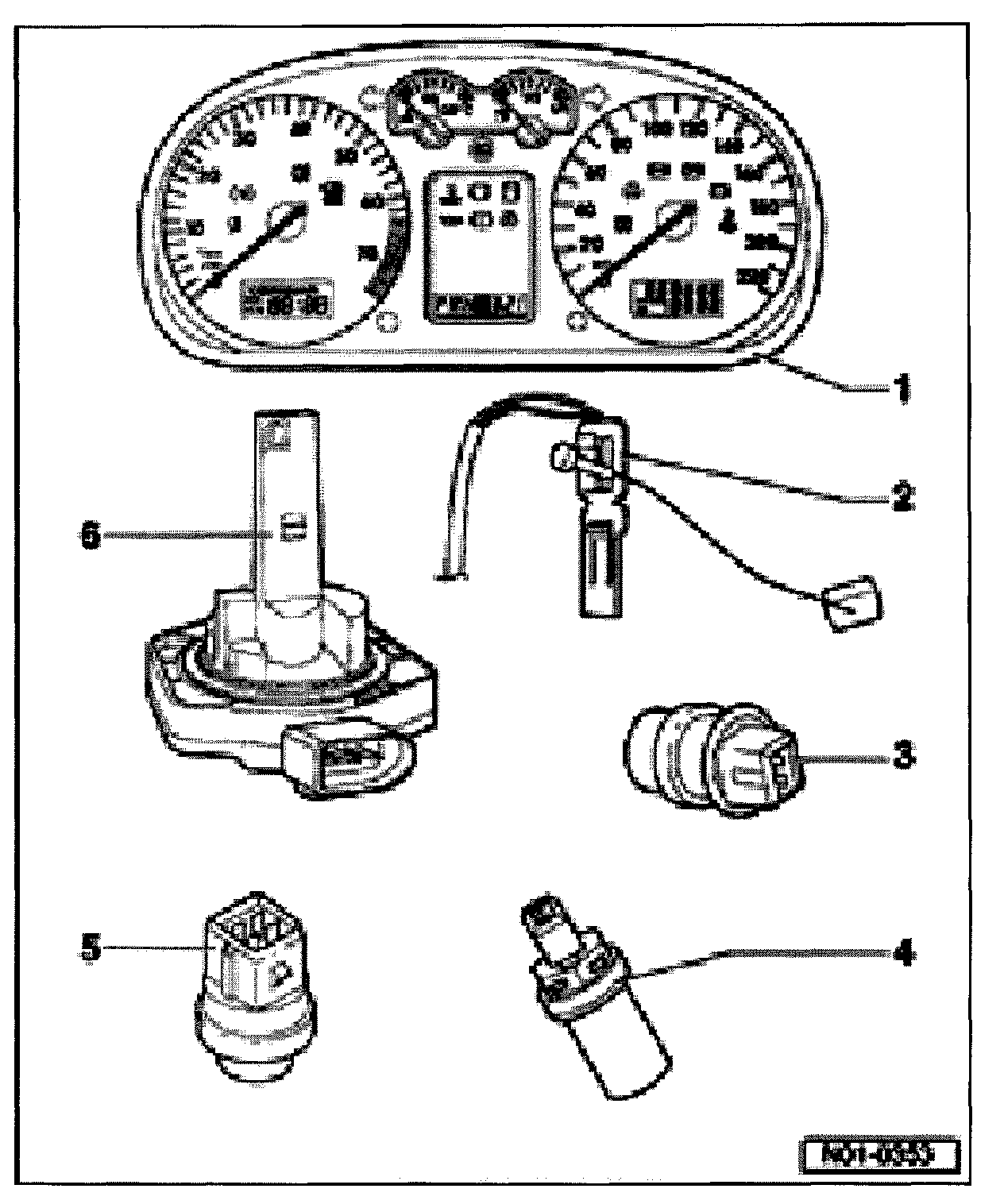

1 - Instrument cluster -K-
- Monitored by OBD

2 - Sender for fuel gauge -G-
- Installation location See Fig. 2
- Monitored by OBD

3 - Outside air temperature sensor -G17-
- Installation location See Fig. 3
- Monitored by OBD

4 - Speedometer - Vehicle Speed Sensor (VSS) -G22-
- Installation location See Fig. 4, See Fig. 5
- Monitored via OBD; Read measuring value block

5 - Engine Coolant Temperature (ECT) sensor -G2-
- Installation location
- Monitored by OBD

6 - Oil level thermal sensor -G266- (where applicable)

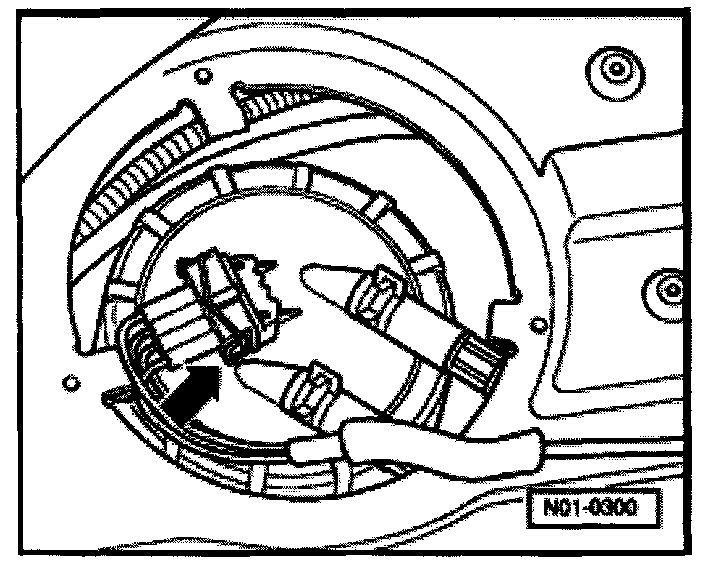

Fig. 2 Sender for fuel gauge -G-







Sender for fuel gauge -G- is located in fuel tank at fuel pump -arrows-.
Removing and installing Fuel Pump (FP).

Fig. 3 Outside air temperature sensor -G17-







Outside air temperature sensor -G17- is located below front bumper at right -arrow-.

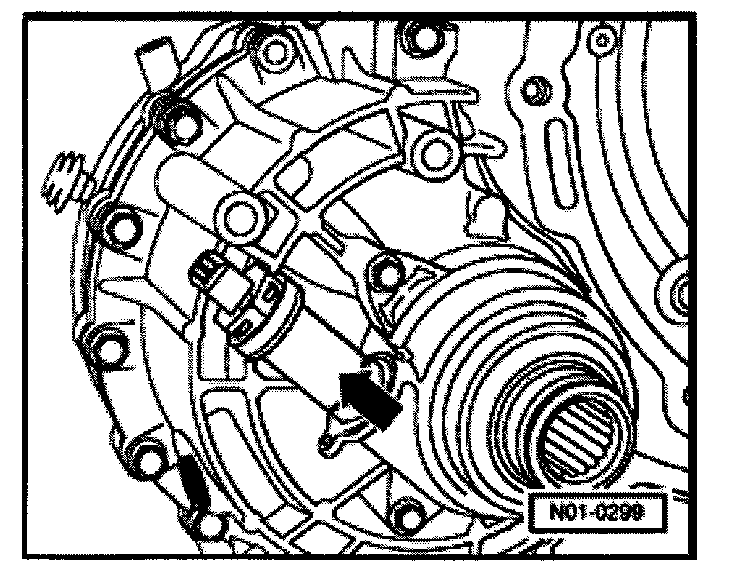

Fig. 4 Speedometer Vehicle Speed Sensor (VSS) -G22- for vehicles with manual transmission







Speedometer Vehicle Speed Sensor (VSS) -arrow- is installed near right drive axle flange on vehicles with manual transmission.

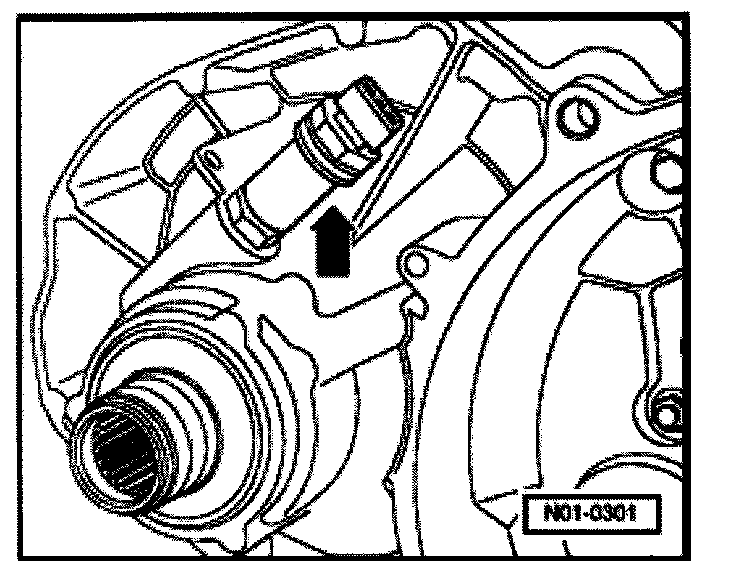

Fig. 5 Speedometer Vehicle Speed Sensor (VSS) -G22- for vehicles with automatic transmission







Speedometer Vehicle Speed Sensor (VSS) -arrow- is installed near right drive axle flange on vehicles with automatic transmission.
