Heating & A/C Controls Remove/Install Manual Heating & A/C

Heating & A/C Controls, Assembly

Heating & A/C Controls, Removing And Installing

Removing:

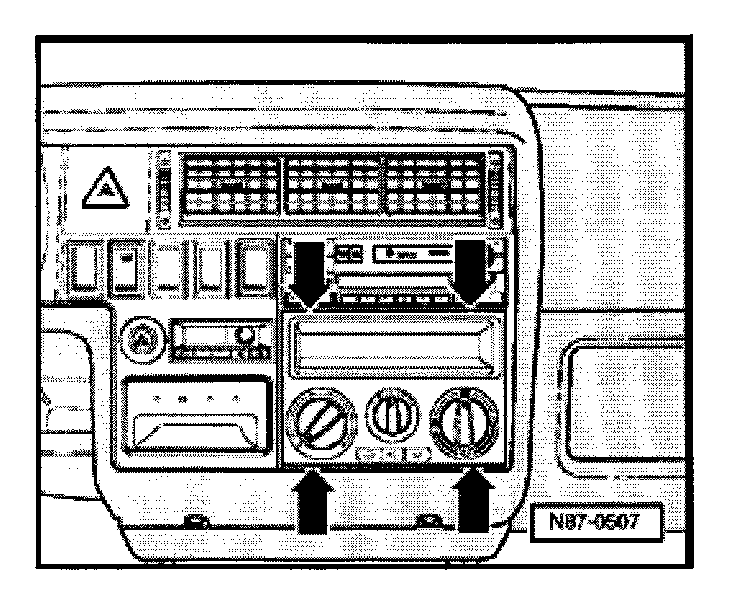

- Carefully remove trim panel locating lugs -arrows- with a screwdriver. Take care not to damage instrument panel.

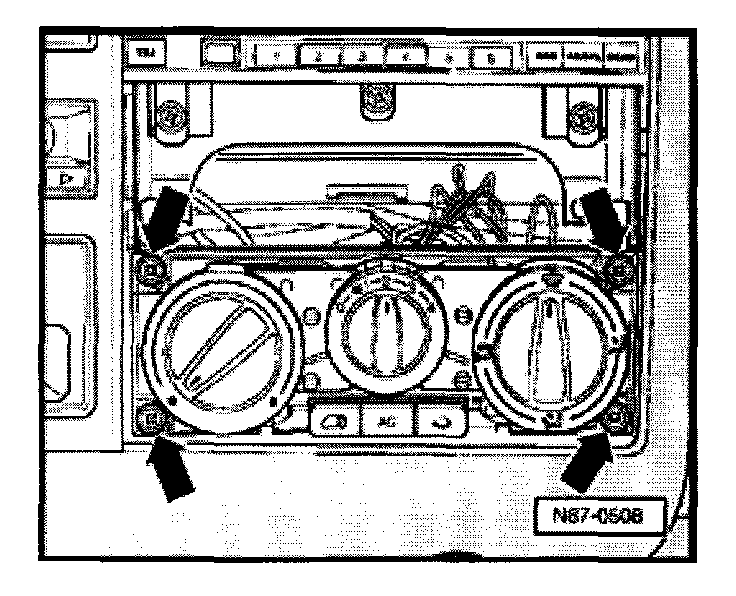

- Remove screws from instrument trim panel -arrows-.
- Push controls with cables attached below the instrument panel.
- Disconnect electrical connectors.
- Detach cables from controls.

Installing:
Install in reverse sequence, noting the following
- Before installing controls, attach cables first.
