Heating/Ventilation Controls and Trim Panel, Removing/Install

Heating/Ventilation Controls And Trim Panel, Removing And Installing







Removing:

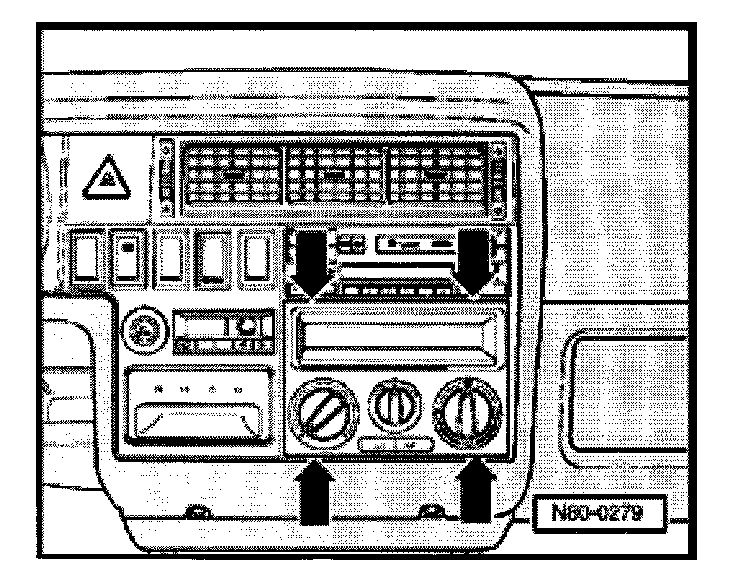

- Carefully remove trim panel at locating lugs -arrows- with a screwdriver. Take care not to damage instrument panel.

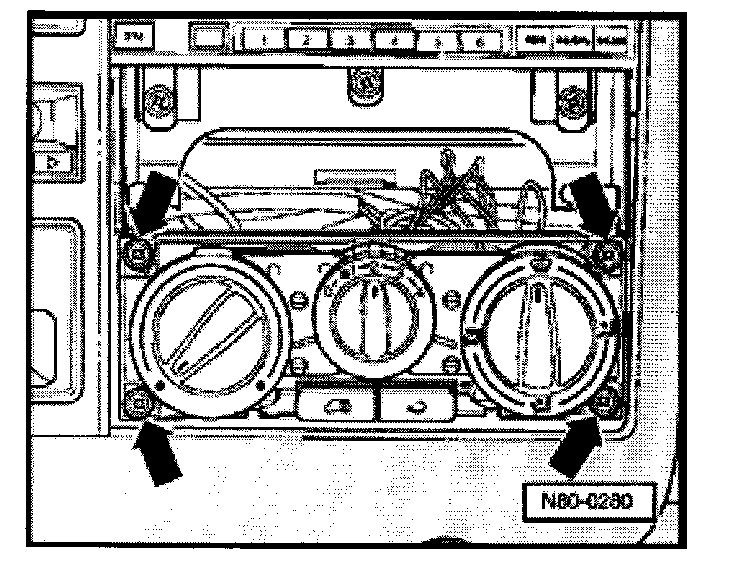

- Remove screws -arrows-
- Push controls (with cables attached) under instrument panel.
- Disconnect electrical connections.
- Detach cables from controls.

Installing:
- Install in reverse order, noting the following:
- Before installing controls, attach cables first.
