Symbols For Welding Operations

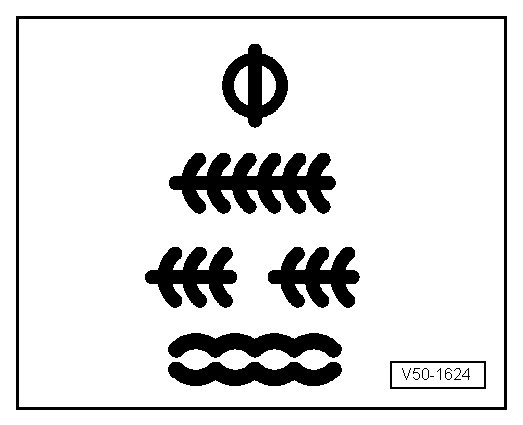

Symbols for Welding Operations

RP Spot welded seam (single row) RP = spot welding

RP Spot welded seam (double row)

RP Spot welded seam (double row offset)

SG Plug weld seam SG = Shielded arc welding

SG Stepped seam





SG Continuous seam

SG Continuous seam (staggered)

Brazing
