Planetary Transmission, Overview Of All Adjustments

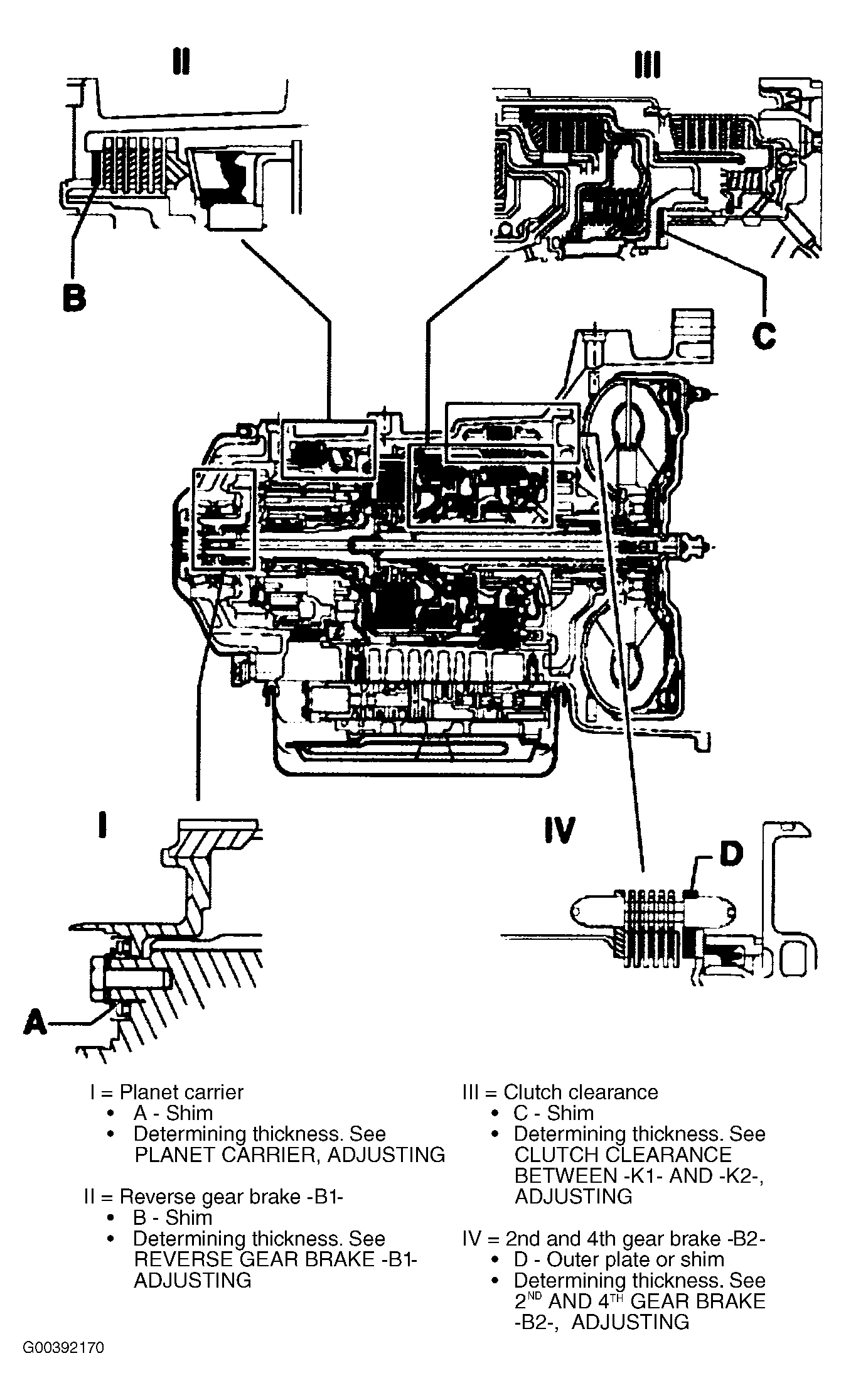

Fig 1: Overview Of Planetary Transmission Adjustments
G00392170Courtesy of VOLKSWAGEN UNITED STATES, INC.
