Freewheel With -B1- Piston, Disassembling And Assembling: Notes

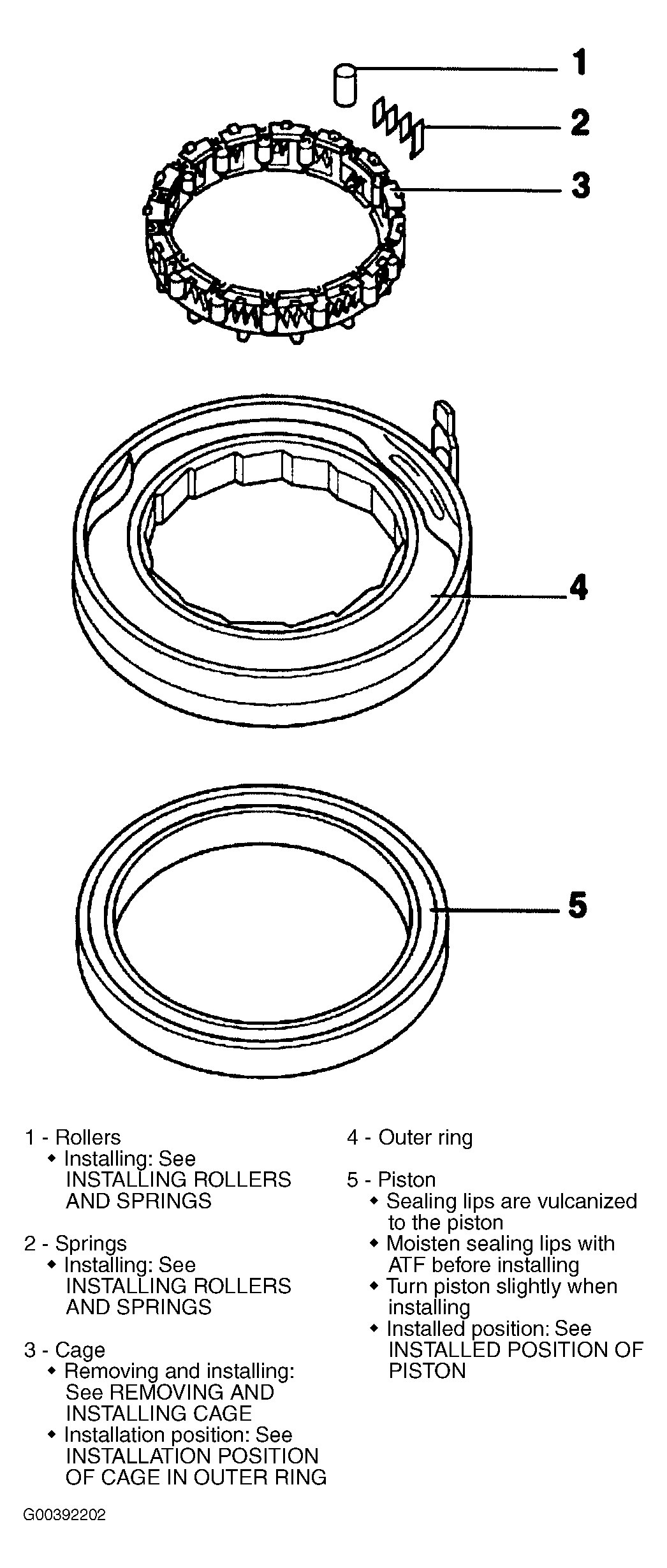

Fig 1: Overview Of Freewheel With -B1- Piston
G00392202Courtesy of VOLKSWAGEN UNITED STATES, INC.
