Special Tools And Equipment

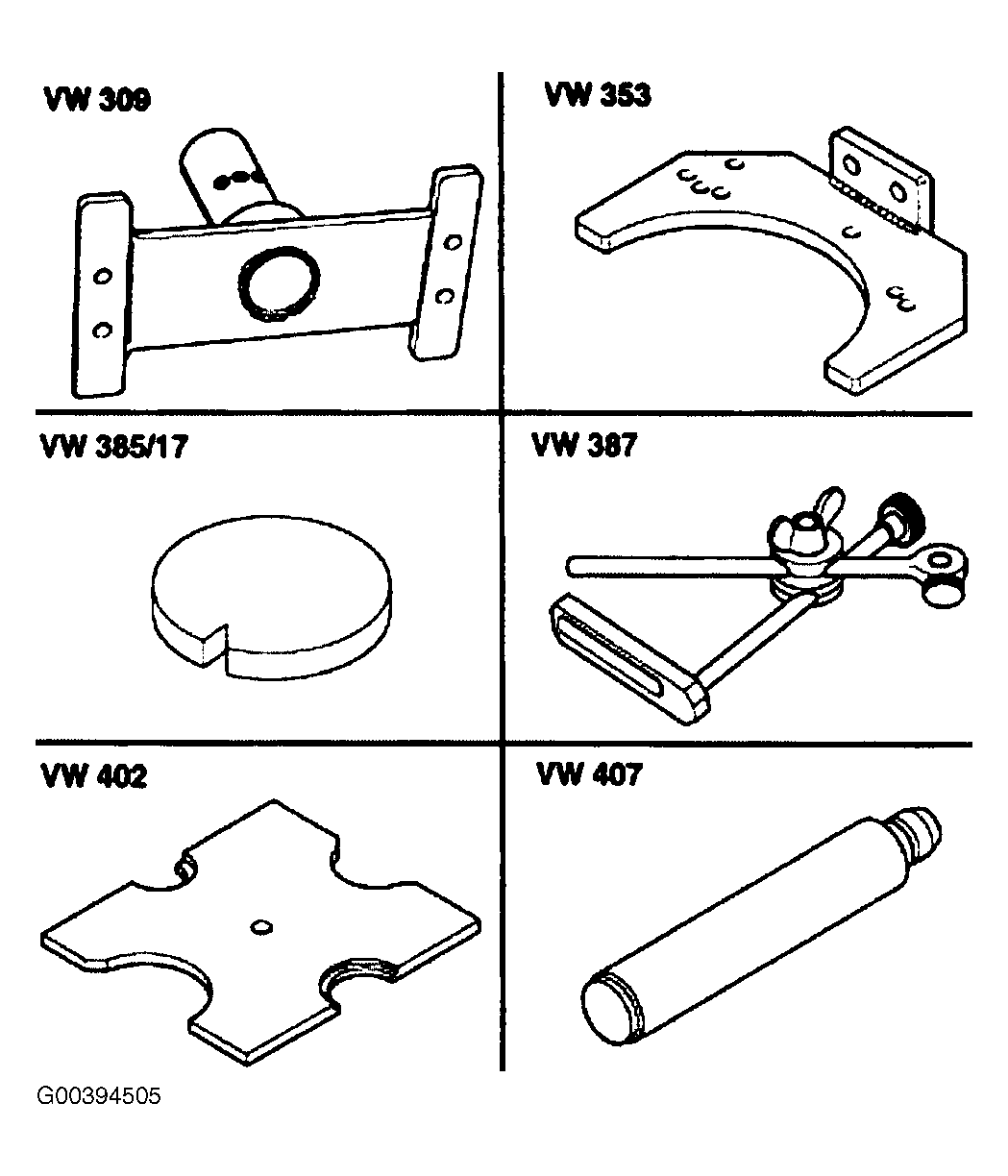

- VW 309 Holding plate
- VW 353 Transmission support
- VW 385/17 End measuring plate
- VW 387 Universal dial gauge bracket
- VW 402 Thrust plate
- VW 407 Press tool

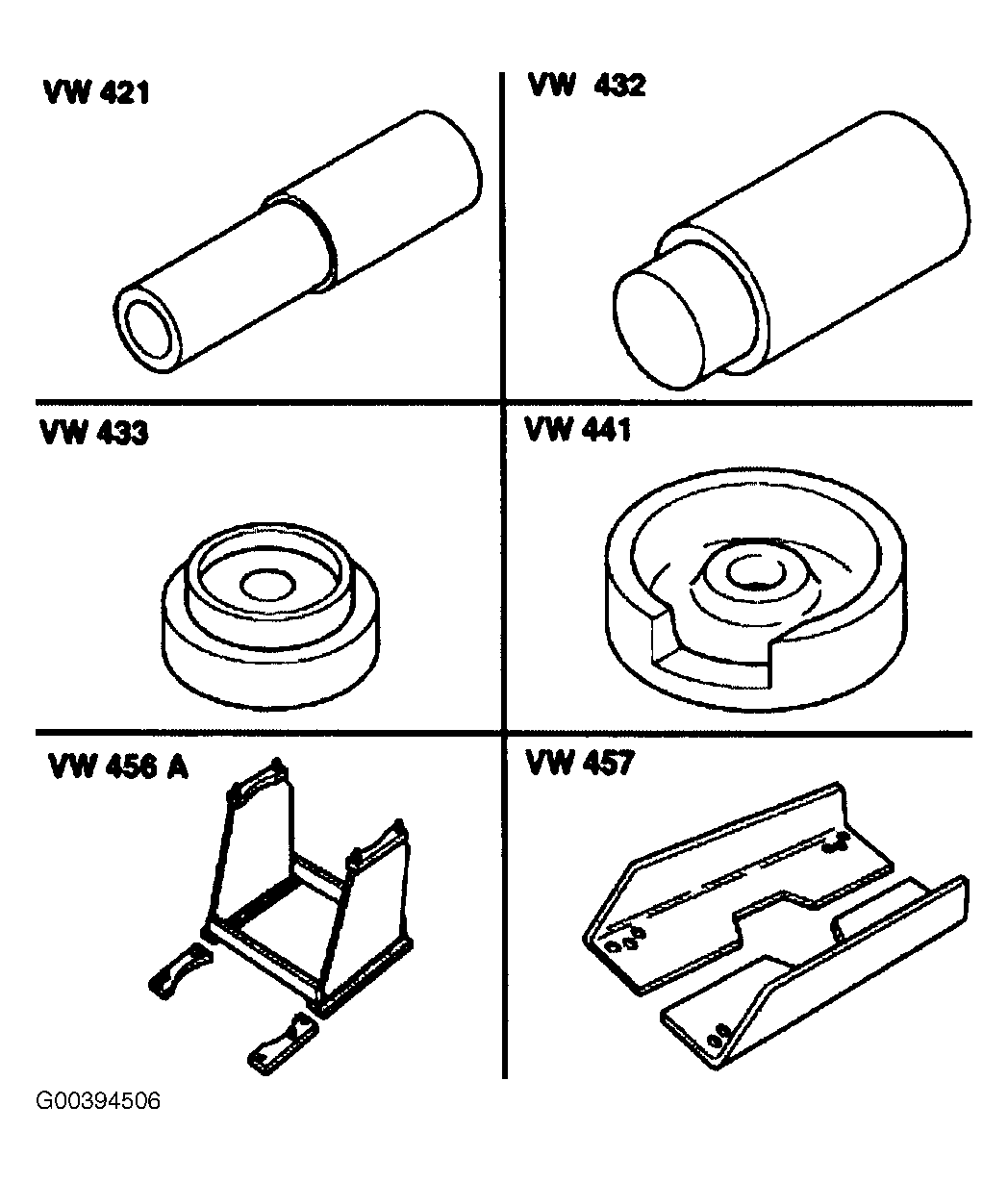

- VW 421 Tube
- VW 432 Press piece
- VW 433 Press tool
- VW 441 Base plate
- VW 456 A Gear carrier support
- VW 457 Support rails

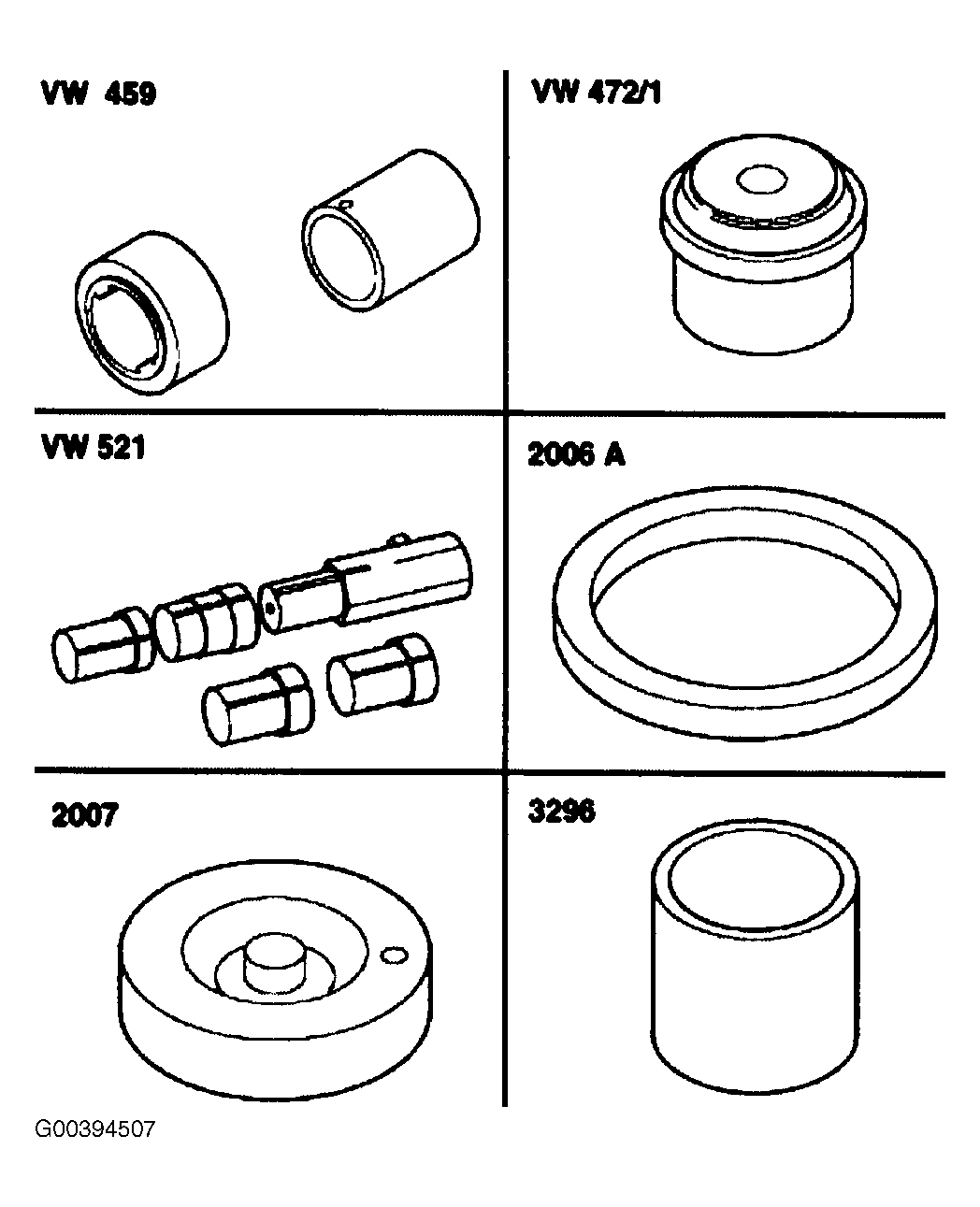

- VW 459/1 Installing and removing tool
- VW 472/1 Thrust piece
- VW 521 Ring gear adjusting device
- 2006 A Thrust ring
- 2007 Thrust pad
- 3296 Tube
- VAG 1331 Torque wrench. See Figure
.
- Kukko 21/7 Inner puller (1). See Figure
.
- Kukko 22/2 Support (4). See Figure
.
