DTCS 00545 & 00596

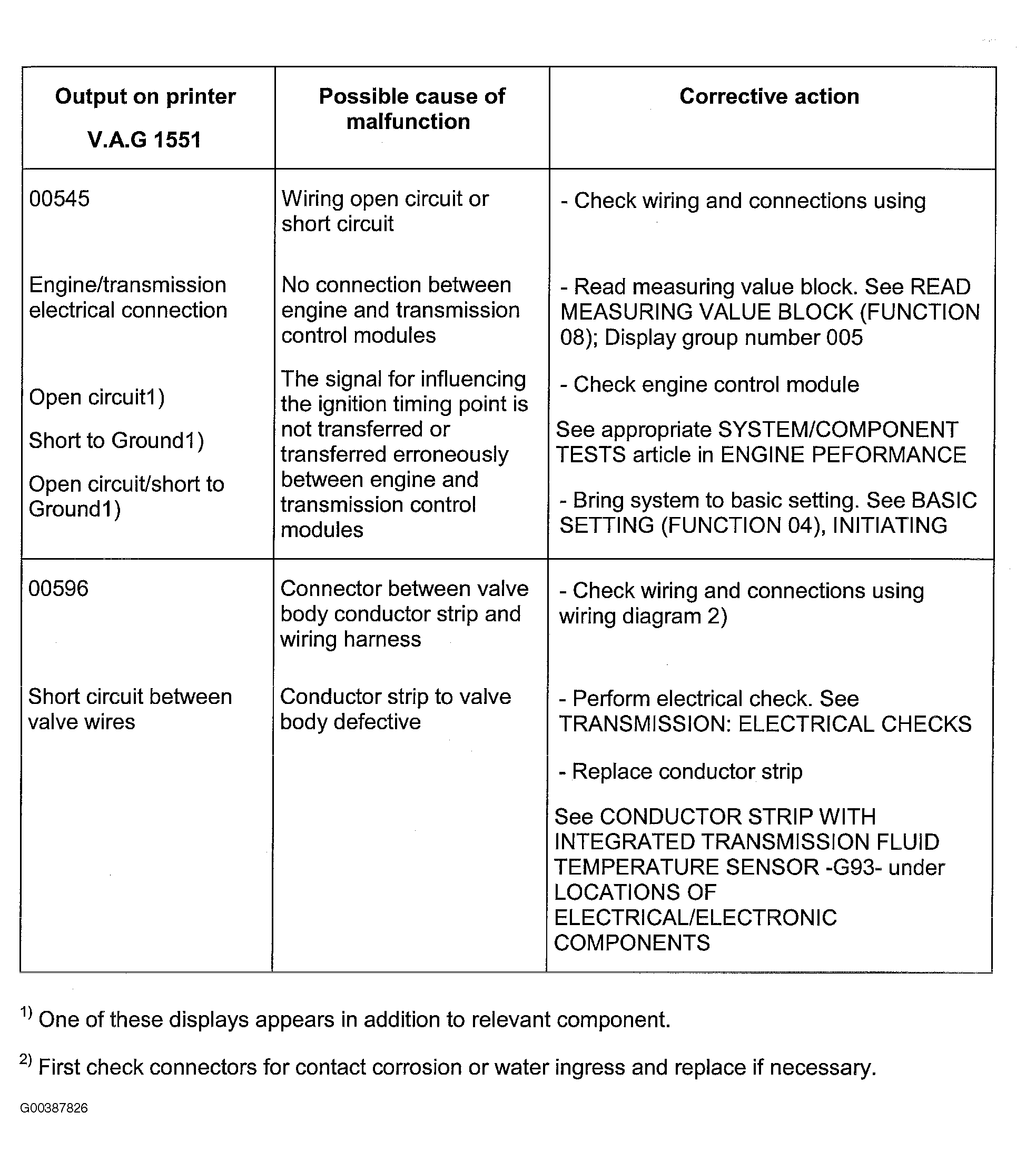

Fig 1: DTCs 00545 &00596
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
