GFF System Test (TT 01-11-07)

Publication date: 2011-06-17
Reference number: TT 01-11-07

GFF SYSTEM TEST

TECH TIPS

Reference Number(s): TT 01-11-07, Date of Issue: June 17, 2011

VOLKSWAGEN:	All Models
GROUP:	01 - On-Board Diagnostic

SERVICE INFORMATION

All Models - GFF System Test

If a test plan is not available for a system that is known to be equipped on the vehicle, check that the GFF system test has highlighted the system (example below, 8C for Hybrid battery energy management is not selected). If the system is not highlighted, select the system and forward into GFF. Check if a function test is now available.

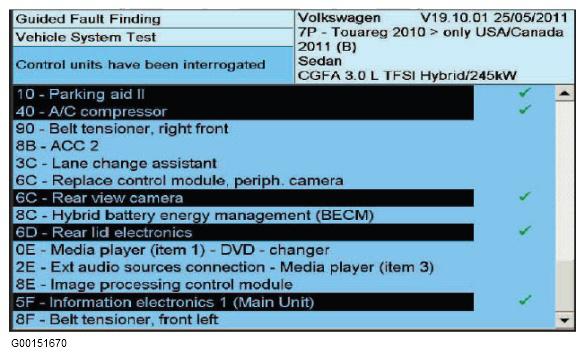

Fig 1: GFF System Test Plans - Example
