Adaptation (Function 10): Notes

Use this function to initiate and store the following changes:

Adaptation of odometer reading when replacing/exchanging instrument cluster
Adaptation of fuel gauge reading
Adaptation of MFI fuel consumption indicator (where applicable).

Individual function are called up using the appropriate channel number from adaptation table. See Fig 1 .

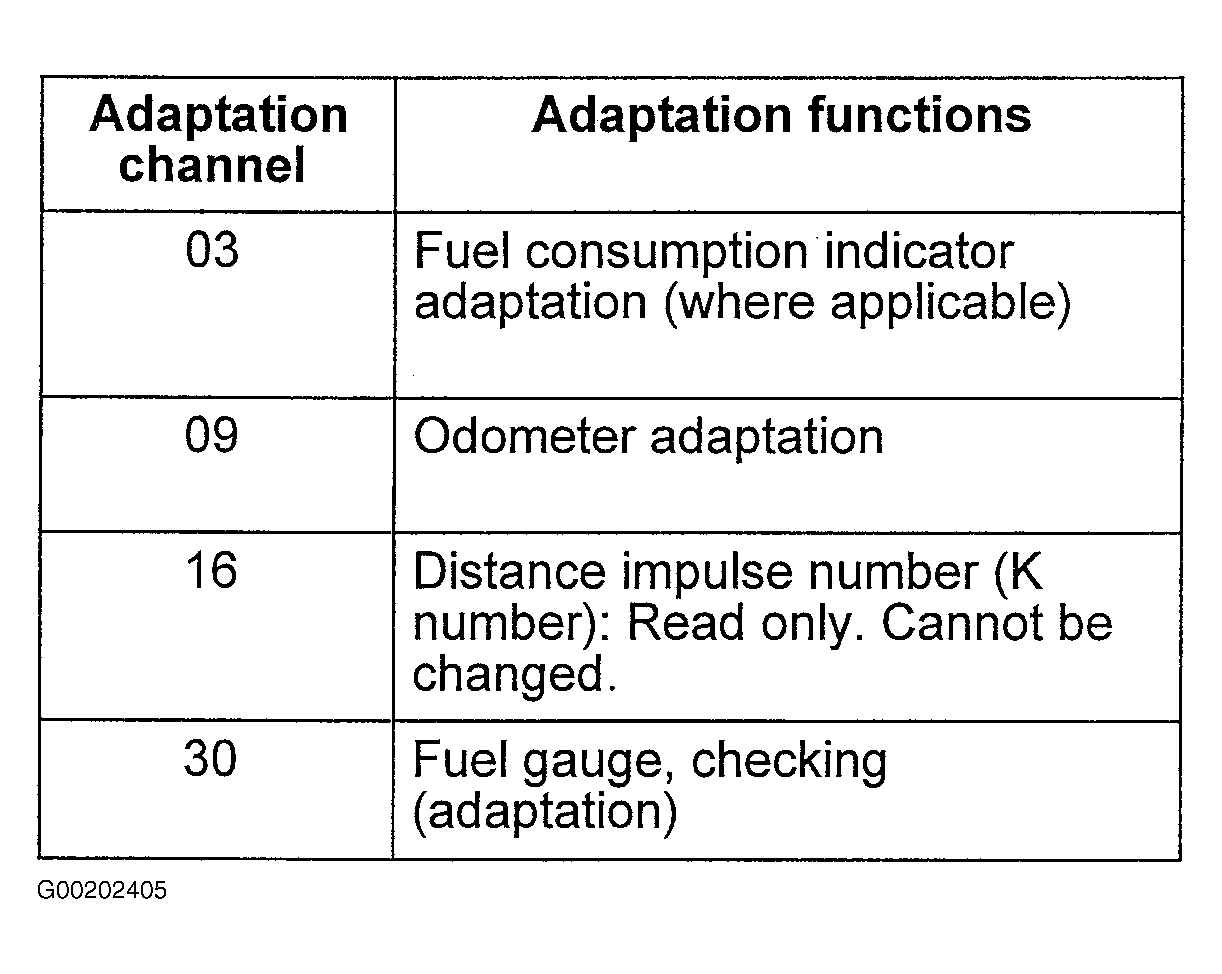

Fig 1: Identifying Adaptation Table

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: After changing an adaptation value or ending an adaptation channel, the function "10-Adaptation" must be performed to select another adaptation channel.
