Connector Identification

NOTE: Connector assignment are defendant on equipment and market installed.

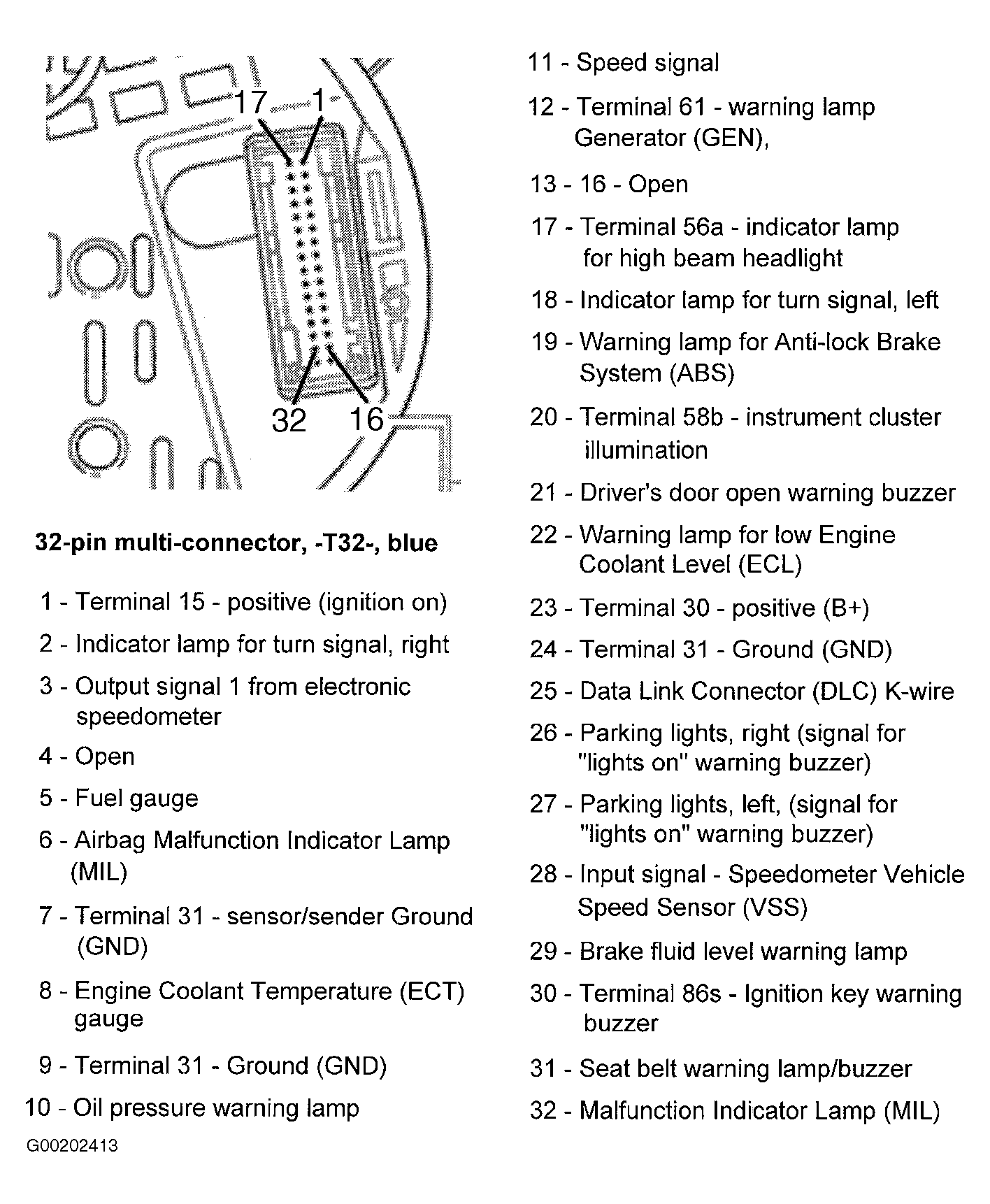

Fig 1: Identifying Blue 32-Pin Multi-Connector (T32)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

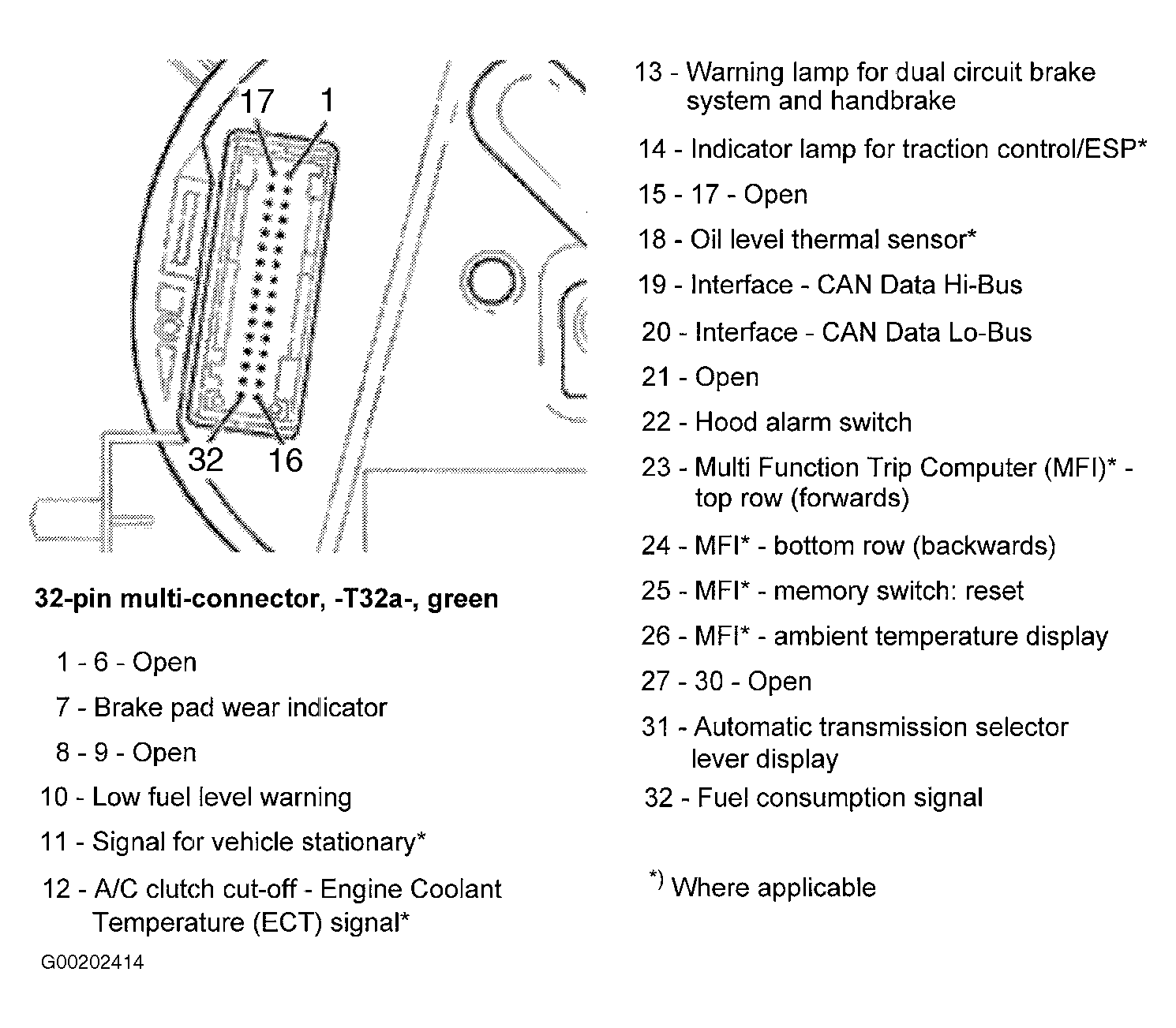

Fig 2: Identifying Green 32-Pin Multi-Connector (T32a)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

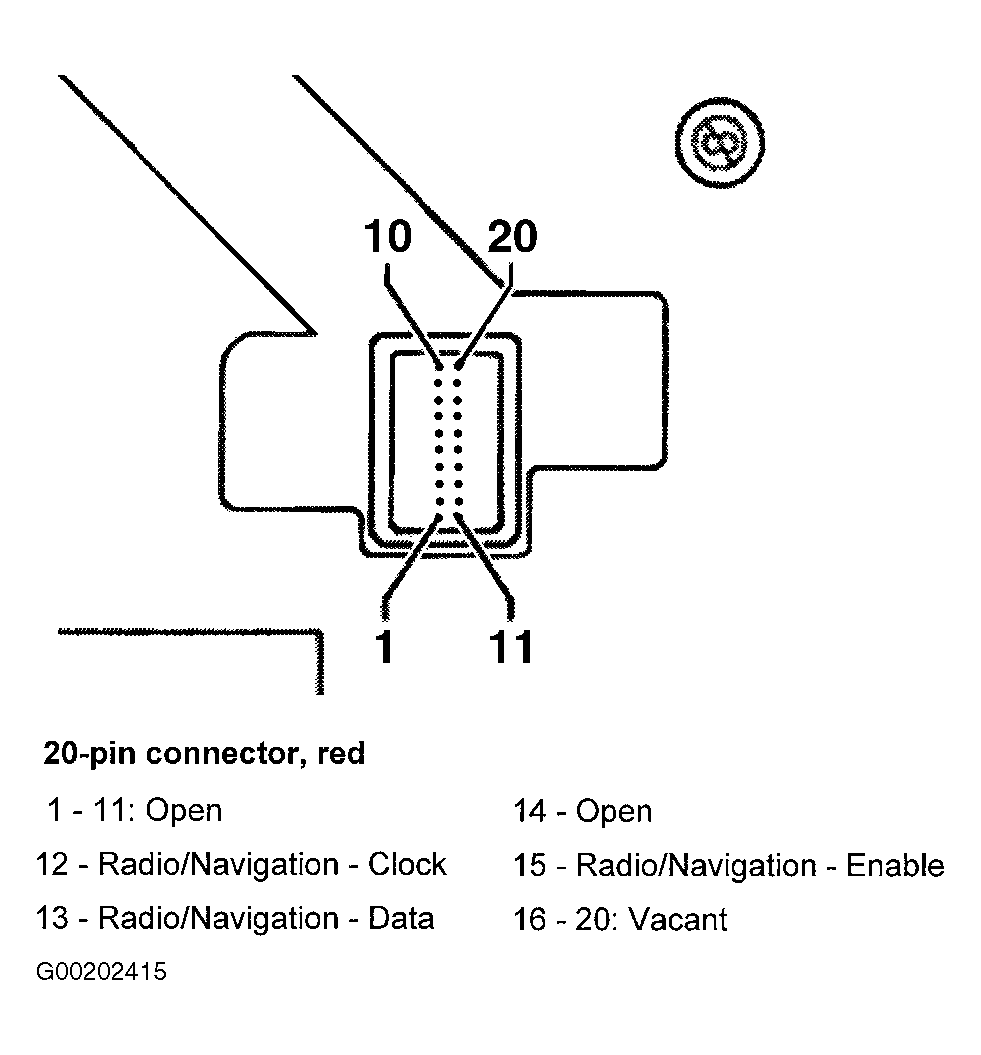

Fig 3: Identifying Red 20-Pin Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.
