Component Locations

COMPONENT LOCATIONS

Component Location
Data Link Connector Figure On Steering Column Lower Trim
Digital Clock Fig 1 Inside Tachometer
Emergency Flasher Switch Fig 2 Center Of Instrument Panel
Engine Coolant Temperature Gauge Fig 1 Top Of Instrument Cluster, Near Fuel Gauge
ESP/ASR Switch Fig 1 Center Of Instrument Panel
Fuel Gauge Fig 1 Top Of Instrument Cluster, Near Engine Coolant Temperature Gauge
Fuel Gauge Sending Unit Fig 3 In Fuel Tank, At Fuel Pump
Headlight Switch Fig 4 Left Side Of Instrument Panel, Between Steering Wheel & Door
Heated Seat Switches Fig 5 Center Of Instrument Panel
Instrument Cluster Behind Steering Wheel
Instrument Illumination Fig 4 Left Side Of Instrument Panel, Between Steering Wheel & Door
Odometer/Trip Odometer Fig 1 Inside Speedometer
Outside Air Temperature Sensor Fig 6 Below Right Side Of Front Bumper
Rear Window Defogger Fig 7 Center Of Instrument Panel
Selector Lever Position Display (Vehicles With Automatic Transmission Only) Fig 1 Bottom Center Of Instrument Cluster
Speedometer Fig 1 Right Side Of Instrument Cluster
Speedometer Vehicle Speed Sensor (Man. Trans.) Fig 8 Near Right Drive Axle Shaft Flange
Speedometer Vehicle Speed Sensor (Auto. Trans.) Fig 9 Near Right Drive Axle Shaft Flange
Tachometer Fig 1 Right Side Of Instrument Cluster

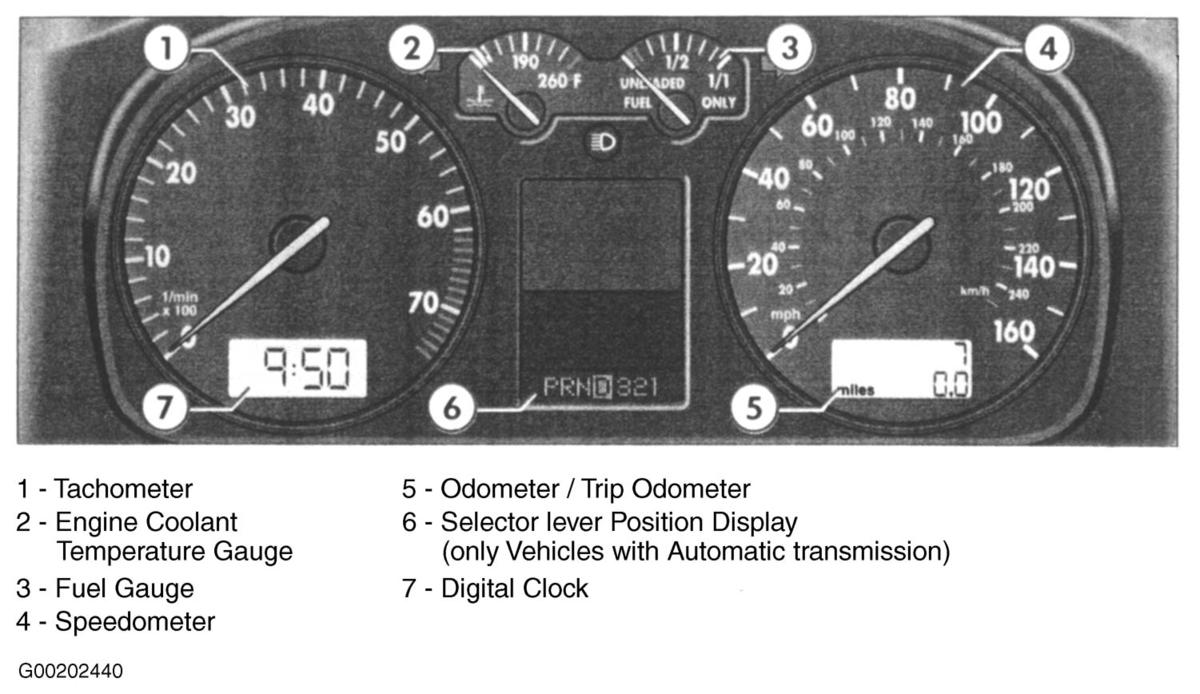

Fig 1: Locating Instrument Cluster Components
G00202440Courtesy of VOLKSWAGEN UNITED STATES, INC.

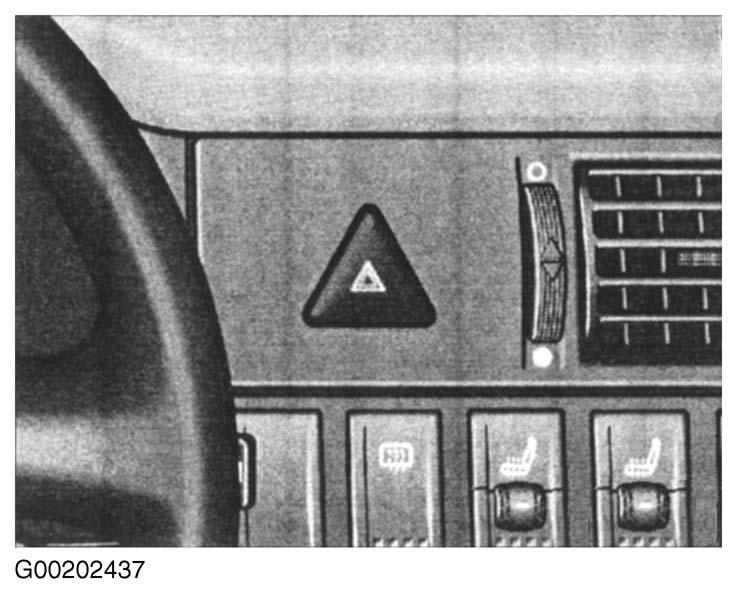

Fig 2: Locating Emergency Flasher Switch
G00202437Courtesy of VOLKSWAGEN UNITED STATES, INC.

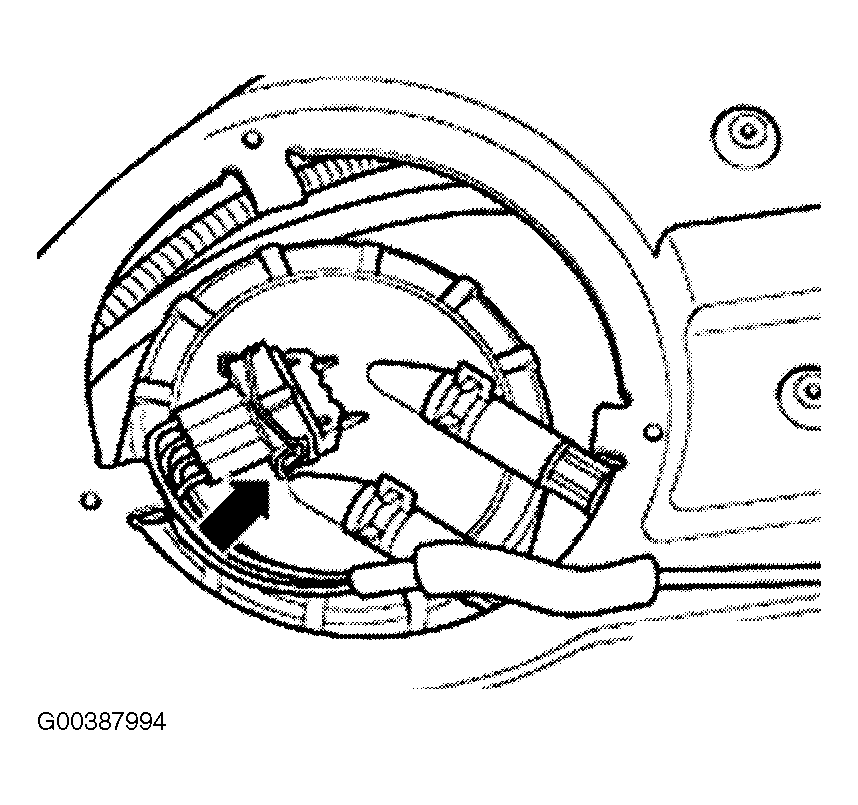

Fig 3: Locating Fuel Gauge Sending Unit
G00387994Courtesy of VOLKSWAGEN UNITED STATES, INC.

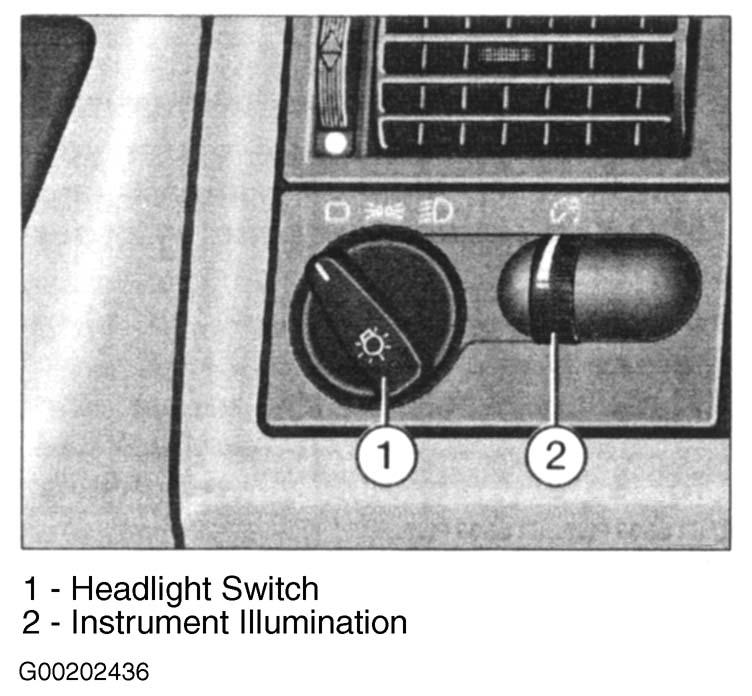

Fig 4: Locating Headlight & Instrument Illumination
G00202436Courtesy of VOLKSWAGEN UNITED STATES, INC.

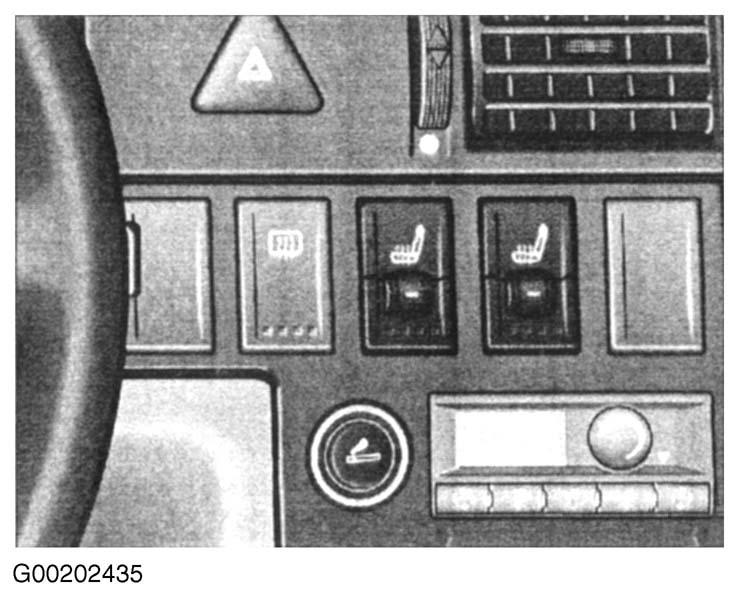

Fig 5: Locating Heated Seat Switches
G00202435Courtesy of VOLKSWAGEN UNITED STATES, INC.

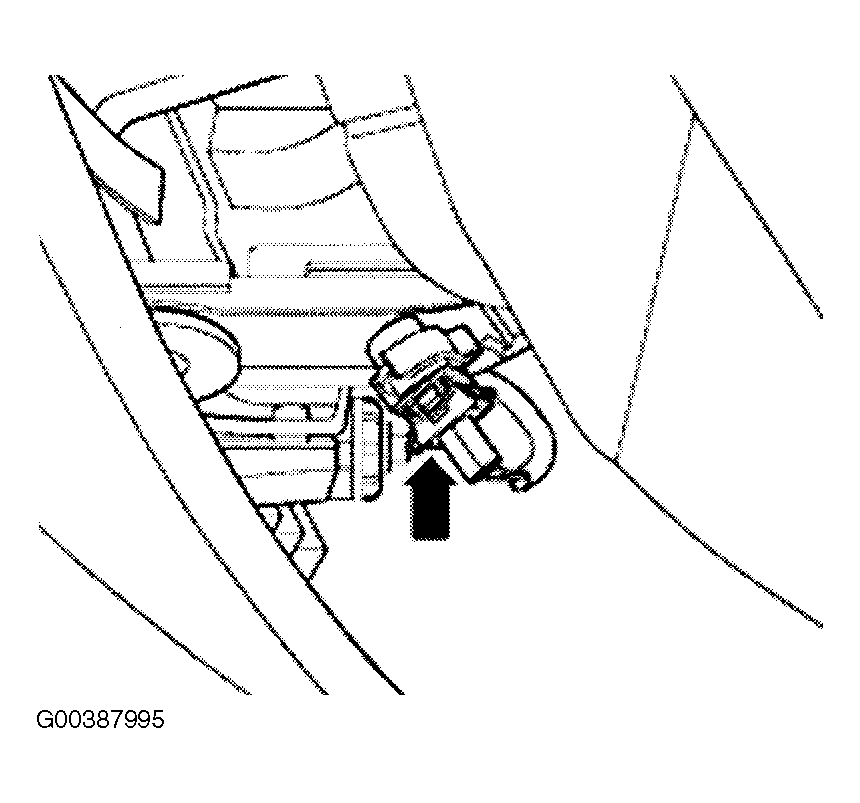

Fig 6: Locating Outside Air Temperature Sensor
G00387995Courtesy of VOLKSWAGEN UNITED STATES, INC.

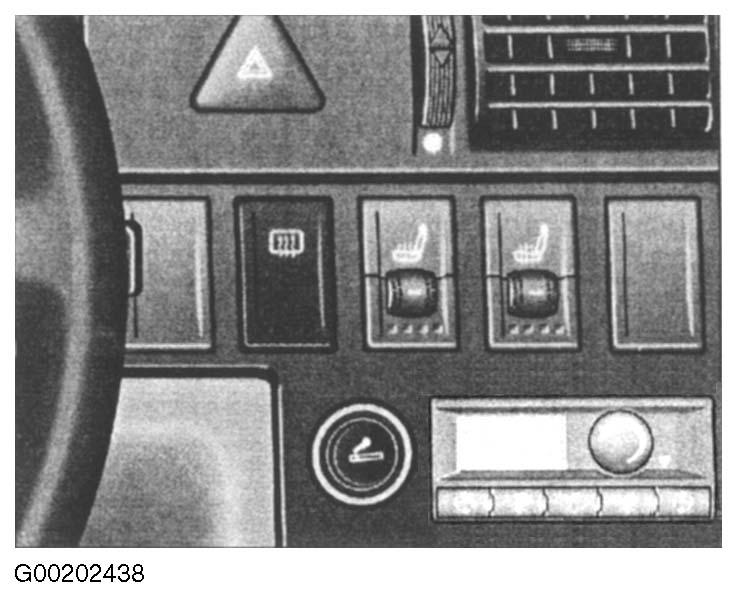

Fig 7: Rear Window Defogger Switch
G00202438Courtesy of VOLKSWAGEN UNITED STATES, INC.

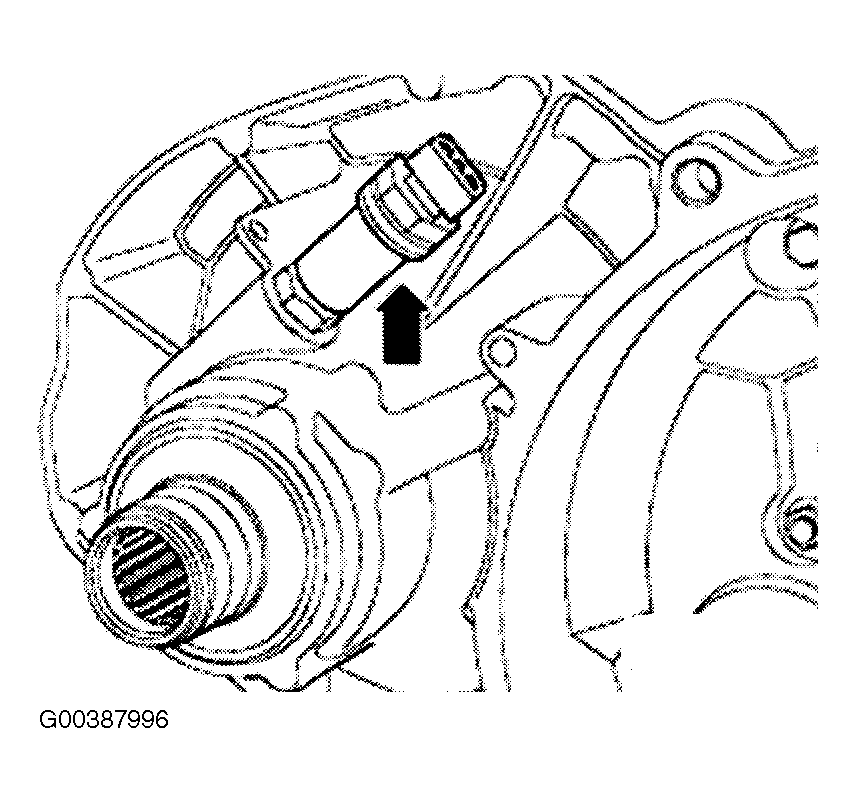

Fig 8: Locating Speedometer Vehicle Speed Sensor (Man. Trans.)
G00387996Courtesy of VOLKSWAGEN UNITED STATES, INC.

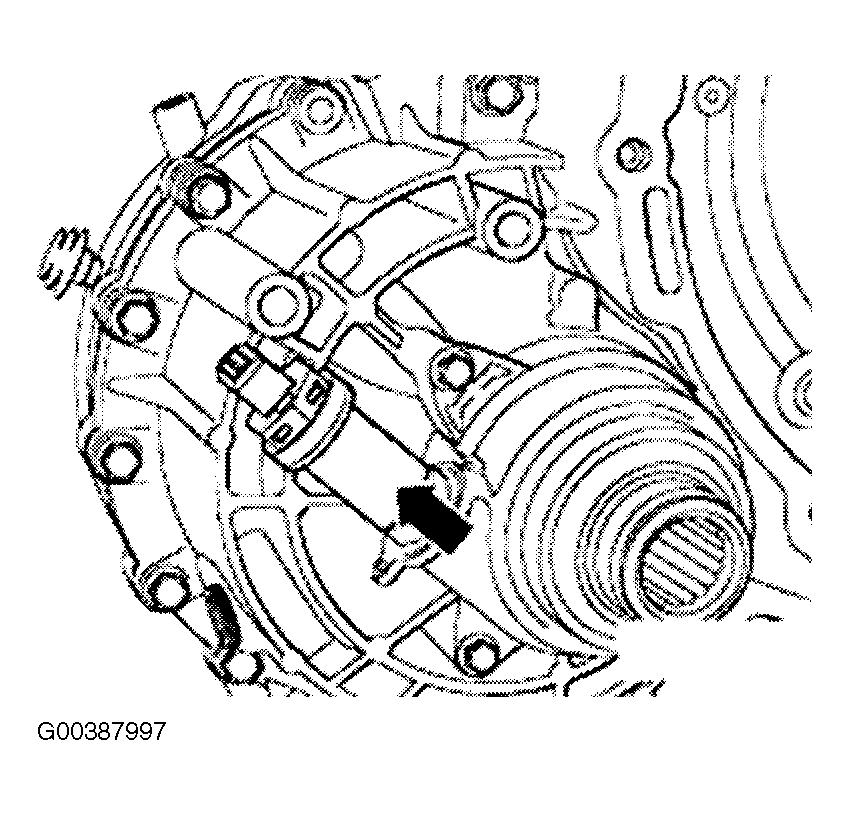

Fig 9: Locating Speedometer Vehicle Speed Sensor (Auto. Trans.)
G00387997Courtesy of VOLKSWAGEN UNITED STATES, INC.
