Relay Panel

Relay panel is located behind driver's side of dash, behind storage compartment. For relay number, position number and circuits protected, see RELAY IDENTIFICATION (RELAY PANEL)  table. For positions on relay panel, see Fig 1 . For locations of relays, see Fig 2 -Fig 8 .

Fig 1: Identifying Relay Panel Relays

Courtesy of VOLKSWAGEN UNITED STATES, INC.

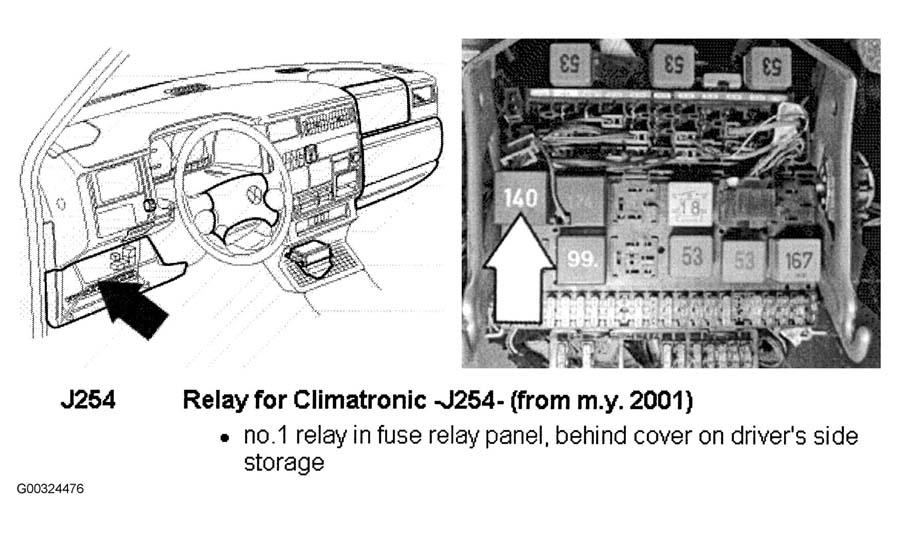

Fig 2: Locating Climatronic Fan Relay

Courtesy of VOLKSWAGEN UNITED STATES, INC.

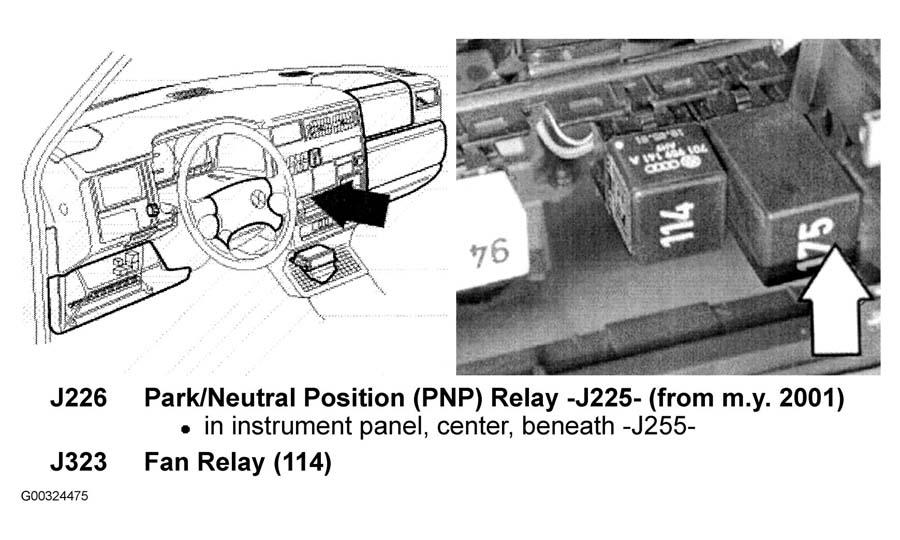

Fig 3: Locating Park/Neutral Position & Fan Relays

Courtesy of VOLKSWAGEN UNITED STATES, INC.

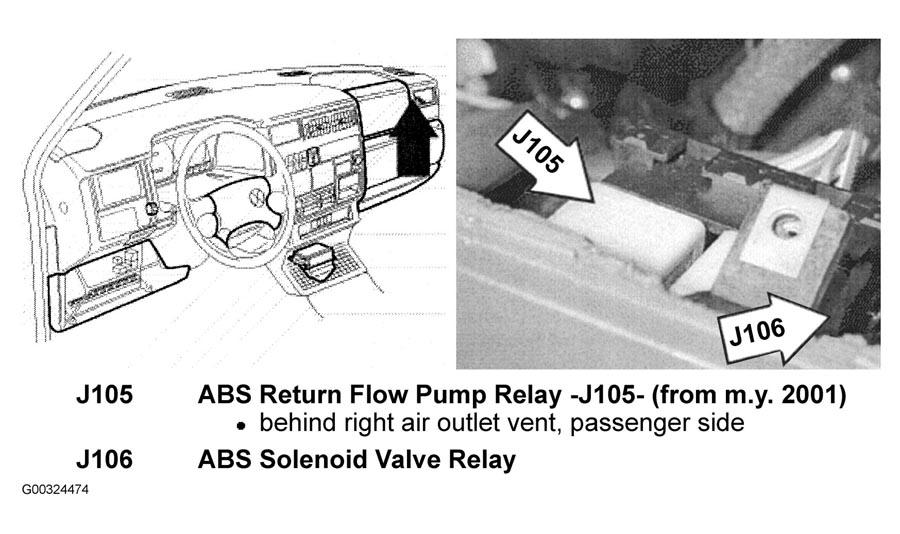

Fig 4: Locating ABS Return Flow Pump & ABS Solenoid Relays

Courtesy of VOLKSWAGEN UNITED STATES, INC.

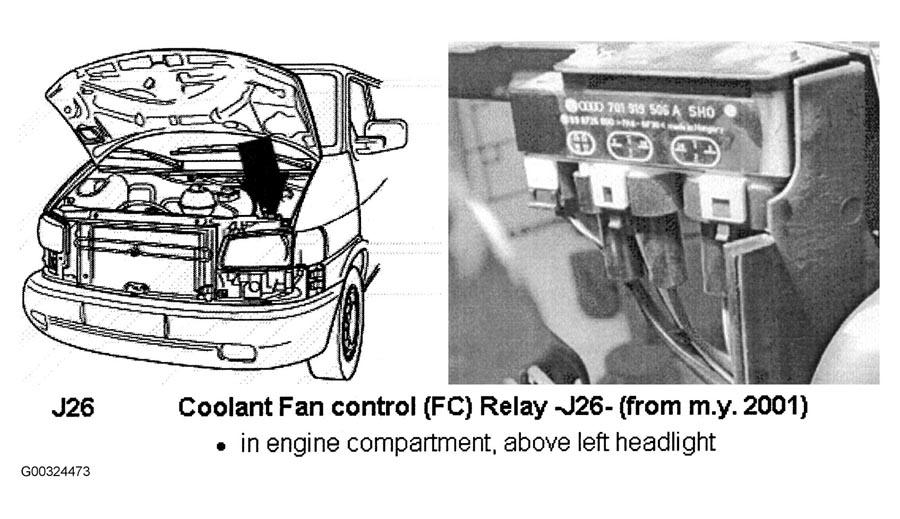

Fig 5: Locating Coolant Fan Control Relay

Courtesy of VOLKSWAGEN UNITED STATES, INC.

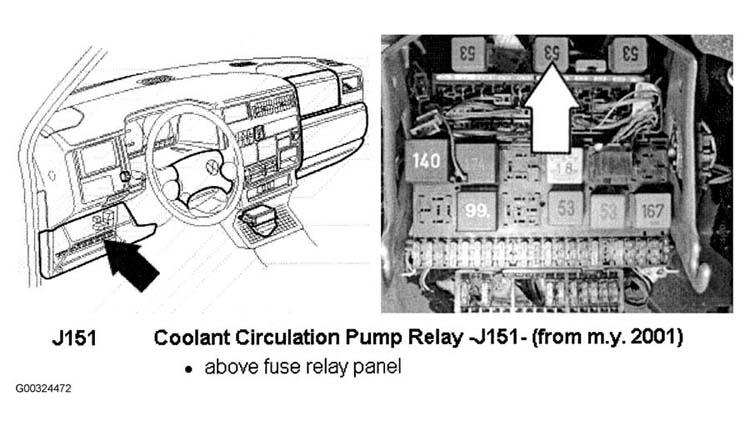

Fig 6: Locating Coolant Circulation Pump Relay

Courtesy of VOLKSWAGEN UNITED STATES, INC.

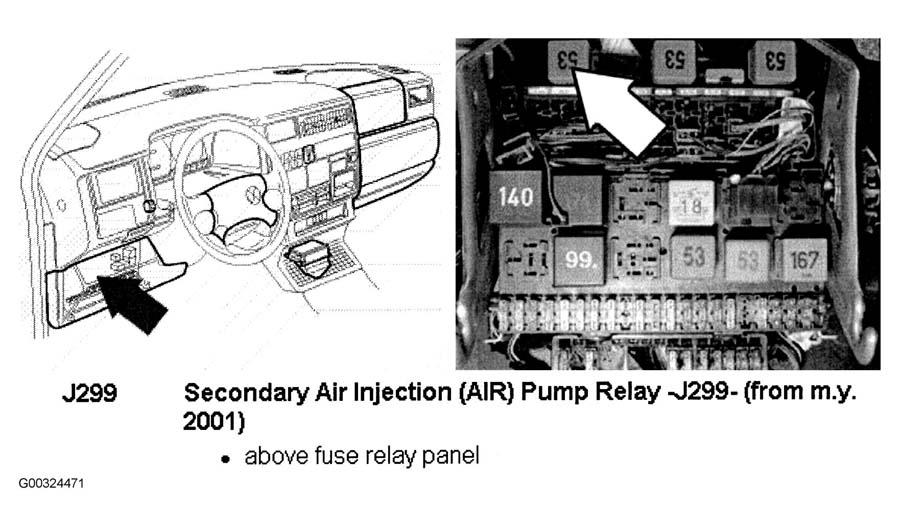

Fig 7: Locating Secondary Air Injection Pump Relay

Courtesy of VOLKSWAGEN UNITED STATES, INC.

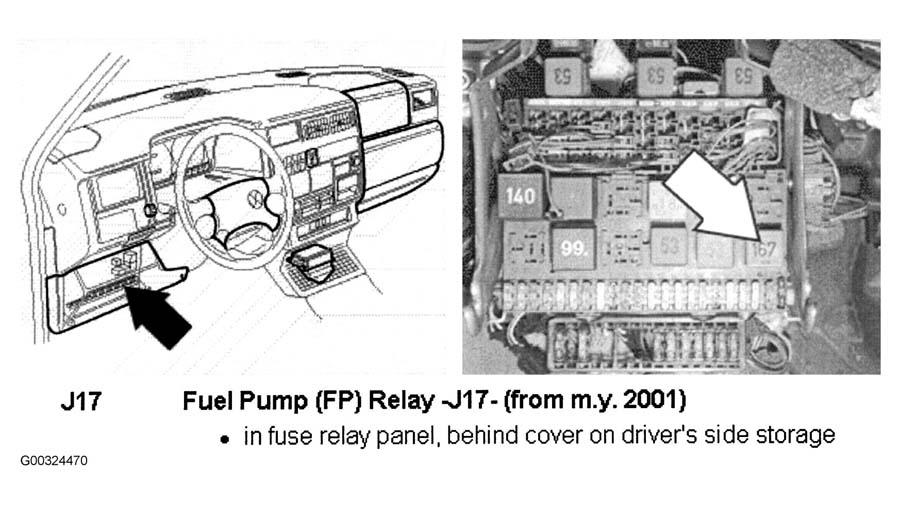

Fig 8: Locating Fuel Pump Relay

Courtesy of VOLKSWAGEN UNITED STATES, INC.
