Wiring Diagrams

NOTE: For more information on wiring, see POWER SEATS in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL.

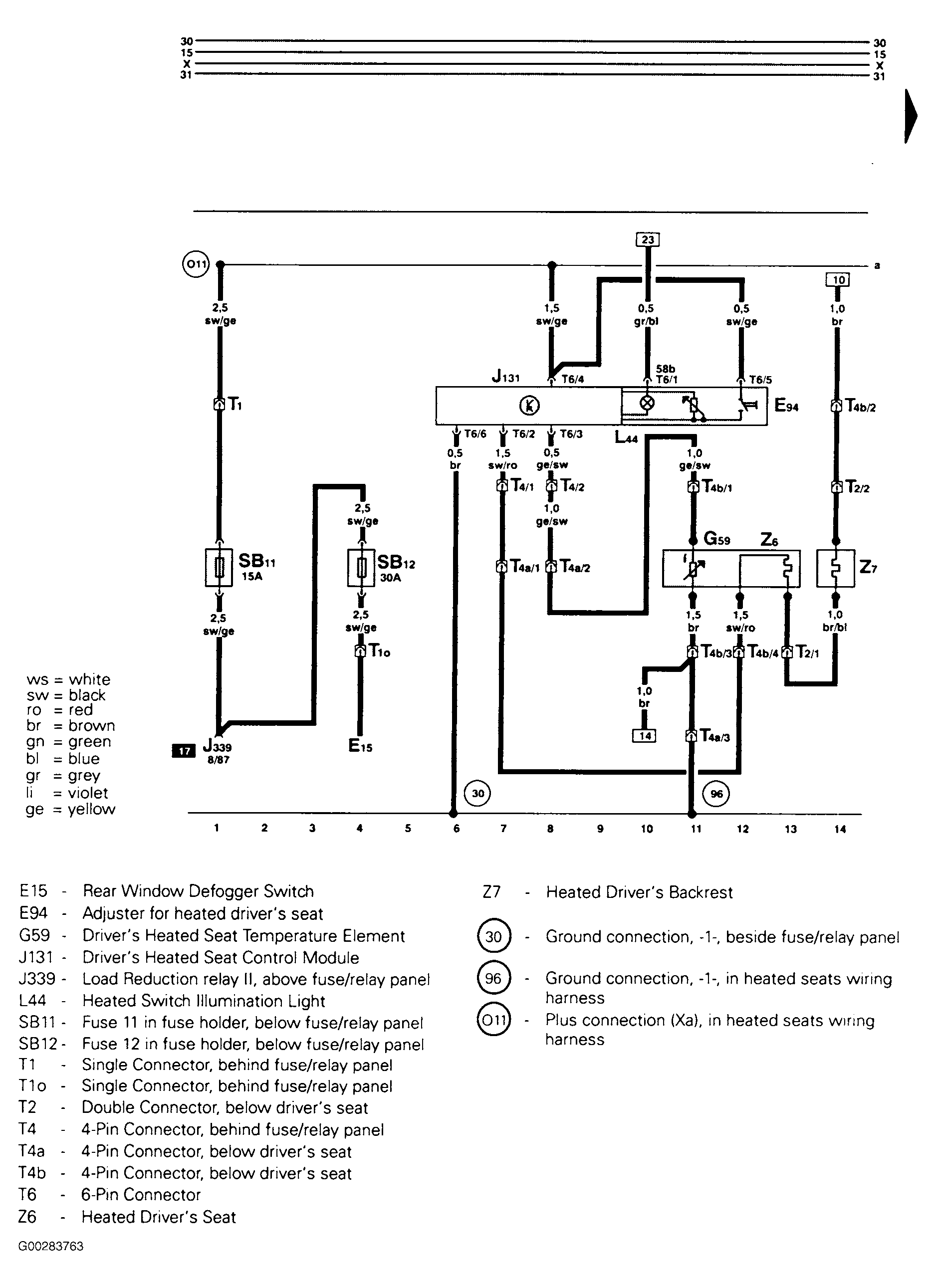

Fig 1: Driver Side Heated Seat Schematic & Terminal ID

Courtesy of VOLKSWAGEN UNITED STATES, INC.

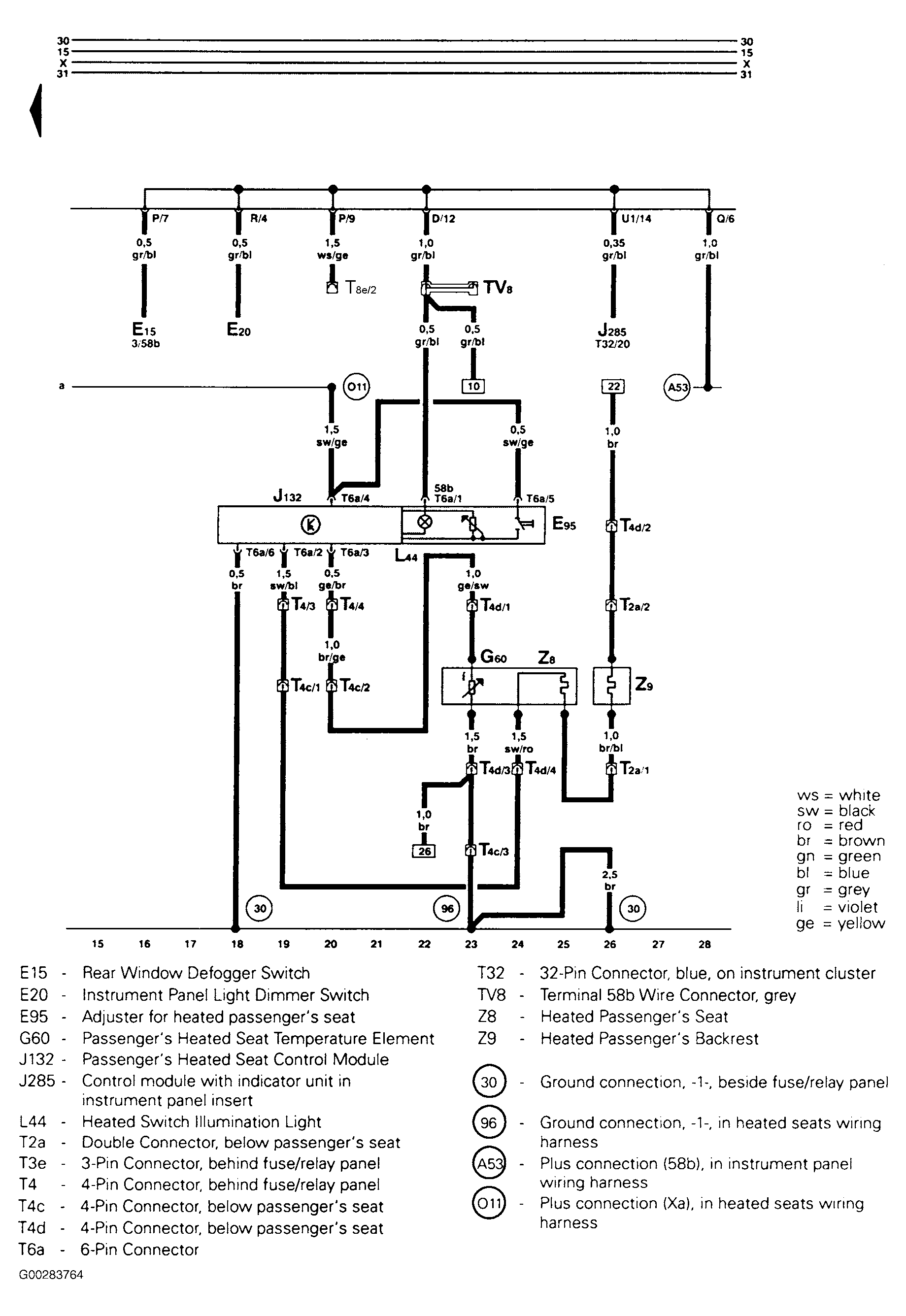

Fig 2: Passenger Side Heated Seat Schematic & Terminal ID

Courtesy of VOLKSWAGEN UNITED STATES, INC.
