Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Heating Elements Heated Seats | Under Seat & Backrest Cover |
| Heated Seat Control Modules | Part Of Switch/Thumbwheel Assembly On Dash |
| Heated Seat Control Module Ground | Behind Left Side Of Dash, Beside Fuse/Relay Panel |

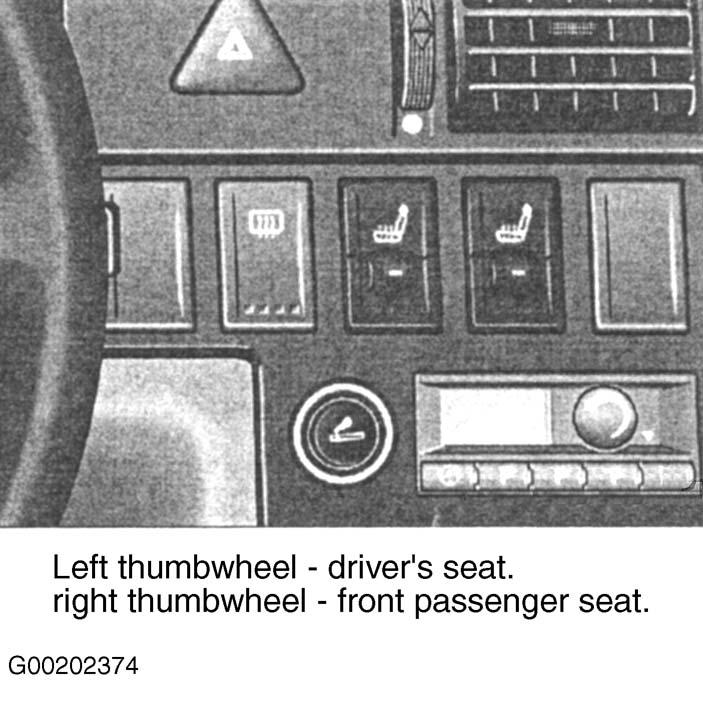

| Heated Seat Thumbwheel Switches | Figure On Instrument Panel |
| Load Reduction Relay | On Fuse/Relay Panel. See Fig 1 . |
NOTE:
Fuse/relay panel is located under driver's side of dash, behind storage compartment.
