Door Trim: Notes

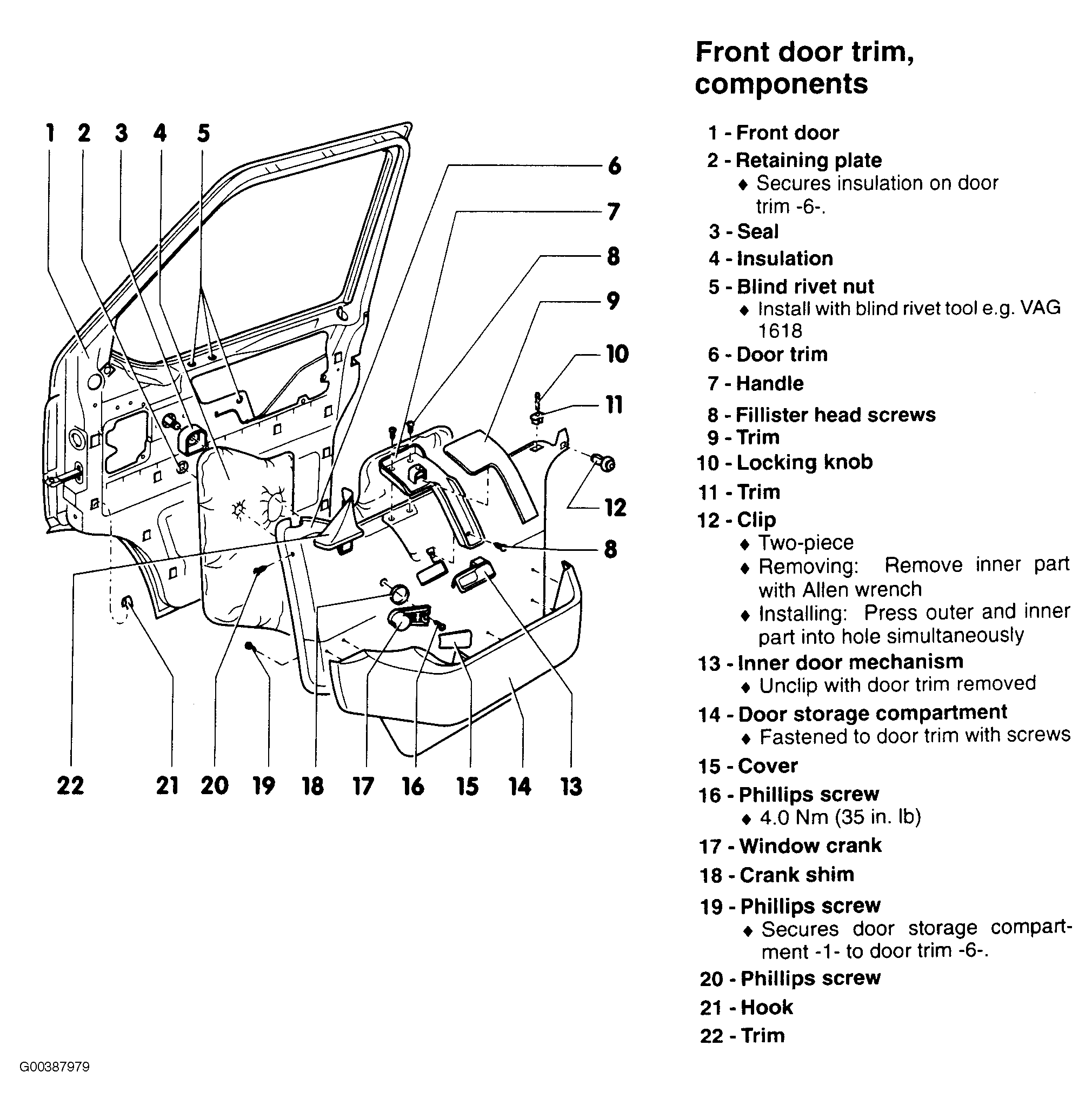

Fig 1: Exploded View Of Front Door Trim Components
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
