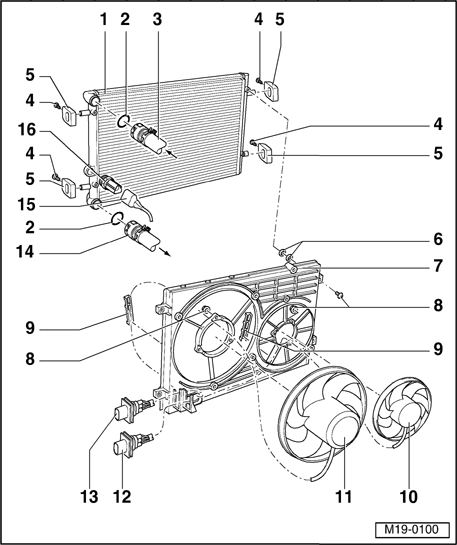

Components of cooling system, body side
1 - Radiator
- Removing and installing → Radiator and coolant fan, removing and installing
- After replacement also replace entire coolant
2 - O-ring
- Replace if damaged
3 - Upper coolant hose
- Secured to radiator with a quick release coupling
- Check seated securely
- Coolant hose connection diagram → Coolant hose connection diagram
4 - 15 Nm
5 - Bracket
- For radiator
- Observe installation position
6 - Washer
7 - Air ducting
8 - 5 Nm
9 - Retaining clip
- Check for secure seating
10 - Right coolant fan V35
- Checking → Coolant fan, checking
- Removing and installing → Radiator and coolant fan, removing and installing
11 - Coolant fan V7
- Checking → Coolant fan, checking
- Removing and installing → Radiator and coolant fan, removing and installing
12 - Connector
- For Right coolant fan V35
13 - Connector
- For Coolant fan V7
14 - Lower coolant hose
- Secured to radiator with a quick release coupling
- Check seated securely
- Coolant hose connection diagram → Coolant hose connection diagram
15 - Connector
- For Coolant Fan Control (FC) Thermal switch F18
16 - Coolant Fan Control (FC) Thermal switch F18 , 35 Nm
- For electric fan
- Switching temperatures:
1st speed -
On: 92...97 ° C, Off: 84...91 ° C
2nd. speed -
On: 99...105 ° C, Off: 91...98 ° C
