Engine, removing and installing

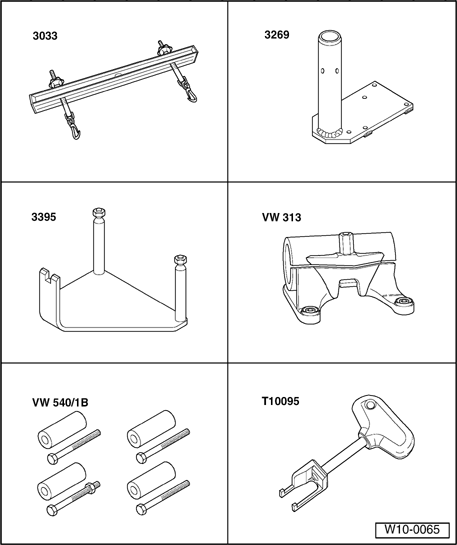

Fig 1: Identifying Special Tools - Engine, Removing And Installing (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Lifting tackle 3033
• Engine bracket 3269
• Engine bracket 3395
• Support clamp VW 313

• Supplementary set VW 540/1 B
• Puller T10095

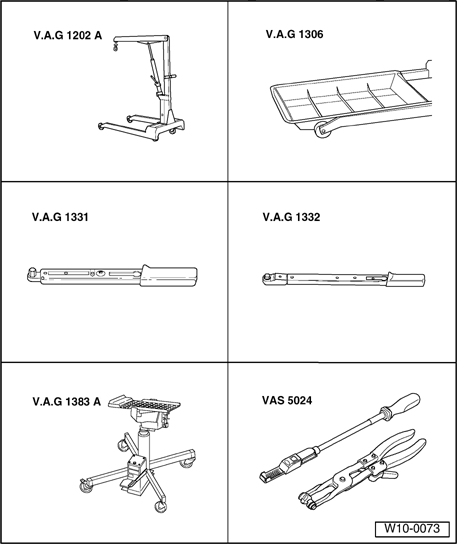

Fig 2: Identifying Special Tools - Engine, Removing And Installing (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

• Workshop crane VAG 1202 A
• Drip pan VAG 1306
• Torque wrench (5-50 Nm) VAG 1331
• Torque wrench (40-200 Nm) VAG 1332

• Engine and gearbox jack VAG 1383 A
• Assembly tool for spring-type clips VAS 5024
• Ladder VAS 5085
• Grease G 000 100  (models with manual transmission)

• Cable tie
